Description

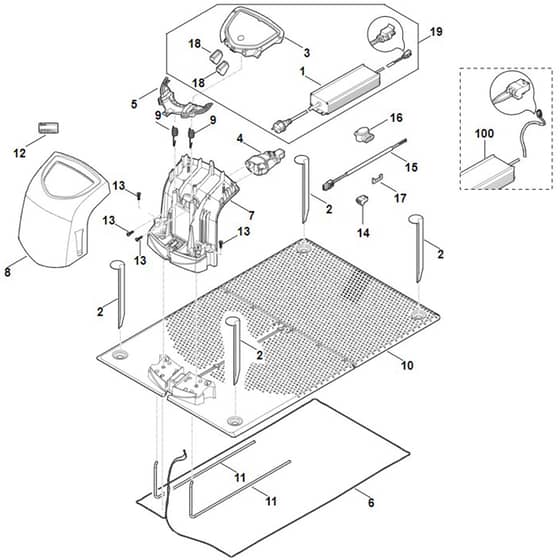

Viking MI632.0 C - Docking Station - Parts Diagram

Ref. Img. Part No. Details
  1 Power supply unit 230V GB
Power supply unit 230V GB
ST6309 400 8504 Out of stock
Power supply unit 230V GB
£203.29 £169.41

  2 Stake
Stake
ST6309 405 8710 Out of stock
Stake
£5.47 £4.56

  3 Electronics module
Electronics module
ST6309 430 1466 Out of stock
Electronics module
£201.18 £167.65

  4 Support assy.
Support assy.
ST6309 430 6815 Out of stock
Support assy.
£29.38 £24.48

  5 Cover
Cover
ST6309 432 3801 Out of stock
Cover
£15.00 £12.50

  6 Cable
Cable
ST6309 440 0345 Out of stock
Cable
£24.18 £20.15

  7 Housing
Housing
ST6309 701 1040 Out of stock
Housing
£35.41 £29.51

  7 Housing
Housing
ST6309 701 1041 Out of stock
Housing
£38.28 £31.90

  8 Cover
Cover
ST6309 701 3610 Out of stock
Cover
£30.48 £25.40

  9 Tension spring
Tension spring
ST6309 703 5100 Out of stock
Tension spring
£2.35 £1.96

  10 Plate
Plate
ST6309 703 8911 Out of stock
Plate
£146.11 £121.76

  10 Plate
Plate
ST6309 703 8910 Out of stock
Plate
£135.82 £113.18

  11 Bow
Bow
ST6309 763 0400 Out of stock
Bow
£18.23 £15.19

  12 Model plate ADO 600
Model plate ADO 600
ST6309 967 0130 Out of stock
Model plate ADO 600
£2.35 £1.96

  12 Warning sign with machine number
Warning sign with machine number
ST0000 967 3453 Out of stock
Warning sign with machine number
£5.52 £4.60

  13 Self-tapping screw P5x20
Self-tapping screw P5x20
ST9104 007 4289 In stock
Self-tapping screw P5x20
£0.95 £0.79

  14 Socket
Socket
ST6309 400 1600 Out of stock
Socket
£5.33 £4.44

  15 Connection set (secondary cable)
Connection set (secondary cable)
ST6309 007 1098 Out of stock
Connection set (secondary cable)
£22.57 £18.81

  17 Clip
Clip
ST6309 431 0200 Out of stock
Clip
£1.76 £1.47

  18 Grommet
Grommet
ST6309 432 9300 Out of stock
Grommet
£5.52 £4.60

  19 Docking station conversion kit (EUR) (Contains 1+3+18)
Docking station conversion kit (EUR) (Contains 1+3+18)
ST6309 007 1037 Out of stock
Docking station conversion kit (EUR) (Contains 1+3+18)
£241.42 £201.18

  100 Power supply unit 230V GB (Contains 14)
Power supply unit 230V GB (Contains 14)
ST6309 400 8521 Out of stock
Power supply unit 230V GB (Contains 14)
£185.24 £154.37
