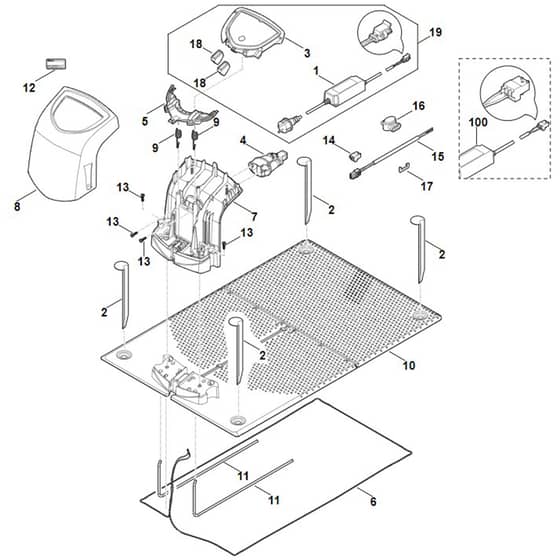

Viking MI422.0 - Docking Station - Parts Diagram

Description

	Part No.	Details
1	ST6301 400 8503 Out of stock	Power supply unit 230V GB	£169.42 £141.18
2	ST6309 405 8710 Out of stock	Stake	£5.47 £4.56
3	ST6309 430 1466 Out of stock	Electronics module	£201.18 £167.65
4	ST6309 430 6815 Out of stock	Support assy.	£29.38 £24.48
5	ST6309 432 3801 Out of stock	Cover	£15.00 £12.50
6	ST6309 440 0345 Out of stock	Cable	£24.18 £20.15
7	ST6309 701 1041 Out of stock	Housing	£38.28 £31.90
7	ST6309 701 1040 Out of stock	Housing	£35.41 £29.51
8	ST6309 701 3610 Out of stock	Cover	£30.48 £25.40
9	ST6309 703 5100 Out of stock	Tension spring	£2.35 £1.96
10	ST6309 703 8910 Out of stock	Plate	£135.82 £113.18
10	ST6309 703 8911 Out of stock	Plate	£146.11 £121.76
11	ST6309 763 0400 Out of stock	Bow	£18.23 £15.19
12	ST0000 967 3453 Out of stock	Warning sign with machine number	£5.52 £4.60
12	ST6301 967 0120 Out of stock	Model plate ADO 400	£2.35 £1.96
13	ST9104 007 4289 In stock	Self-tapping screw P5x20	£0.95 £0.79
14	ST6309 400 1600 Out of stock	Socket	£5.33 £4.44
15	ST6309 007 1098 Out of stock	Connection set (secondary cable)	£22.57 £18.81
17	ST6309 431 0200 Out of stock	Clip	£1.76 £1.47
18	ST6309 432 9300 Out of stock	Grommet	£5.52 £4.60
19	ST6301 007 1038 Out of stock	Docking station conversion kit (GB) (Contains 1+3+18)	£241.42 £201.18
100	ST6301 400 8500 Out of stock	Power supply unit 230V GB (Contains 14)	£154.39 £128.66
