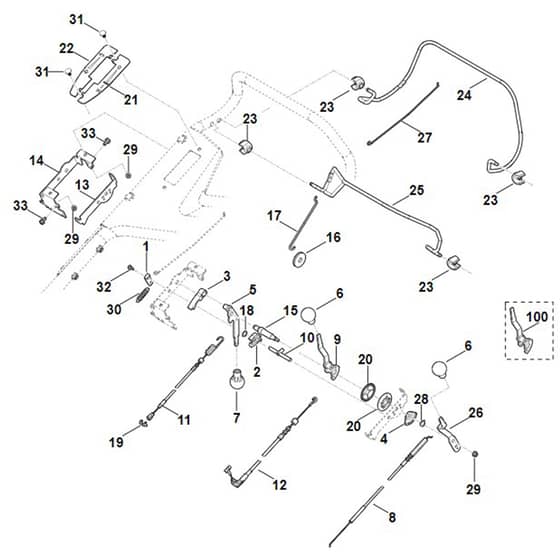

Viking MB756.0 YC - Handle Upper Part - Parts Diagram

Viking MB756.0 YC - Handle Upper Part - Parts Diagram
Viking MB756.0 YC - Handle Upper Part - Parts Diagram

Description

Viking MB756.0 YC - Handle Upper Part - Parts Diagram

Ref. Img. Part No. Details
  1 Lever
Lever
ST6375 162 5000 Out of stock
Lever
£10.49 £8.74

  2 Trigger interlock
Trigger interlock
ST6375 162 6700 Out of stock
Trigger interlock
£3.34 £2.78

  3 Detent lever
Detent lever
ST6375 162 9202 Out of stock
Detent lever
£14.26 £11.88

  4 Notched quadrant
Notched quadrant
ST6375 708 6220 Out of stock
Notched quadrant
£4.08 £3.40

  5 Switch lever
Switch lever
ST6378 760 1501 Out of stock
Switch lever
£19.07 £15.89

  6 Button
Button
ST6375 764 0700 Out of stock
Button
£13.64 £11.37

  7 Button
Button
ST6375 764 0710 Out of stock
Button
£13.64 £11.37

  8 Throttle cable
Throttle cable
ST6378 180 1100 Out of stock
Throttle cable
£41.52 £34.60

  10 Bolt
Bolt
ST6378 700 6701 Out of stock
Bolt
£17.16 £14.30

  11 Cable
Cable
ST6378 700 7521 Out of stock
Cable
£38.28 £31.90

  12 Cable
Cable
ST6378 700 7532 Out of stock
Cable
£34.26 £28.55

  12 Cable
Cable
ST6378 700 7533 Out of stock
Cable
£34.44 £28.70

  13 Support left
Support left
ST6378 703 6900 Out of stock
Support left
£24.05 £20.04

  14 Support right
Support right
ST6378 703 6906 Out of stock
Support right
£57.96 £48.30

  15 Axle
Axle
ST6378 704 0900 Out of stock
Axle
£12.90 £10.75

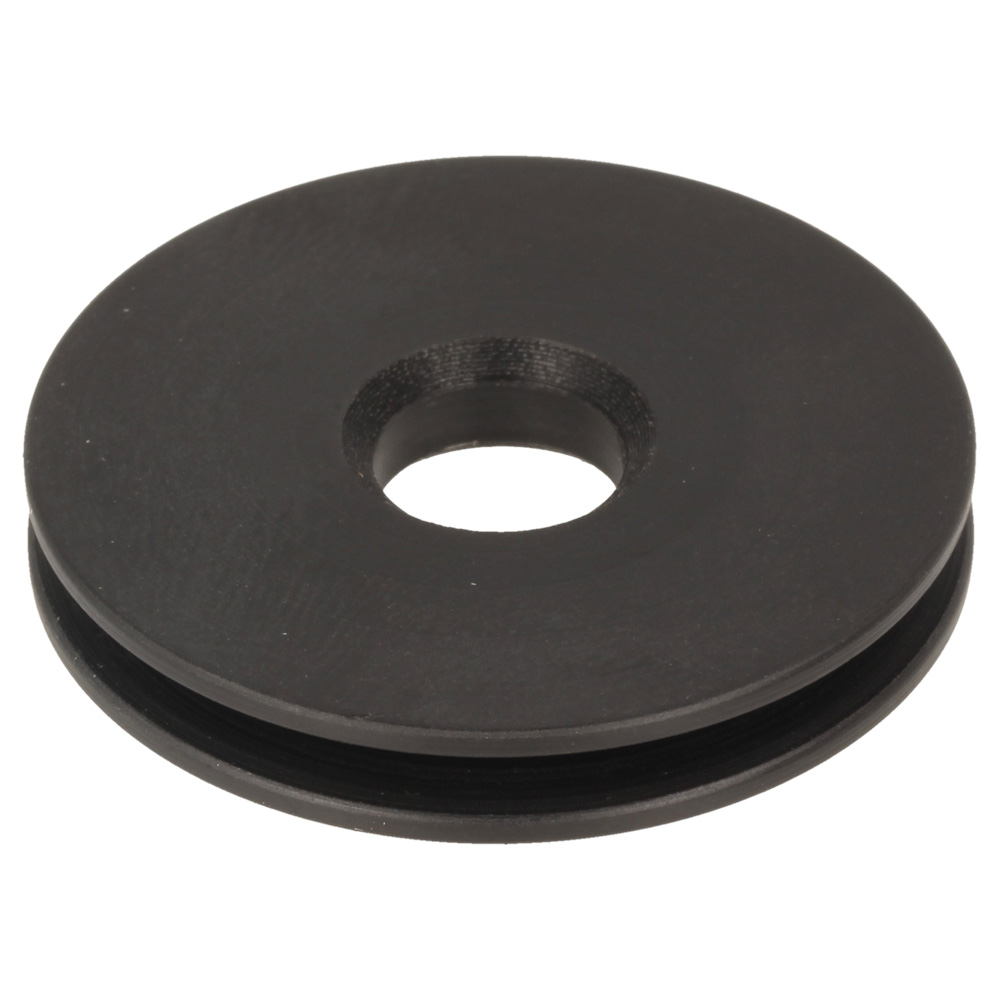

  16 Pulley
Pulley
ST6378 704 2300 Out of stock
Pulley
£5.58 £4.65

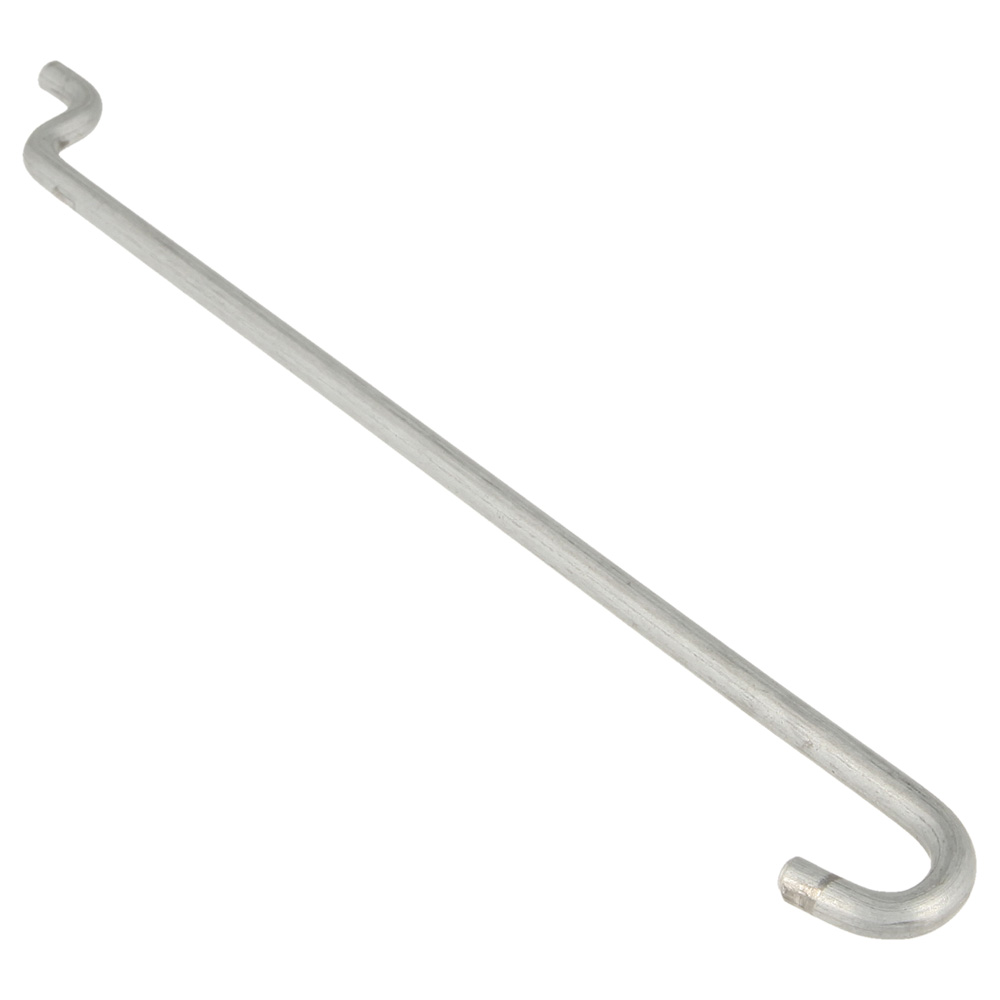

  17 Connecting piece
Connecting piece
ST6378 764 2010 Out of stock
Connecting piece
£4.85 £4.04

  18 Washer 8x14x10
Washer 8x14x10
ST9296 021 1541 Out of stock
Washer 8x14x10
£0.40 £0.33

  19 Bolt
Bolt
ST9666 003 9050 Out of stock
Bolt
£0.86 £0.72

  20 Notched quadrant
Notched quadrant
ST6378 708 6200 Out of stock
Notched quadrant
£3.37 £2.81

  21 Cover plate left
Cover plate left
ST6378 763 1600 Out of stock
Cover plate left
£16.49 £13.74

  22 Cover plate right
Cover plate right
ST6378 763 1605 Out of stock
Cover plate right
£15.73 £13.11

  23 Bearing piece
Bearing piece
ST6364 763 4000 Out of stock
Bearing piece
£3.56 £2.97

  24 Switch lever
Switch lever
ST6378 764 0201 Out of stock
Switch lever
£24.54 £20.45

  25 Switch lever
Switch lever
ST6378 760 1510 Out of stock
Switch lever
£25.03 £20.86

  26 Switch lever
Switch lever
ST6378 764 0220 Out of stock
Switch lever
£18.71 £15.59

  27 Tension spring
Tension spring
ST6378 764 1611 Out of stock
Tension spring
£5.47 £4.56

  28 Spring washer 10
Spring washer 10
ST9322 630 0200 Out of stock
Spring washer 10
£0.00 £0.00

  29 Hexagon nut M6
Hexagon nut M6
ST9216 261 0901 Out of stock
Hexagon nut M6
£0.61 £0.51

  30 Tension spring
Tension spring
ST6395 764 1600 Out of stock
Tension spring
£2.03 £1.69

  31 Flat head screw M6x16
Flat head screw M6x16
ST9027 068 1280 Out of stock
Flat head screw M6x16
£1.00 £0.83

  32 Self-tapping screw M5x12
Self-tapping screw M5x12
ST9039 488 0974 Out of stock
Self-tapping screw M5x12
£0.86 £0.72

  33 Self-tapping screw M6x12
Self-tapping screw M6x12
ST9039 488 0996 In stock
Self-tapping screw M6x12
£0.83 £0.69

  100 Adjusting lever
Adjusting lever
ST6378 700 2902 Out of stock
Adjusting lever
£23.16 £19.30
