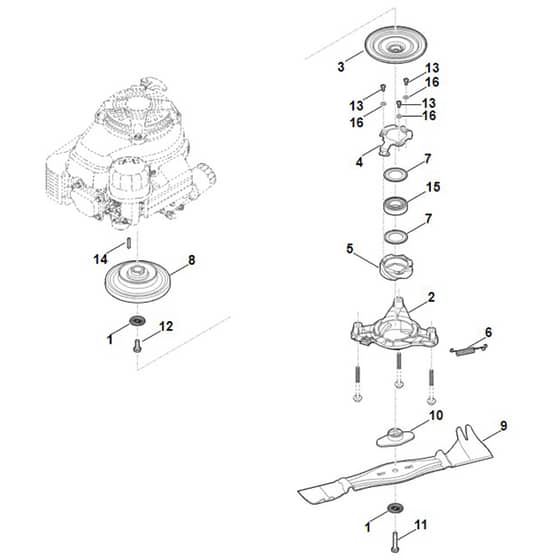

Viking MB756.0 YC - Blade, Blade Clutch - Parts Diagram

Viking MB756.0 YC - Blade, Blade Clutch - Parts Diagram
Viking MB756.0 YC - Blade, Blade Clutch - Parts Diagram

Description

Viking MB756.0 YC - Blade, Blade Clutch - Parts Diagram

Ref. Img. Part No. Details
  1 Washer
Washer
ST0000 702 6600 In stock
Washer
£4.40 £3.67

  2 Coupling flange
Coupling flange
ST6378 160 0500 Out of stock
Coupling flange
£60.56 £50.47

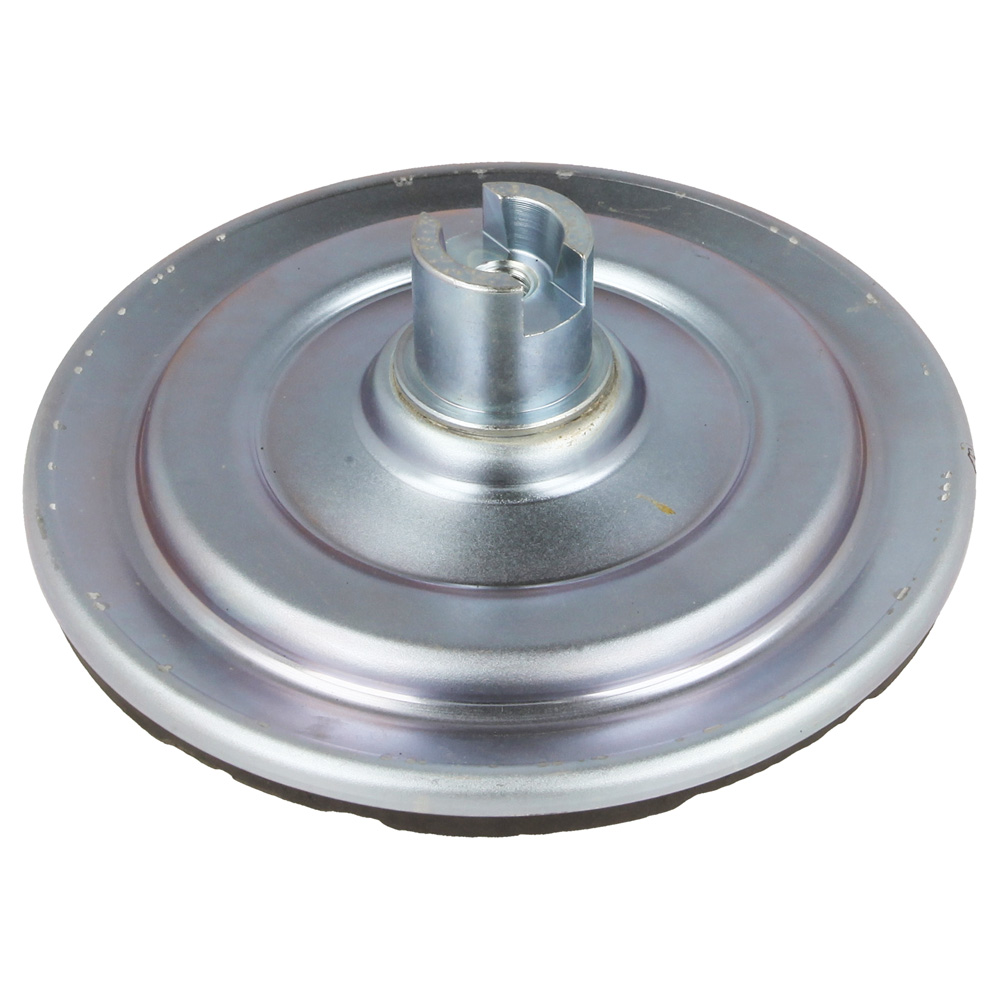

  3 Clutch drum
Clutch drum
ST6378 160 2901 Out of stock
Clutch drum
£114.35 £95.29

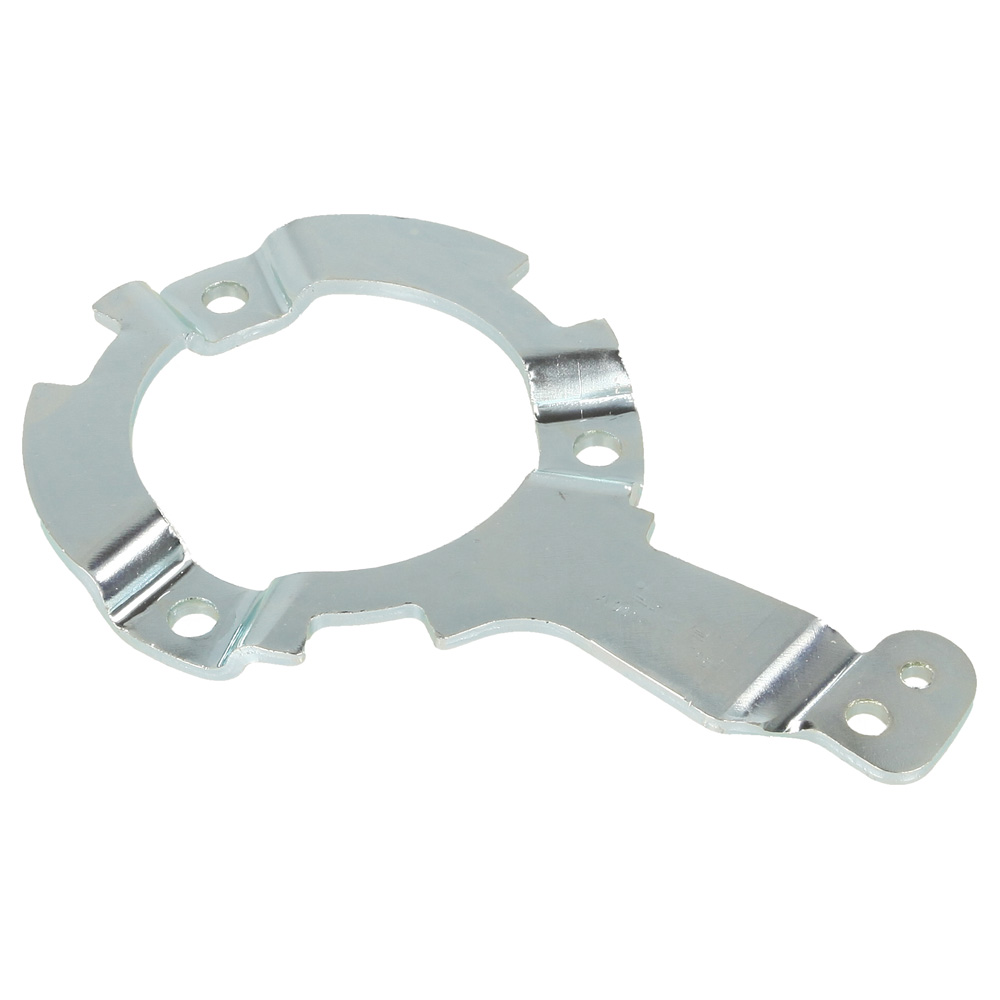

  4 Lever
Lever
ST6378 162 5000 Out of stock
Lever
£15.01 £12.51

  5 Cam
Cam
ST6378 162 5100 Out of stock
Cam
£27.13 £22.61

  6 Tension spring
Tension spring
ST6378 162 7900 Out of stock
Tension spring
£4.08 £3.40

  7 Washer
Washer
ST6378 162 8800 Out of stock
Washer
£3.48 £2.90

  8 V-belt pulley
V-belt pulley
ST6378 700 2500 Out of stock
V-belt pulley
£103.70 £86.42

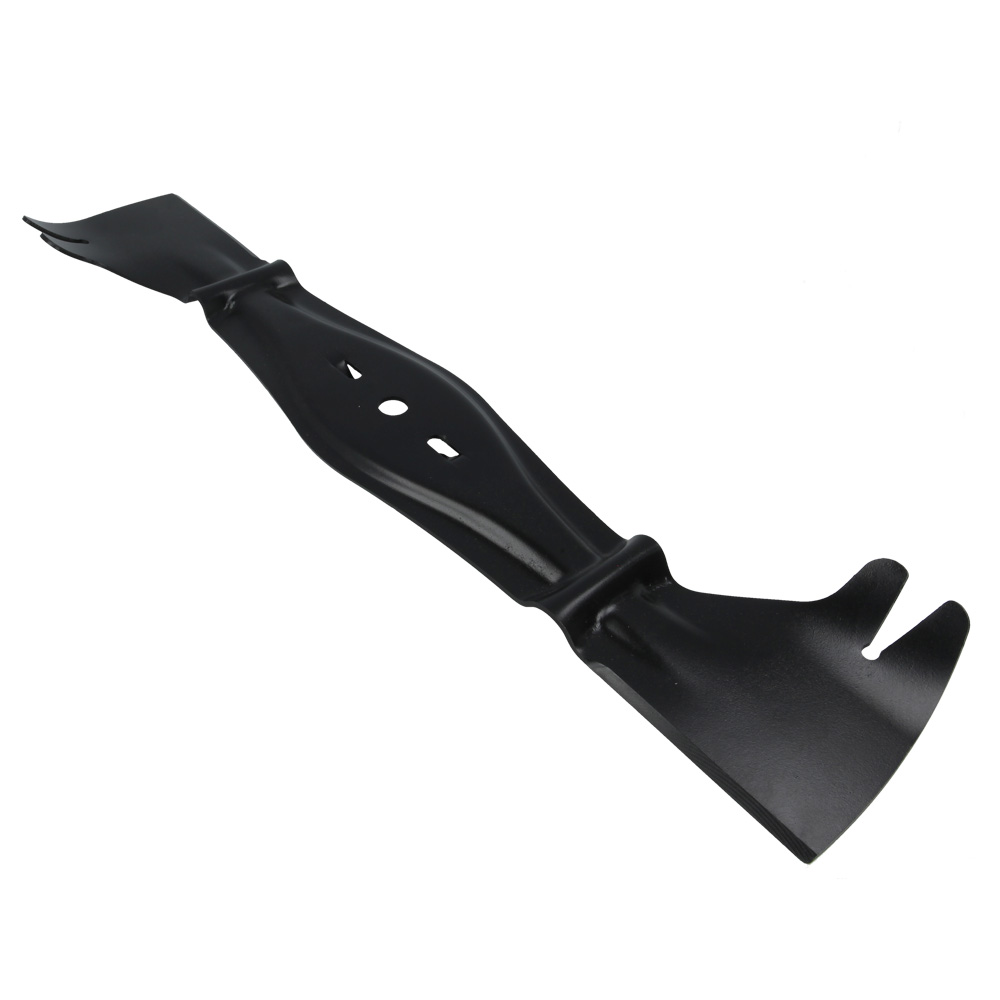

  9 Blade
Blade
ST6378 702 0100 Out of stock
Blade
£47.71 £39.76

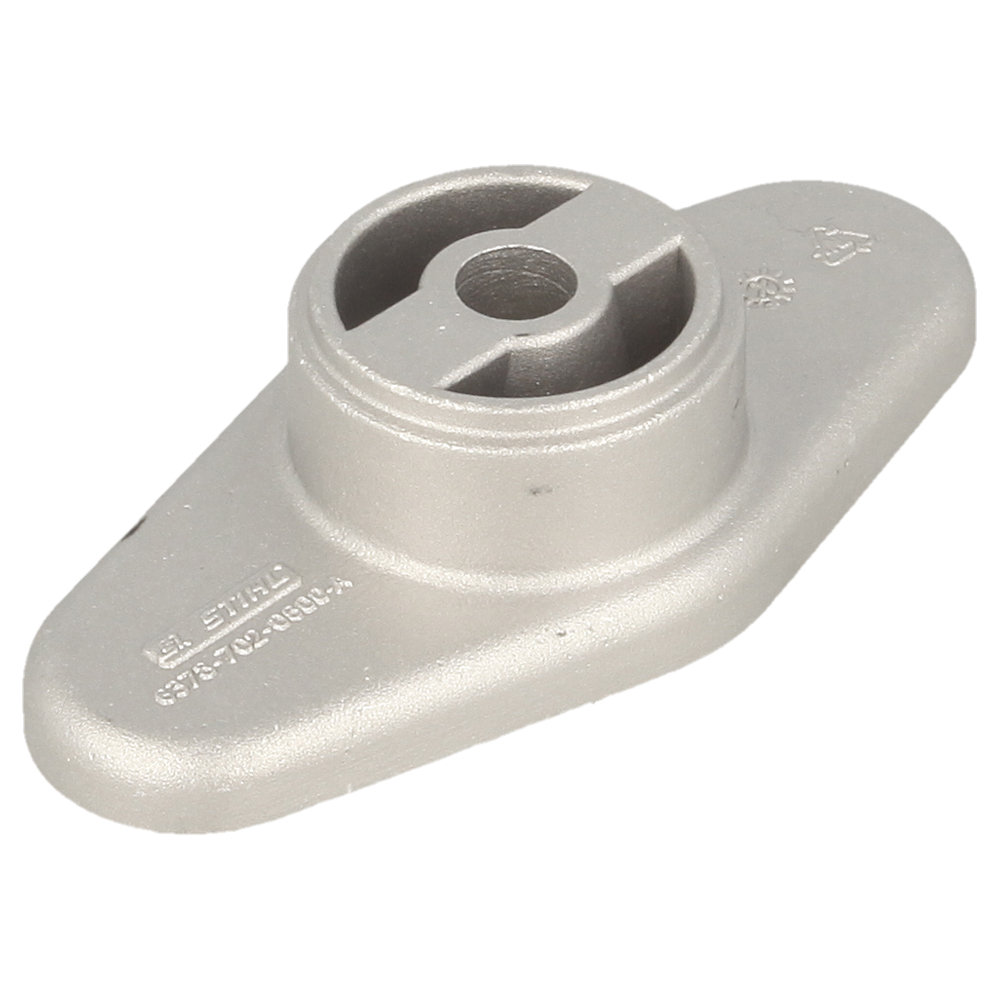

  10 Carrier
Carrier
ST6378 702 0600 Out of stock
Carrier
£10.69 £8.91

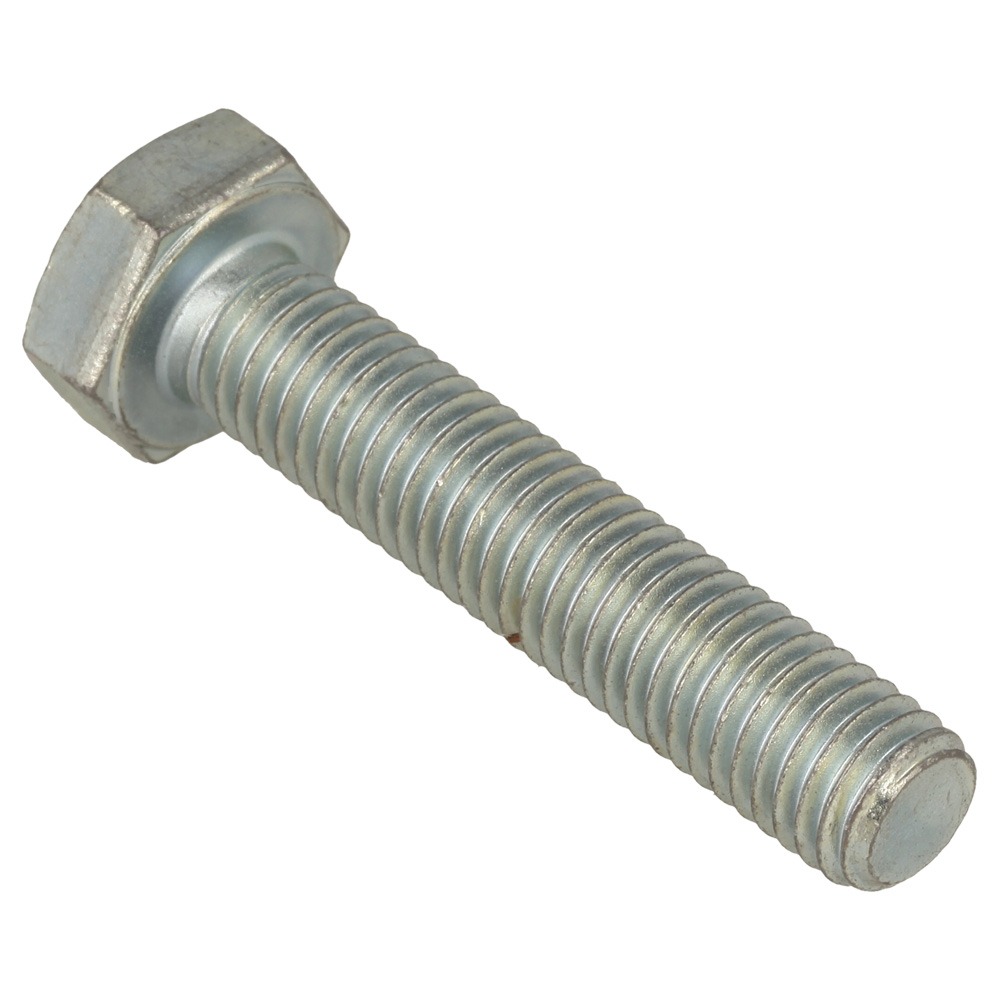

  11 Hexagon head screw M10x50
Hexagon head screw M10x50
ST9008 348 2460 Out of stock
Hexagon head screw M10x50
£2.23 £1.86

  11 Hexagon head screw M10x50
Hexagon head screw M10x50
ST9008 319 2460 Out of stock
Hexagon head screw M10x50
£2.23 £1.86

  12 Hexagon head screw 3/8
Hexagon head screw 3/8
ST9008 319 9066 Out of stock
Hexagon head screw 3/8"x1"
£1.48 £1.23

  13 Self-tapping screw M6x12
Self-tapping screw M6x12
ST9039 488 1266 Out of stock
Self-tapping screw M6x12
£0.86 £0.72

  14 Key 476x476x30
Key 476x476x30
ST9471 435 0861 Out of stock
Key 476x476x30
£1.87 £1.56

  15 Grooved ball bearing 6206-2RS1
Grooved ball bearing 6206-2RS1
ST9503 003 7073 Out of stock
Grooved ball bearing 6206-2RS1
£14.62 £12.18

  16 E-clip 6.4
E-clip 6.4
ST9460 624 4028 Out of stock
E-clip 6.4
£0.40 £0.33
