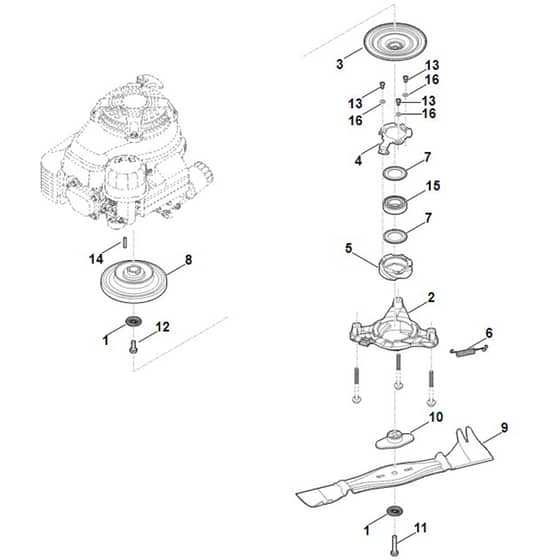

Viking MB756.0 GS - Blade, Blade Clutch - Parts Diagram

Name: Viking MB756.0 GS - Blade, Blade Clutch - Parts Diagram
SKU: mb756_0_gs_blade_blade_clutch-group
Price: 0.33 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Viking MB756.0 GS - Blade, Blade Clutch - Parts Diagram

Description

Viking MB756.0 GS - Blade, Blade Clutch - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	ST0000 702 6600 In stock	Washer	£4.40 £3.67
2	ST6378 160 0500 Out of stock	Coupling flange	£60.56 £50.47
3	ST6378 160 2901 Out of stock	Clutch drum	£114.35 £95.29
4	ST6378 162 5000 Out of stock	Lever	£15.01 £12.51
5	ST6378 162 5100 Out of stock	Cam	£27.13 £22.61
6	ST6378 162 7900 Out of stock	Tension spring	£4.08 £3.40
7	ST6378 162 8800 Out of stock	Washer	£3.48 £2.90
8	ST6378 700 2500 Out of stock	V-belt pulley	£103.70 £86.42
9	ST6378 702 0100 Out of stock	Blade	£47.71 £39.76
10	ST6378 702 0600 Out of stock	Carrier	£10.69 £8.91
11	ST9008 348 2460 Out of stock	Hexagon head screw M10x50	£2.23 £1.86
12	ST9008 319 9066 Out of stock	Hexagon head screw 3/8"x1"	£1.48 £1.23
13	ST9039 488 1266 Out of stock	Self-tapping screw M6x12	£0.86 £0.72
14	ST9471 435 0861 Out of stock	Key 476x476x30	£1.87 £1.56
15	ST9503 003 7073 Out of stock	Grooved ball bearing 6206-2RS1	£14.62 £12.18
16	ST9460 624 4028 Out of stock	E-clip 6.4	£0.40 £0.33
