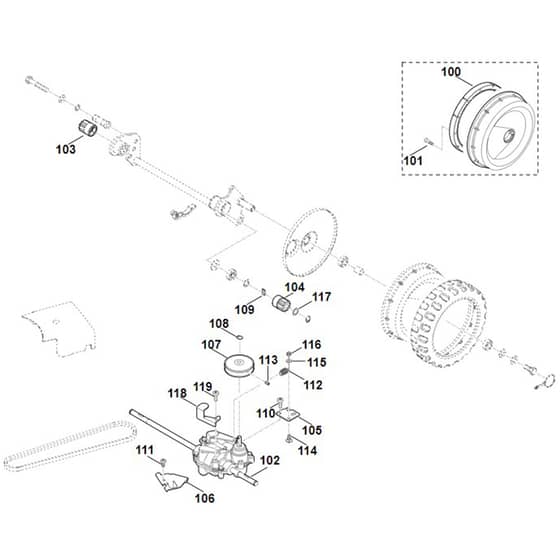

Viking MB750.1 KS - Shaft Drive 2 - Parts Diagram

Viking MB750.1 KS - Shaft Drive 2 - Parts Diagram

Description

Viking MB750.1 KS - Shaft Drive 2 - Parts Diagram

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	100		ST6375 764 1800 Out of stock	Ring gear		£19.51 £16.26
	101		ST9075 478 4119 Out of stock	Pan head screw IS D5x16		£1.00 £0.83
	103		ST6105 704 7400 In stock	Pinion		£15.73 £13.11
	104		ST6105 704 7410 In stock	Pinion		£15.97 £13.31
	107		ST6375 700 2501 Out of stock	V-belt pulley assy. (Contains 113)		£60.26 £50.22
	108		ST9455 621 0850 Out of stock	Circlip 10x1		£0.76 £0.63
	109		ST6103 704 8300 Out of stock	Freewheel key		£1.90 £1.58
	110		ST9075 478 4610 Out of stock	Pan head screw IS D6x16		£1.00 £0.83
	110		ST9039 488 0993 Out of stock	Self-tapping screw M6x16		£0.48 £0.40
	111		ST9039 488 0974 Out of stock	Self-tapping screw M5x12		£0.83 £0.69
	112		ST6105 708 0800 Out of stock	Tension spring		£1.50 £1.25
	113		ST9132 216 1250 Out of stock	Grub screw M6x10		£0.86 £0.72
	114		ST9027 318 1280 Out of stock	Flat head screw M6x16		£1.00 £0.83
	115		ST9291 020 0140 Out of stock	Washer 64		£0.40 £0.33
	116		ST9212 260 0900 Out of stock	Hexagon nut M6		£0.50 £0.42
	117		ST9296 021 1608 Out of stock	Washer 12x18x0.5		£0.61 £0.51
