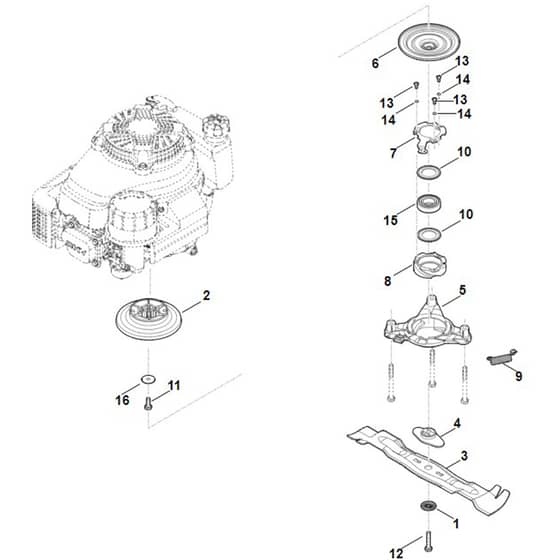

Viking MB655.3 YS - Blade, Blade Clutch - Parts Diagram

Name: Viking MB655.3 YS - Blade, Blade Clutch - Parts Diagram
SKU: mb655_3_ys_blade_blade_clutch-group
Price: 0.33 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Viking MB655.3 YS - Blade, Blade Clutch - Parts Diagram

Description

Viking MB655.3 YS - Blade, Blade Clutch - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	ST0000 702 6600 In stock	Washer	£4.40 £3.67
3	ST6374 702 0100 Out of stock	Multi-blade	£51.04 £42.53
4	ST6364 702 0600 Out of stock	Carrier	£9.89 £8.24
5	ST6378 160 0500 Out of stock	Coupling flange	£60.56 £50.47
6	ST6378 160 2905 Out of stock	Clutch drum lower part	£78.35 £65.29
7	ST6364 162 5000 Out of stock	Lever	£8.56 £7.13
8	ST6378 162 5100 Out of stock	Cam	£27.13 £22.61
9	ST6364 162 7900 Out of stock	Tension spring	£3.84 £3.20
10	ST6378 162 8800 Out of stock	Washer	£3.48 £2.90
11	ST9008 319 9066 Out of stock	Hexagon head screw 3/8"x1"	£1.48 £1.23
12	ST9008 348 2440 Out of stock	Hexagon head screw M10x40	£1.87 £1.56
13	ST9039 488 1266 Out of stock	Self-tapping screw M6x12	£0.86 £0.72
14	ST9460 624 4028 Out of stock	E-clip 6.4	£0.40 £0.33
15	ST9503 003 7073 Out of stock	Grooved ball bearing 6206-2RS1	£14.62 £12.18
16	ST9485 648 1694 Out of stock	Cup spring 28x102x125	£1.07 £0.89
