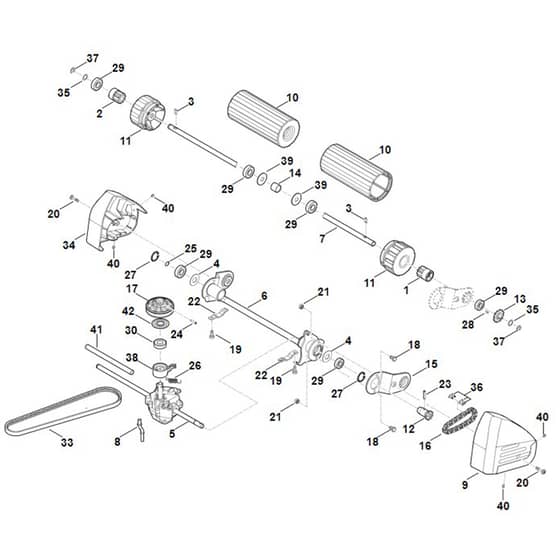

Viking MB655.1 RS - Shaft, Drive - Parts Diagram

Viking MB655.1 RS - Shaft, Drive - Parts Diagram
Viking MB655.1 RS - Shaft, Drive - Parts Diagram

Description

Viking MB655.1 RS - Shaft, Drive - Parts Diagram

Ref. Img. Part No. Details
  1 Pinion
Pinion
ST6105 704 7400 In stock
Pinion
£14.36 £11.97

  2 Pinion
Pinion
ST6105 704 7410 In stock
Pinion
£14.71 £12.26

  3 Freewheel key
Freewheel key
ST0000 704 8300 Out of stock
Freewheel key
£1.76 £1.47

  4 Protection disk
Protection disk
ST6103 704 7910 Out of stock
Protection disk
£1.24 £1.03

  5 Gear box (Contains 17+24+26+30+38)
Gear box (Contains 17+24+26+30+38)
ST6375 640 0103 Out of stock
Gear box (Contains 17+24+26+30+38)
£150.34 £125.28

  6 Axle
Axle
ST6375 700 2413 Out of stock
Axle
£76.64 £63.87

  7 Shaft
Shaft
ST6375 704 0501 Out of stock
Shaft
£72.54 £60.45

  8 Support
Support
ST6360 704 2702 Out of stock
Support
£5.69 £4.74

  9 Cover left (Contains 40)
Cover left (Contains 40)
ST6375 780 2081 Out of stock
Cover left (Contains 40)
£45.08 £37.57

  10 Roller (Contains 11)
Roller (Contains 11)
ST6375 780 4500 Out of stock
Roller (Contains 11)
£15.25 £12.71

  12 Spur sprocket
Spur sprocket
ST6375 760 1300 Out of stock
Spur sprocket
£31.10 £25.92

  13 Spur sprocket
Spur sprocket
ST6375 760 1310 Out of stock
Spur sprocket
£20.70 £17.25

  14 Distance sleeve
Distance sleeve
ST6340 764 2821 Out of stock
Distance sleeve
£2.50 £2.08

  15 Swivel lever
Swivel lever
ST6340 780 0300 Out of stock
Swivel lever
£46.08 £38.40

  16 Roller chain (Contains 36)
Roller chain (Contains 36)
ST6375 780 0601 Out of stock
Roller chain (Contains 36)
£30.37 £25.31

  17 V-belt pulley assy. (Contains 30+38+42)
V-belt pulley assy. (Contains 30+38+42)
ST6360 700 2513 Out of stock
V-belt pulley assy. (Contains 30+38+42)
£39.28 £32.73

  18 Hexagon head screw M6x16
Hexagon head screw M6x16
ST9008 318 1280 Out of stock
Hexagon head screw M6x16
£1.00 £0.83

  19 Pan head screw IS D6x16
Pan head screw IS D6x16
ST9075 478 4610 Out of stock
Pan head screw IS D6x16
£1.00 £0.83

  20 Self-tapping screw M5x20
Self-tapping screw M5x20
ST9039 499 0990 Out of stock
Self-tapping screw M5x20
£1.00 £0.83

  21 Lock nut M6
Lock nut M6
ST9214 263 0900 Out of stock
Lock nut M6
£0.40 £0.33

  22 Axle guard
Axle guard
ST6375 763 2810 Out of stock
Axle guard
£3.37 £2.81

  23 Roll pin 4x20
Roll pin 4x20
ST9384 620 2130 Out of stock
Roll pin 4x20
£0.64 £0.53

  24 Roll pin 5x20
Roll pin 5x20
ST9380 620 2620 Out of stock
Roll pin 5x20
£0.64 £0.53

  25 Circlip 12x1
Circlip 12x1
ST9455 621 1130 Out of stock
Circlip 12x1
£0.60 £0.50

  26 Tension spring
Tension spring
ST6360 643 3800 Out of stock
Tension spring
£1.63 £1.36

  27 Circlip 28x1.2
Circlip 28x1.2
ST9456 621 3100 In stock
Circlip 28x1.2
£1.19 £0.99

  28 Key 4x4x10
Key 4x4x10
ST9470 435 0510 Out of stock
Key 4x4x10
£0.64 £0.53

  29 Grooved ball bearing S6001-2RS
Grooved ball bearing S6001-2RS
ST9503 421 5132 Out of stock
Grooved ball bearing S6001-2RS
£5.69 £4.74

  33 V-belt
V-belt
ST6360 704 2111 In stock
V-belt
£21.00 £17.50

  34 Cover right (Contains 40)
Cover right (Contains 40)
ST6375 780 2086 Out of stock
Cover right (Contains 40)
£47.08 £39.23

  35 Washer 12x18x0.5
Washer 12x18x0.5
ST9296 021 1608 Out of stock
Washer 12x18x0.5
£0.61 £0.51

  36 Chain connector 3/8
Chain connector 3/8
ST0000 881 3895 Out of stock
Chain connector 3/8"x7/32"
£4.34 £3.62

  37 E-clip 10
E-clip 10
ST9460 624 1001 In stock
E-clip 10
£0.37 £0.31

  39 Washer
Washer
ST6340 704 1100 Out of stock
Washer
£1.24 £1.03

  40 Blind rivet 4x8
Blind rivet 4x8
ST9438 424 3165 Out of stock
Blind rivet 4x8
£1.00 £0.83

  41 Tube
Tube
ST6375 706 3300 Out of stock
Tube
£10.40 £8.67
