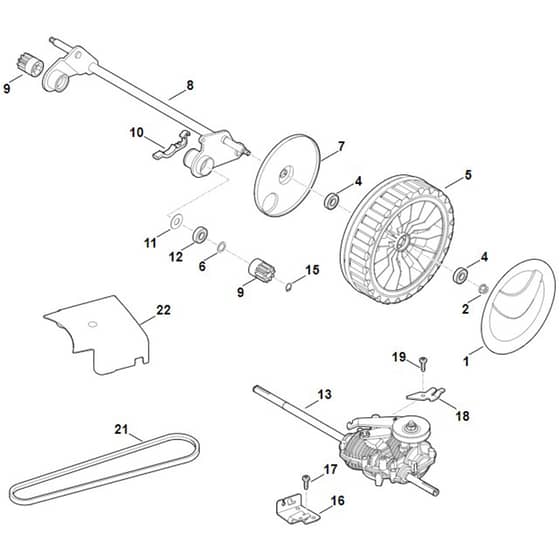

Viking MB655.0 KS - Shaft, Drive - Parts Diagram

Viking MB655.0 KS - Shaft, Drive - Parts Diagram
Viking MB655.0 KS - Shaft, Drive - Parts Diagram

Description

Viking MB655.0 KS - Shaft, Drive - Parts Diagram

Ref. Img. Part No. Details
  1 Wheel cap
Wheel cap
ST6375 704 0310 Out of stock
Wheel cap
£1.48 £1.23

  0 Conversion kit (Gear box) (Contains A 9+10 + F 9+13+16-19)
Conversion kit (Gear box) (Contains A 9+10 + F 9+13+16-19)
ST6375 007 1081 Out of stock
Conversion kit (Gear box) (Contains A 9+10 + F 9+13+16-19)
£207.25 £172.71

  1 Wheel cap
Wheel cap
ST6375 704 0311 Out of stock
Wheel cap
£16.09 £13.41

  2 Hexagon nut M8
Hexagon nut M8
ST9216 261 1100 Out of stock
Hexagon nut M8
£0.86 £0.72

  5 Wheel assy. 230 (Contains 4+7)
Wheel assy. 230 (Contains 4+7)
ST6375 700 0402 Out of stock
Wheel assy. 230 (Contains 4+7)
£50.69 £42.24

  6 Washer 12x18x0.5
Washer 12x18x0.5
ST9296 021 1608 Out of stock
Washer 12x18x0.5
£0.61 £0.51

  7 Cover
Cover
ST6375 704 3611 Out of stock
Cover
£13.27 £11.06

  8 Axle
Axle
ST6375 700 2411 Out of stock
Axle
£56.44 £47.03

  9 Pinion
Pinion
ST0000 704 7400 Out of stock
Pinion
£15.14 £12.62

  10 Axle guard
Axle guard
ST6375 763 2800 Out of stock
Axle guard
£2.87 £2.39

  11 Protection disk
Protection disk
ST6103 704 7910 Out of stock
Protection disk
£1.24 £1.03

  12 Grooved ball bearing 6001-2TRS
Grooved ball bearing 6001-2TRS
ST9503 003 5297 Out of stock
Grooved ball bearing 6001-2TRS
£5.36 £4.47

  12 Grooved ball bearing 6001-2Z
Grooved ball bearing 6001-2Z
ST9503 003 5151 Out of stock
Grooved ball bearing 6001-2Z
£19.44 £16.20

  13 Gear box
Gear box
ST6375 640 0190 Out of stock
Gear box
£230.88 £192.40

  15 Circlip 12x1
Circlip 12x1
ST9455 621 1130 Out of stock
Circlip 12x1
£0.60 £0.50

  16 Counterholder
Counterholder
ST6378 764 6710 Out of stock
Counterholder
£12.90 £10.75

  17 Screw IS AP6x20
Screw IS AP6x20
ST9076 478 4430 Out of stock
Screw IS AP6x20
£1.00 £0.83

  18 Support
Support
ST6375 704 2730 Out of stock
Support
£3.37 £2.81

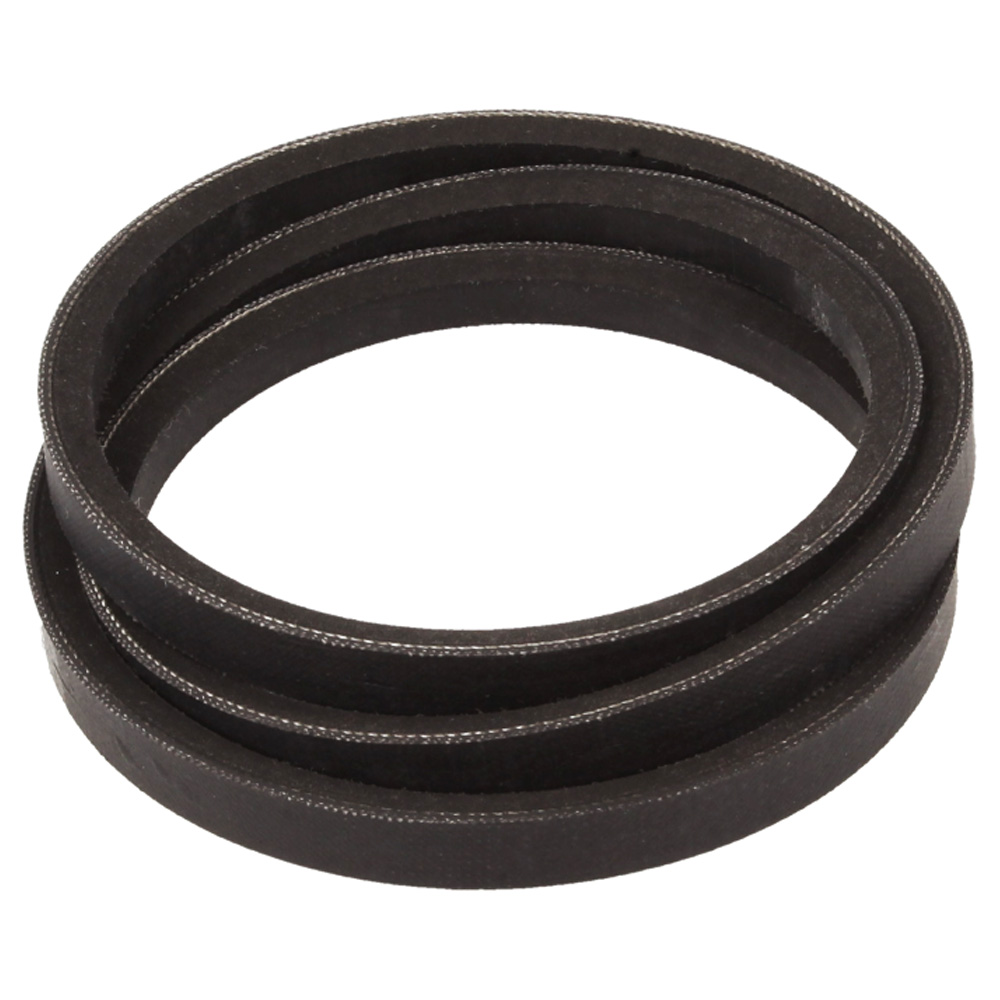

  21 V-belt
V-belt
ST6375 704 2100 Out of stock
V-belt
£25.10 £20.92

  22 Cover
Cover
ST6375 706 0740 Out of stock
Cover
£6.49 £5.41
