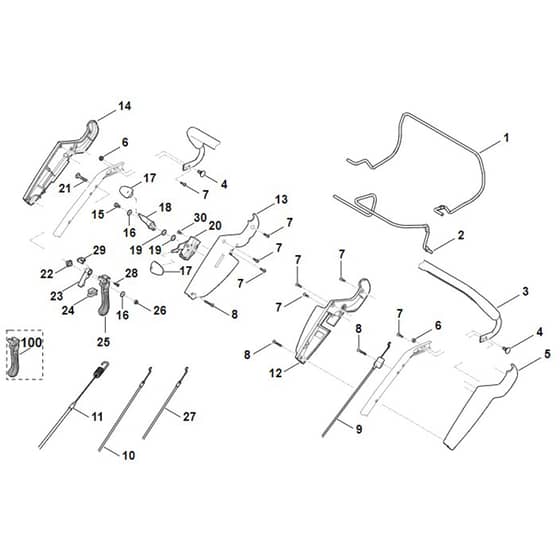

Viking MB655.0 KS - Handle Upper Part - Parts Diagram

Viking MB655.0 KS - Handle Upper Part - Parts Diagram
Viking MB655.0 KS - Handle Upper Part - Parts Diagram

Description

Viking MB655.0 KS - Handle Upper Part - Parts Diagram

Ref. Img. Part No. Details
  1 Switch lever
Switch lever
ST6375 764 0210 Out of stock
Switch lever
£26.40 £22.00

  2 Switch lever assy.
Switch lever assy.
ST6375 760 1500 In stock
Switch lever assy.
Was £24.05 £20.04 Special Price £14.84 £12.37

  3 Upper handlebar
Upper handlebar
ST6375 780 3000 Out of stock
Upper handlebar
£40.78 £33.98

  4 Flat head screw M6x16
Flat head screw M6x16
ST9027 318 1280 Out of stock
Flat head screw M6x16
£1.00 £0.83

  5 Housing half
Housing half
ST6375 764 0601 Out of stock
Housing half
£12.65 £10.54

  6 Hexagon nut M6
Hexagon nut M6
ST9212 260 0900 Out of stock
Hexagon nut M6
£0.48 £0.40

  7 Self-tapping screw P5x16
Self-tapping screw P5x16
ST9104 007 4270 In stock
Self-tapping screw P5x16
£0.97 £0.81

  8 Self-tapping screw P5x30
Self-tapping screw P5x30
ST9104 007 4294 Out of stock
Self-tapping screw P5x30
£1.13 £0.94

  9 Cable
Cable
ST6375 700 7510 Out of stock
Cable
£20.18 £16.82

  9 Cable
Cable
ST6375 700 7511 Out of stock
Cable
£20.18 £16.82

  10 Cable
Cable
ST6375 700 7501 Out of stock
Cable
£19.20 £16.00

  10 Cable
Cable
ST6375 700 7500 Out of stock
Cable
£20.56 £17.13

  11 Cable
Cable
ST6375 700 7530 Out of stock
Cable
£34.69 £28.91

  12 Housing half
Housing half
ST6375 764 0615 Out of stock
Housing half
£13.64 £11.37

  14 Housing half
Housing half
ST6375 182 1300 Out of stock
Housing half
£12.65 £10.54

  15 Self-tapping screw M5x12
Self-tapping screw M5x12
ST9039 488 0974 Out of stock
Self-tapping screw M5x12
£0.86 £0.72

  15 Self-tapping screw M5x16
Self-tapping screw M5x16
ST9039 488 0984 Out of stock
Self-tapping screw M5x16
£1.00 £0.83

  16 Washer 53
Washer 53
ST9307 020 0120 Out of stock
Washer 53
£0.40 £0.33

  17 Handle
Handle
ST0000 989 8101 Out of stock
Handle
£5.69 £4.74

  18 Adjusting lever
Adjusting lever
ST6375 182 2900 Out of stock
Adjusting lever
£14.26 £11.88

  19 Cup spring A16
Cup spring A16
ST9486 648 0300 Out of stock
Cup spring A16
£0.64 £0.53

  20 Throttle lever assy.
Throttle lever assy.
ST6375 180 1500 Out of stock
Throttle lever assy.
£19.07 £15.89

  21 Flat head screw M5x35
Flat head screw M5x35
ST9027 068 1081 Out of stock
Flat head screw M5x35
£1.24 £1.03

  22 Bearing bushing
Bearing bushing
ST6375 162 3700 Out of stock
Bearing bushing
£7.43 £6.19

  23 Detent lever
Detent lever
ST6375 162 9200 Out of stock
Detent lever
£2.47 £2.06

  23 Detent lever
Detent lever
ST6375 162 9202 Out of stock
Detent lever
£14.26 £11.88

  24 Trigger interlock
Trigger interlock
ST6375 162 6700 Out of stock
Trigger interlock
£3.34 £2.78

  25 Switch lever assy. (Contains 28+29)
Switch lever assy. (Contains 28+29)
ST6375 760 1590 Out of stock
Switch lever assy. (Contains 28+29)
£16.22 £13.52

  26 Hexagon nut M5
Hexagon nut M5
ST9212 260 0705 Out of stock
Hexagon nut M5
£0.40 £0.33

  28 Self-tapping screw P4x16
Self-tapping screw P4x16
ST9104 003 8734 Out of stock
Self-tapping screw P4x16
£0.86 £0.72

  29 Reinforcement
Reinforcement
ST6375 704 1900 Out of stock
Reinforcement
£2.60 £2.17

  30 Self-tapping screw P45x9
Self-tapping screw P45x9
ST9104 003 8760 Out of stock
Self-tapping screw P45x9
£0.86 £0.72
