Viking MB655.0 KS - Frame, Height Adjustment - Parts Diagram

Viking MB655.0 KS - Frame, Height Adjustment - Parts Diagram
Viking MB655.0 KS - Frame, Height Adjustment - Parts Diagram

Description

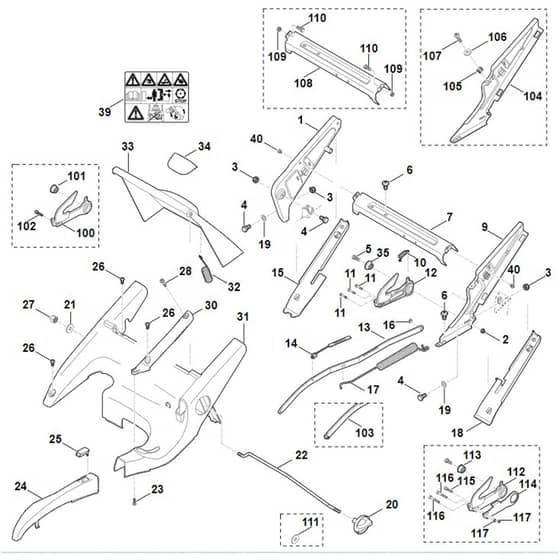

Viking MB655.0 KS - Frame, Height Adjustment - Parts Diagram

Ref. Img. Part No. Details
  1 Bracket right
Bracket right
ST6375 760 4205 Out of stock
Bracket right
£60.94 £50.78

  3 Hexagon nut M8
Hexagon nut M8
ST9212 260 1100 Out of stock
Hexagon nut M8
£0.61 £0.51

  4 Hexagon head screw M8x16
Hexagon head screw M8x16
ST9008 318 1780 Out of stock
Hexagon head screw M8x16
£1.13 £0.94

  6 Self-tapping screw M8x12
Self-tapping screw M8x12
ST9039 488 1550 Out of stock
Self-tapping screw M8x12
£0.91 £0.76

  6 Self-tapping screw M8x14
Self-tapping screw M8x14
ST9039 488 1502 Out of stock
Self-tapping screw M8x14
£1.00 £0.83

  7 Strud
Strud
ST6375 763 4501 Out of stock
Strud
£61.96 £51.63

  9 Bracket left (Contains 28)
Bracket left (Contains 28)
ST6375 760 4291 Out of stock
Bracket left (Contains 28)
£65.09 £54.24

  10 Tension spring
Tension spring
ST6375 703 5111 Out of stock
Tension spring
£2.35 £1.96

  13 Translation lever
Translation lever
ST6375 780 0401 Out of stock
Translation lever
£54.74 £45.62

  14 Pointer
Pointer
ST6375 763 2000 Out of stock
Pointer
£1.87 £1.56

  15 Cover
Cover
ST6375 706 0730 Out of stock
Cover
£8.45 £7.04

  16 E-clip 5
E-clip 5
ST9460 624 0500 Out of stock
E-clip 5
£0.48 £0.40

  17 Tension spring
Tension spring
ST6375 703 5100 Out of stock
Tension spring
£31.80 £26.50

  18 Cover
Cover
ST6375 706 0720 Out of stock
Cover
£9.43 £7.86

  19 Washer 84
Washer 84
ST9291 020 0180 Out of stock
Washer 84
£0.37 £0.31

  20 Rotary handle assy.
Rotary handle assy.
ST6375 760 1800 Out of stock
Rotary handle assy.
£11.04 £9.20

  22 Rod
Rod
ST6375 703 1700 Out of stock
Rod
£36.54 £30.45

  23 Self-tapping screw P5x16
Self-tapping screw P5x16
ST9104 007 4270 In stock
Self-tapping screw P5x16
£0.97 £0.81

  24 Cover assy. (Contains 25)
Cover assy. (Contains 25)
ST6375 780 2091 Out of stock
Cover assy. (Contains 25)
£24.05 £20.04

  25 Inspection glass
Inspection glass
ST6375 701 3500 Out of stock
Inspection glass
£1.24 £1.03

  26 Self-tapping screw M5x12
Self-tapping screw M5x12
ST9039 488 0974 Out of stock
Self-tapping screw M5x12
£0.86 £0.72

  27 Cap nut M8
Cap nut M8
ST9241 288 1980 Out of stock
Cap nut M8
£0.86 £0.72

  27 Lock nut M8
Lock nut M8
ST9214 320 1105 Out of stock
Lock nut M8
£0.64 £0.53

  28 Screw TT-M5x28
Screw TT-M5x28
ST9070 010 1050 Out of stock
Screw TT-M5x28
£1.13 £0.94

  30 Knob
Knob
ST6375 703 6601 Out of stock
Knob
£18.71 £15.59

  31 Cover
Cover
ST6375 706 0700 Out of stock
Cover
£57.61 £48.01

  32 Tension spring
Tension spring
ST6375 703 5120 Out of stock
Tension spring
£6.08 £5.07

  33 Flap assy. (Contains 34)
Flap assy. (Contains 34)
ST6375 700 2715 Out of stock
Flap assy. (Contains 34)
£48.58 £40.48

  34 Handle molding
Handle molding
ST6375 706 6705 Out of stock
Handle molding
£14.38 £11.98

  34 Handle molding
Handle molding
ST6375 706 6700 Out of stock
Handle molding
£14.50 £12.08

  35 Bearing bushing
Bearing bushing
ST6375 763 3020 Out of stock
Bearing bushing
£5.69 £4.74

  39 Warning note
Warning note
ST0000 967 4405 Out of stock
Warning note
£2.35 £1.96

  40 Self-tapping screw M6x12
Self-tapping screw M6x12
ST9039 488 1266 Out of stock
Self-tapping screw M6x12
£0.86 £0.72

  40 Self-tapping screw M6x8
Self-tapping screw M6x8
ST9039 488 1230 Out of stock
Self-tapping screw M6x8
£0.76 £0.63

  102 Screw M4x20
Screw M4x20
ST6375 708 8400 Out of stock
Screw M4x20
£1.87 £1.56

  105 Cage nut M6
Cage nut M6
ST9991 003 1045 Out of stock
Cage nut M6
£1.37 £1.14

  106 Washer 64
Washer 64
ST9291 020 0140 Out of stock
Washer 64
£0.40 £0.33

  109 Hexagon nut M6
Hexagon nut M6
ST9212 260 0900 Out of stock
Hexagon nut M6
£0.48 £0.40

  110 Hexagon head screw M6x16
Hexagon head screw M6x16
ST9008 318 1280 Out of stock
Hexagon head screw M6x16
£1.00 £0.83

  111 Washer 84
Washer 84
ST9307 021 0180 Out of stock
Washer 84
£0.40 £0.33

  112 Notched quadrant (Contains 113-117)
Notched quadrant (Contains 113-117)
ST6375 780 3193 Out of stock
Notched quadrant (Contains 113-117)
£16.36 £13.63

  116 Pan head screw M4x30
Pan head screw M4x30
ST9045 318 0760 Out of stock
Pan head screw M4x30
£0.91 £0.76

  117 Hexagon nut M4
Hexagon nut M4
ST9212 260 0600 Out of stock
Hexagon nut M4
£0.40 £0.33
