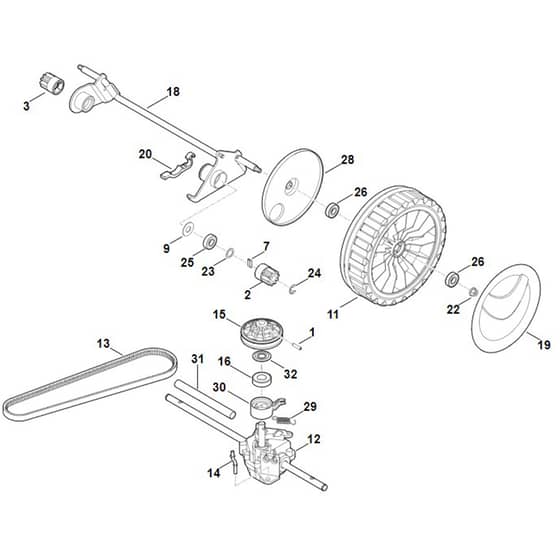

Viking MB650.1 VM - Shaft, Gear Box - Parts Diagram

Viking MB650.1 VM - Shaft, Gear Box - Parts Diagram

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Viking MB650.1 VM - Shaft, Gear Box - Parts Diagram

Viking MB650.1 VM - Shaft, Gear Box - Parts Diagram

Description

Viking MB650.1 VM - Shaft, Gear Box - Parts Diagram

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	1		ST9380 620 2620 Out of stock	Roll pin 5x20		£0.76 £0.63
	2		ST6105 704 7410 In stock	Pinion		£15.97 £13.31
	3		ST6105 704 7400 In stock	Pinion		£15.73 £13.11
	7		ST0000 704 8300 Out of stock	Freewheel key		£1.90 £1.58
	9		ST6103 704 7910 Out of stock	Protection disk		£1.26 £1.05
	11		ST6375 700 0402 Out of stock	Wheel assy. 230 (Contains 26+28)		£52.94 £44.12
	12		ST6360 640 0112 Out of stock	Gear box assy. (Contains 1+15+16+29+30)		£120.24 £100.20
	13		ST6360 704 2111 In stock	V-belt		£20.88 £17.40
	14		ST6360 704 2702 Out of stock	Support		£6.04 £5.03
	15		ST6360 700 2513 Out of stock	V-belt pulley assy. (Contains 16+30+32)		£41.15 £34.29
	18		ST6375 700 2417 Out of stock	Axle		£62.39 £51.99
	19		ST6375 704 0311 Out of stock	Wheel cap		£10.69 £8.91
	19		ST6375 704 0310 Out of stock	Wheel cap		£1.48 £1.23
	20		ST6375 763 2800 Out of stock	Axle guard		£3.02 £2.52
	22		ST9216 261 1100 Out of stock	Hexagon nut M8		£0.86 £0.72
	23		ST9296 021 1608 Out of stock	Washer 12x18x0.5		£0.61 £0.51
	24		ST9460 624 1001 In stock	E-clip 10		£0.37 £0.31
	25		ST9503 003 5297 Out of stock	Grooved ball bearing 6001-2TRS		£5.75 £4.79
	28		ST6375 704 3611 Out of stock	Cover		£13.84 £11.53
	29		ST6360 643 3800 Out of stock	Tension spring		£1.76 £1.47
	31		ST6103 703 9111 Out of stock	Tube		£2.36 £1.97
