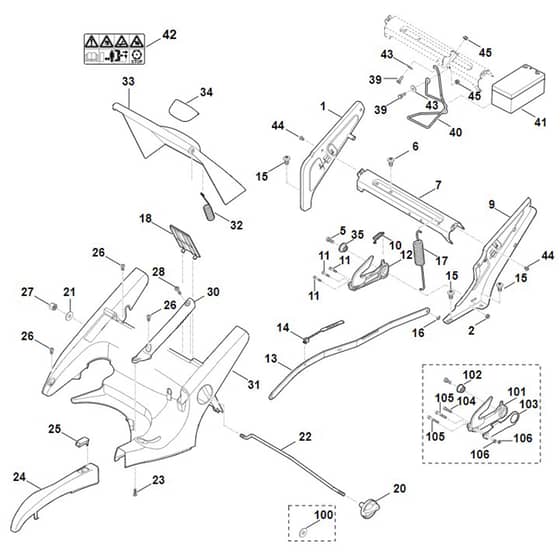

Viking MB650.0 VE - Frame, Height Adjustment - Parts Diagram

Ref. Img. Part No. Details
  1 Bracket right
Bracket right
ST6375 760 4215 Out of stock
Bracket right
£59.59 £49.66

  2 Hexagon nut M6
Hexagon nut M6
ST9212 260 0900 Out of stock
Hexagon nut M6
£0.48 £0.40

  7 Strud
Strud
ST6375 763 4501 Out of stock
Strud
£61.96 £51.63

  9 Bracket left
Bracket left
ST6375 760 4210 Out of stock
Bracket left
£61.80 £51.50

  10 Tension spring
Tension spring
ST6375 703 5111 Out of stock
Tension spring
£2.35 £1.96

  13 Translation lever
Translation lever
ST6360 703 8800 Out of stock
Translation lever
£53.03 £44.19

  14 Pointer
Pointer
ST6375 763 2000 Out of stock
Pointer
£1.87 £1.56

  15 Self-tapping screw M8x14
Self-tapping screw M8x14
ST9039 488 1502 Out of stock
Self-tapping screw M8x14
£1.00 £0.83

  15 Self-tapping screw M8x12
Self-tapping screw M8x12
ST9039 488 1550 Out of stock
Self-tapping screw M8x12
£0.91 £0.76

  16 E-clip 4
E-clip 4
ST9460 624 0400 In stock
E-clip 4
£0.48 £0.40

  17 Tension spring
Tension spring
ST6375 703 5101 Out of stock
Tension spring
£19.31 £16.09

  18 Cover
Cover
ST6360 706 3400 Out of stock
Cover
£4.96 £4.13

  20 Rotary handle assy.
Rotary handle assy.
ST6375 760 1800 Out of stock
Rotary handle assy.
£11.04 £9.20

  22 Rod
Rod
ST6375 703 1700 Out of stock
Rod
£36.54 £30.45

  23 Self-tapping screw P5x16
Self-tapping screw P5x16
ST9104 007 4270 In stock
Self-tapping screw P5x16
£0.97 £0.81

  24 Cover assy. (Contains 25)
Cover assy. (Contains 25)
ST6360 780 2091 Out of stock
Cover assy. (Contains 25)
£24.05 £20.04

  25 Inspection glass
Inspection glass
ST6375 701 3500 Out of stock
Inspection glass
£1.24 £1.03

  26 Self-tapping screw M5x12
Self-tapping screw M5x12
ST9039 488 0974 Out of stock
Self-tapping screw M5x12
£0.86 £0.72

  27 Cap nut M8
Cap nut M8
ST9241 288 1980 Out of stock
Cap nut M8
£0.86 £0.72

  28 Screw TT-M5x28
Screw TT-M5x28
ST9070 010 1050 Out of stock
Screw TT-M5x28
£1.13 £0.94

  30 Knob
Knob
ST6375 703 6601 Out of stock
Knob
£18.71 £15.59

  31 Cover
Cover
ST6375 706 0701 Out of stock
Cover
£52.76 £43.97

  32 Tension spring
Tension spring
ST6375 703 5120 Out of stock
Tension spring
£6.08 £5.07

  33 Flap assy. (Contains 34)
Flap assy. (Contains 34)
ST6375 700 2710 Out of stock
Flap assy. (Contains 34)
£48.58 £40.48

  34 Handle molding
Handle molding
ST6375 706 6700 Out of stock
Handle molding
£14.50 £12.08

  34 Handle molding
Handle molding
ST6375 706 6705 Out of stock
Handle molding
£14.38 £11.98

  35 Bearing bushing
Bearing bushing
ST6375 763 3020 Out of stock
Bearing bushing
£5.69 £4.74

  39 Hexagon head screw M6x16
Hexagon head screw M6x16
ST9008 318 1280 Out of stock
Hexagon head screw M6x16
£1.00 £0.83

  41 Battery 12 V
Battery 12 V
ST6340 400 1100 Out of stock
Battery 12 V
£50.69 £42.24

  42 Warning note
Warning note
ST0000 967 3679 Out of stock
Warning note
£2.35 £1.96

  43 Washer 64
Washer 64
ST9307 021 0140 Out of stock
Washer 64
£0.48 £0.40

  44 Self-tapping screw M6x12
Self-tapping screw M6x12
ST9039 488 1266 Out of stock
Self-tapping screw M6x12
£0.86 £0.72

  44 Self-tapping screw M6x8
Self-tapping screw M6x8
ST9039 488 1230 Out of stock
Self-tapping screw M6x8
£0.76 £0.63

  100 Washer 84
Washer 84
ST9307 021 0180 Out of stock
Washer 84
£0.40 £0.33

  101 Notched quadrant (Contains 102-106)
Notched quadrant (Contains 102-106)
ST6375 780 3193 Out of stock
Notched quadrant (Contains 102-106)
£16.36 £13.63

  104 Screw M4x20
Screw M4x20
ST6375 708 8400 Out of stock
Screw M4x20
£1.87 £1.56

  105 Pan head screw M4x30
Pan head screw M4x30
ST9045 318 0760 Out of stock
Pan head screw M4x30
£0.91 £0.76

  106 Hexagon nut M4
Hexagon nut M4
ST9212 260 0600 Out of stock
Hexagon nut M4
£0.40 £0.33
