Viking MB545.1 VE - Frame, Height Adjustment - Parts Diagram

Viking MB545.1 VE - Frame, Height Adjustment - Parts Diagram
Viking MB545.1 VE - Frame, Height Adjustment - Parts Diagram

Description

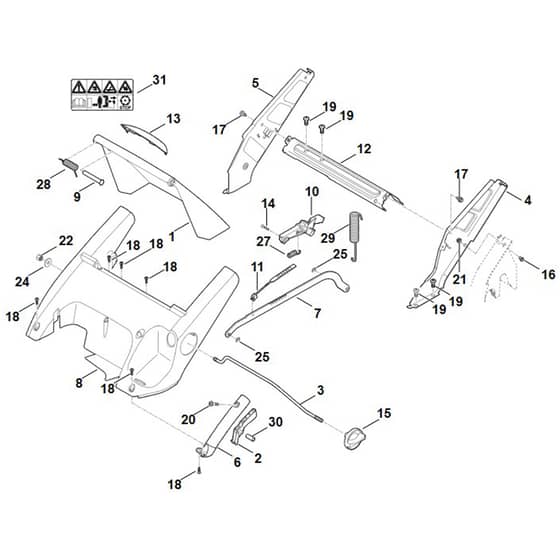

Viking MB545.1 VE - Frame, Height Adjustment - Parts Diagram

Ref. Img. Part No. Details
  1 Flap assy. (Contains 13+31)
Flap assy. (Contains 13+31)
ST6340 700 2700 Out of stock
Flap assy. (Contains 13+31)
£39.28 £32.73

  2 Lever (Contains 30)
Lever (Contains 30)
ST6340 700 7000 Out of stock
Lever (Contains 30)
£6.46 £5.38

  3 Rod
Rod
ST6340 703 1700 Out of stock
Rod
£36.32 £30.27

  4 Bracket left (Contains 20)
Bracket left (Contains 20)
ST6340 760 4291 Out of stock
Bracket left (Contains 20)
£57.48 £47.90

  5 Bracket right
Bracket right
ST6340 703 6205 Out of stock
Bracket right
£54.37 £45.31

  6 Knob
Knob
ST6340 703 6600 Out of stock
Knob
£15.25 £12.71

  7 Translation lever assy.
Translation lever assy.
ST6340 780 0400 Out of stock
Translation lever assy.
£44.60 £37.17

  8 Cover
Cover
ST6340 706 0703 Out of stock
Cover
£61.22 £51.02

  9 Bolt
Bolt
ST6340 706 5900 Out of stock
Bolt
£5.82 £4.85

  10 Notched quadrant (Contains 14)
Notched quadrant (Contains 14)
ST6340 780 3190 Out of stock
Notched quadrant (Contains 14)
£9.19 £7.66

  11 Pointer
Pointer
ST6340 763 2000 Out of stock
Pointer
£1.87 £1.56

  12 Strud
Strud
ST6340 763 4501 Out of stock
Strud
£55.14 £45.95

  13 Handle molding
Handle molding
ST6375 706 6700 Out of stock
Handle molding
£14.50 £12.08

  14 Screw M4x20
Screw M4x20
ST6375 708 8400 Out of stock
Screw M4x20
£1.87 £1.56

  15 Rotary handle assy.
Rotary handle assy.
ST6375 760 1800 Out of stock
Rotary handle assy.
£11.04 £9.20

  16 Hexagon head screw M6x12
Hexagon head screw M6x12
ST9008 319 1260 Out of stock
Hexagon head screw M6x12
£0.86 £0.72

  17 Self-tapping screw M6x8
Self-tapping screw M6x8
ST9039 488 1230 Out of stock
Self-tapping screw M6x8
£0.76 £0.63

  17 Self-tapping screw M6x12
Self-tapping screw M6x12
ST9039 488 1266 Out of stock
Self-tapping screw M6x12
£0.86 £0.72

  18 Self-tapping screw P5x16
Self-tapping screw P5x16
ST9104 007 4270 In stock
Self-tapping screw P5x16
£0.97 £0.81

  19 Self-tapping screw P8x18
Self-tapping screw P8x18
ST9104 007 9975 Out of stock
Self-tapping screw P8x18
£1.13 £0.94

  20 Screw TT-M5x28
Screw TT-M5x28
ST9070 010 1050 Out of stock
Screw TT-M5x28
£1.13 £0.94

  21 Hexagon nut M6
Hexagon nut M6
ST9216 261 0901 Out of stock
Hexagon nut M6
£0.61 £0.51

  22 Cap nut M8
Cap nut M8
ST9241 288 1980 Out of stock
Cap nut M8
£0.86 £0.72

  24 Washer 84
Washer 84
ST9307 021 0180 Out of stock
Washer 84
£0.40 £0.33

  25 E-clip 4
E-clip 4
ST9460 624 0400 In stock
E-clip 4
£0.48 £0.40

  27 Tension spring
Tension spring
ST6375 703 5111 Out of stock
Tension spring
£2.35 £1.96

  28 Torsion spring
Torsion spring
ST6340 708 4505 Out of stock
Torsion spring
£8.04 £6.70

  29 Tension spring
Tension spring
ST6340 703 5100 Out of stock
Tension spring
£15.25 £12.71

  31 Warning note
Warning note
ST0000 967 3679 Out of stock
Warning note
£2.35 £1.96
