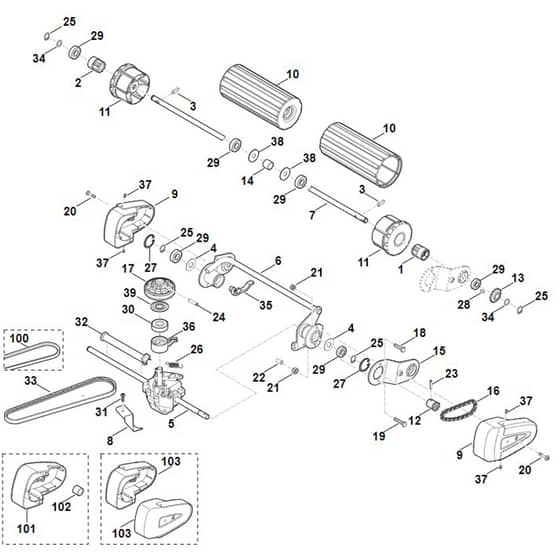

Viking MB545.0VR - Shaft, Drive - Parts Diagram

Description

Viking MB545.0VR - Shaft, Drive - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	ST6105 704 7400 In stock	Pinion	£14.36 £11.97
2	ST6105 704 7410 In stock	Pinion	£14.71 £12.26
3	ST0000 704 8300 Out of stock	Freewheel key	£1.76 £1.47
4	ST6103 704 7910 Out of stock	Protection disk	£1.24 £1.03
5	ST6340 640 0122 Out of stock	Gear box assy. (Contains 17+24+26+30+36)	£118.40 £98.67
6	ST6340 700 2412 Out of stock	Axle	£61.69 £51.41
7	ST6340 704 0500 Out of stock	Shaft	£67.93 £56.61
8	ST6340 704 2700 Out of stock	Support	£9.67 £8.06
10	ST6340 780 4500 Out of stock	Roller (Contains 11)	£14.26 £11.88
12	ST6340 760 1300 Out of stock	Spur sprocket	£19.70 £16.42
13	ST6340 760 1310 Out of stock	Spur sprocket	£15.25 £12.71
14	ST6340 764 2821 Out of stock	Distance sleeve	£2.50 £2.08
15	ST6340 780 0300 Out of stock	Swivel lever	£46.08 £38.40
16	ST6340 780 0601 Out of stock	Roller chain	£27.64 £23.03
17	ST6364 700 2500 Out of stock	V-belt pulley assy.	£39.28 £32.73
17	ST6360 700 2513 Out of stock	V-belt pulley assy. (Contains 30+36+39)	£39.28 £32.73
18	ST9008 318 1280 Out of stock	Hexagon head screw M6x16	£1.00 £0.83
19	ST9008 318 1350 Out of stock	Hexagon head screw M6x25	£1.13 £0.94
20	ST9039 499 0990 Out of stock	Self-tapping screw M5x20	£1.00 £0.83
20	ST9039 488 0982 Out of stock	Self-tapping screw M5x20	£0.91 £0.76
21	ST9214 263 0900 Out of stock	Lock nut M6	£0.40 £0.33
22	ST9302 929 4500 Out of stock	Cap	£0.50 £0.42
23	ST9380 620 2130 In stock	Roll pin 4x20	£0.61 £0.51
24	ST9380 620 2620 Out of stock	Roll pin 5x20	£0.64 £0.53
25	ST9455 621 1130 Out of stock	Circlip 12x1	£0.60 £0.50
26	ST6360 643 3800 Out of stock	Tension spring	£1.63 £1.36
27	ST9456 621 3100 In stock	Circlip 28x1.2	£1.19 £0.99
28	ST9470 435 0510 Out of stock	Key 4x4x10	£0.64 £0.53
29	ST9503 421 5132 Out of stock	Grooved ball bearing S6001-2RS	£5.69 £4.74
31	ST9104 007 4289 In stock	Self-tapping screw P5x20	£0.95 £0.79
31	ST9104 007 4270 In stock	Self-tapping screw P5x16	£0.97 £0.81
32	ST6340 706 8100 Out of stock	Protecting shell	£5.21 £4.34
33	ST6340 704 2101 Out of stock	V-belt	£19.31 £16.09
34	ST9296 021 1608 Out of stock	Washer 12x18x0.5	£0.61 £0.51
35	ST6375 763 2800 Out of stock	Axle guard	£2.87 £2.39
37	ST9438 424 3165 Out of stock	Blind rivet 4x8	£1.00 £0.83
38	ST6340 704 1100 Out of stock	Washer	£1.24 £1.03
101	ST6340 704 3611 Out of stock	Cover	£37.74 £31.45
102	ST6340 764 2820 Out of stock	Distance sleeve	£2.44 £2.03

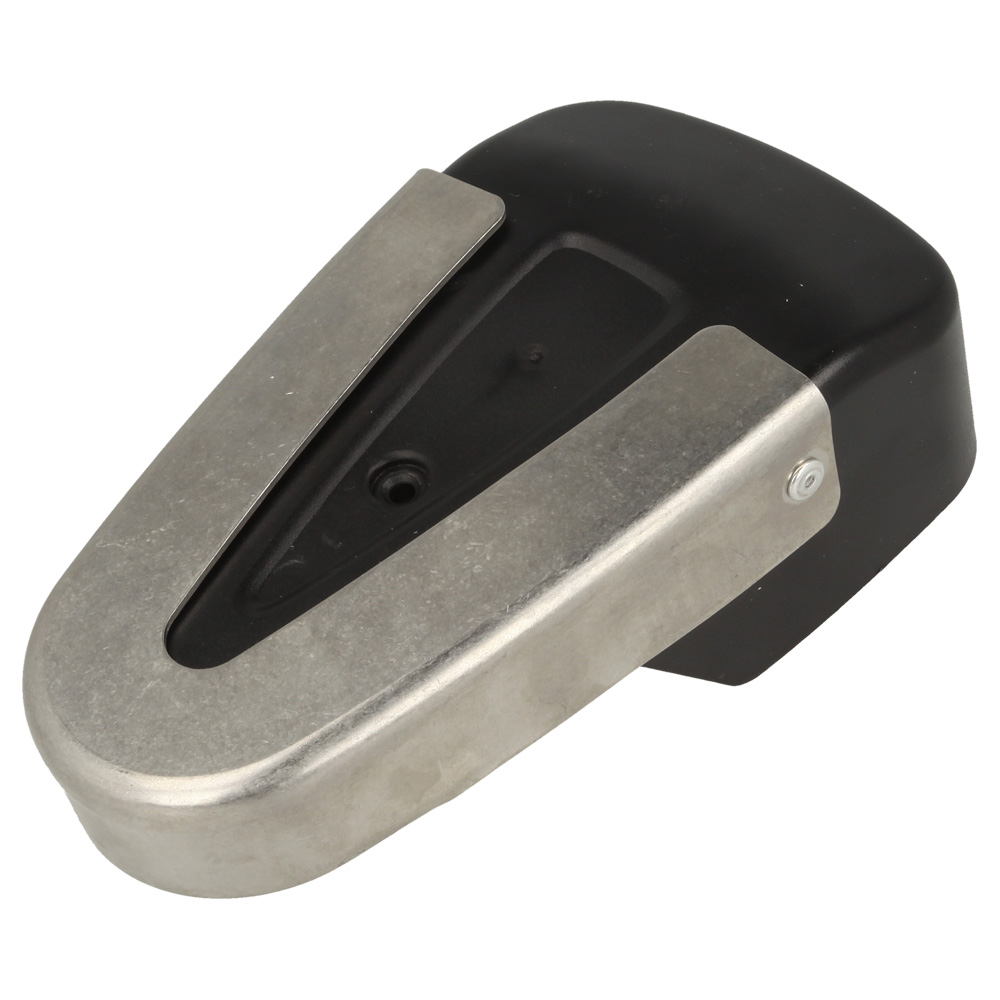

103	ST6340 780 2096 Out of stock	Cover (Contains 37)	£38.17 £31.81
