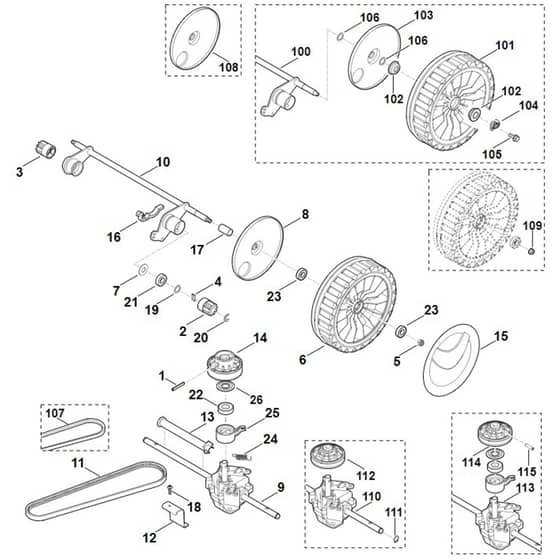

Viking MB545.0 VM - Shaft, Gear Box - Parts Diagram

Description

Viking MB545.0 VM - Shaft, Gear Box - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	ST9380 620 2730 Out of stock	Roll pin 5x36	£1.00 £0.83
2	ST6105 704 7400 In stock	Pinion	£15.73 £13.11
3	ST6105 704 7410 In stock	Pinion	£15.97 £13.31
4	ST0000 704 8300 Out of stock	Freewheel key	£1.90 £1.58
5	ST9212 260 1100 Out of stock	Hexagon nut M8	£0.76 £0.63
6	ST0000 700 0425 In stock	Wheel assy. 200 (Contains 8+23)	£27.35 £22.79
7	ST6103 704 7910 Out of stock	Protection disk	£1.26 £1.05
8	ST6375 704 3611 Out of stock	Cover	£13.84 £11.53
10	ST6340 700 2411 Out of stock	Axle	£52.31 £43.59
11	ST6340 704 2101 Out of stock	V-belt	£20.27 £16.89
12	ST6340 704 2700 Out of stock	Support	£10.06 £8.38
13	ST6340 706 8100 Out of stock	Protecting shell	£5.39 £4.49
14	ST6364 700 2500 Out of stock	V-belt pulley assy. (Contains 25+26)	£41.15 £34.29
15	ST6375 704 0301 Out of stock	Wheel cap	£7.43 £6.19
16	ST6375 763 2800 Out of stock	Axle guard	£3.02 £2.52
17	ST6340 708 3700 Out of stock	Spacer tube	£7.19 £5.99
18	ST9104 007 4289 In stock	Self-tapping screw P5x20	£0.95 £0.79
18	ST9104 007 4270 Out of stock	Self-tapping screw P5x16	£1.00 £0.83
20	ST9460 624 1001 In stock	E-clip 10	£0.37 £0.31
21	ST9503 003 5151 Out of stock	Grooved ball bearing 6001-2Z	£15.24 £12.70
21	ST9503 003 5297 Out of stock	Grooved ball bearing 6001-2TRS	£5.75 £4.79
24	ST6360 643 3800 Out of stock	Tension spring	£1.76 £1.47
103	ST6105 704 0320 Out of stock	Cover	£11.28 £9.40
104	ST0000 708 7000 Out of stock	Clamping ring	£0.48 £0.40
105	ST9039 488 0994 Out of stock	Self-tapping screw M6x16	£1.00 £0.83
106	ST9296 021 1608 Out of stock	Washer 12x18x0.5	£0.61 £0.51
109	ST9216 261 1100 Out of stock	Hexagon nut M8	£0.86 £0.72
111	ST9455 621 1130 Out of stock	Circlip 12x1	£0.76 £0.63
112	ST6360 700 2513 Out of stock	V-belt pulley assy. (Contains 22+25)	£41.15 £34.29
113	ST6340 640 0113 Out of stock	Gear box assy.	£125.04 £104.20
115	ST9380 620 2620 Out of stock	Roll pin 5x20	£0.76 £0.63
