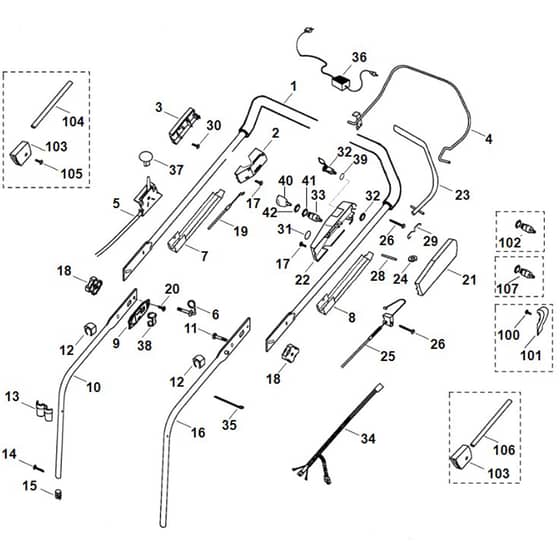

Viking MB505E - Handle - Parts Diagram

Name: Viking MB505E - Handle - Parts Diagram
SKU: mb505e_handle-group
Price: 0.40 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Viking MB505E - Handle - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	ST6105 700 9455 Out of stock	Upper handlebar	£89.64 £74.70
3	ST6105 182 1300 Out of stock	Housing right	£4.10 £3.42
4	ST6105 760 1501 Out of stock	Switch lever	£8.08 £6.73
5	ST6105 180 1110 Out of stock	Throttle cable	£15.28 £12.73
6	ST6105 703 5200 Out of stock	Cable guide	£3.17 £2.64
7	ST6105 706 6615 Out of stock	Guide right	£1.76 £1.47
8	ST6105 706 6611 Out of stock	Guide	£4.28 £3.57
9	ST6105 706 6600 Out of stock	Guide	£1.02 £0.85
11	ST6105 703 3706 Out of stock	Screw M8x35	£0.48 £0.40
11	ST9027 068 1880 Out of stock	Screw M8x35	£1.63 £1.36
12	ST6100 703 3100 Out of stock	Cable Clips	£4.02 £3.35
13	ST6103 708 7500 Out of stock	Insert	£2.04 £1.70
14	ST9039 488 1400 Out of stock	Self-tapping screw M6x40	£0.70 £0.58
15	ST6118 703 2800 Out of stock	Plug	£1.26 £1.05
18	ST0000 760 1800 Out of stock	Rotary handle	£10.06 £8.38
19	ST6103 700 7525 Out of stock	Cable	£18.23 £15.19
21	ST6103 764 0600 Out of stock	Housing left	£2.34 £1.95
23	ST6103 760 1501 Out of stock	Switch lever	£19.38 £16.15
23	ST6103 760 1500 Out of stock	Switch lever	£31.09 £25.91
24	ST6101 704 4700 Out of stock	Rope pulley	£3.13 £2.61
25	ST6105 700 7551 Out of stock	Cable	£12.19 £10.16
26	ST9104 007 4295 Out of stock	Self-tapping screw P5x35	£1.39 £1.16
29	ST6103 703 5100 Out of stock	Tension spring	£2.15 £1.79
30	ST9104 007 4260 Out of stock	Self-tapping screw P5x12	£0.86 £0.72
32	ST6116 430 3900 Out of stock	Charging socket	£10.82 £9.02
33	ST6360 430 2400 Out of stock	Ignition lock	£44.77 £37.31
37	ST0000 989 8100 Out of stock	Handle	£8.06 £6.72
39	ST9645 945 7588 Out of stock	O-ring 17x3	£0.76 £0.63
40	ST0000 430 8101 Out of stock	Ignition key	£5.76 £4.80
102	ST6105 704 2740 Out of stock	Support	£2.92 £2.43
105	ST9104 007 4270 Out of stock	Self-tapping screw P5x16	£1.00 £0.83
