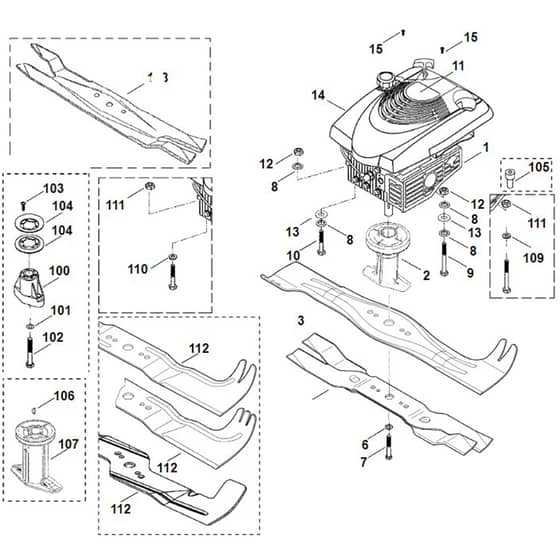

Viking MB505 - Engine - Blade - Parts Diagram

Description

	Part No.	Details
2	ST6118 702 5001 In stock	Blade bushing	£19.32 £16.10
3	ST6360 760 9992 Out of stock	Blade	£34.39 £28.66
6	ST0000 702 6600 In stock	Washer	£4.40 £3.67
7	ST9008 319 9067 Out of stock	Hexagon head screw 3/8"x85	£3.04 £2.53
7	ST9008 319 9075 Out of stock	Hexagon head screw 3/8"x85	£2.98 £2.48
8	ST9460 624 4030 Out of stock	E-clip 8.4	£0.40 £0.33
9	ST9007 319 2060 Out of stock	Hexagon head screw M8x110	£3.37 £2.81
10	ST9007 319 2010 Out of stock	Hexagon head screw M8x80	£2.51 £2.09
12	ST9214 320 1105 Out of stock	Lock nut M8	£0.64 £0.53
13	ST9289 021 0190 Out of stock	Washer 9	£0.40 £0.33
15	ST9104 003 0820 Out of stock	Screw IS P4x30	£1.00 £0.83
101	ST9460 624 4031 Out of stock	E-clip 10.5 ( Up to Serial Number 037431582 )	£0.50 £0.42
103	ST9104 007 4270 In stock	Self-tapping screw P5x16 ( Up to Serial Number 037431582 )	£0.97 £0.81
106	ST9482 435 0820 Out of stock	Woodruff key 4x6.5 ( Up to Serial Number 048474241 )	£1.00 £0.83
109	ST9309 021 0180 Out of stock	Washer 8.4 ( Up to Serial Number 430542657 )	£0.40 £0.33
110	ST9307 021 0180 Out of stock	Washer 84	£0.40 £0.33
111	ST9212 260 1100 Out of stock	Hexagon nut M8 ( Up to Serial Number 430542657 )	£0.61 £0.51
