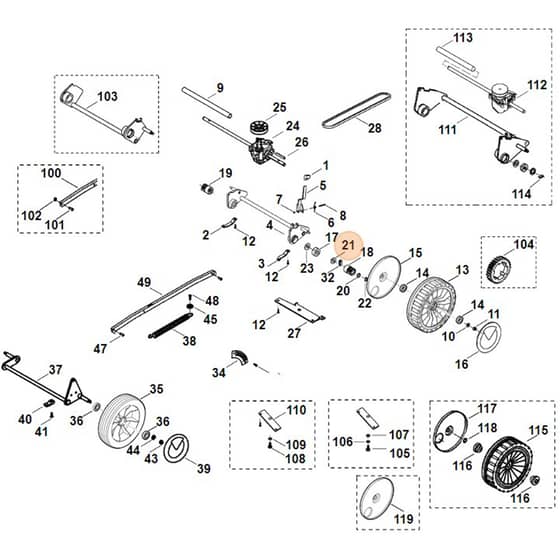

Viking MB505 - Chassis - Parts Diagram

Name: Viking MB505 - Chassis - Parts Diagram
SKU: mb505_chassis-group
Price: 0.31 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Viking MB505 - Chassis - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	ST6103 703 6601 Out of stock	Knob	£6.82 £5.68
2	ST6103 704 1200 Out of stock	Axle bracket right	£2.12 £1.77
3	ST6103 704 1201 Out of stock	Axle bracket left	£2.12 £1.77
4	ST6107 700 2422 Out of stock	Axle	£41.10 £34.25
5	ST6105 703 6745 Out of stock	Adjusting lever	£13.57 £11.31
7	ST9212 260 0705 Out of stock	Hexagon nut M5	£0.40 £0.33
8	ST9007 319 1090 Out of stock	Hexagon head screw M5x40	£1.24 £1.03
9	ST6105 703 9111 Out of stock	Tube	£2.23 £1.86
10	ST9291 020 0180 Out of stock	Washer 84	£0.37 £0.31
11	ST9212 260 1100 Out of stock	Hexagon nut M8	£0.61 £0.51
12	ST9104 007 4270 In stock	Self-tapping screw P5x16	£0.97 £0.81
13	ST0000 700 0425 Out of stock	Wheel assy. 200 (Contains 14+15)	£26.54 £22.12
14	ST9503 003 5297 Out of stock	Grooved ball bearing 6001-2TRS	£5.36 £4.47
15	ST6375 704 3611 Out of stock	Cover	£13.27 £11.06
16	ST6375 704 0301 Out of stock	Wheel cap	£11.40 £9.50
17	ST9503 003 5151 Out of stock	Grooved ball bearing 6001-2Z	£19.44 £16.20
18	ST6105 704 7400 In stock	Pinion	£14.36 £11.97
19	ST0000 640 2505 In stock	Pinion	£13.21 £11.01
19	ST6105 704 7410 In stock	Pinion	£14.71 £12.26
21	ST9296 021 1608 Out of stock	Washer 12x18x0.5	£0.61 £0.51
22	ST9455 621 1130 Out of stock	Circlip 12x1	£0.60 £0.50
23	ST6103 704 7910 Out of stock	Protection disk	£1.24 £1.03
24	ST6105 640 0106 Out of stock	Gear box (Contains 25+26)	£71.14 £59.28
25	ST6103 704 1015 Out of stock	V-belt pulley	£10.14 £8.45
26	ST9380 620 2700 Out of stock	Roll pin 5x30	£0.78 £0.65
27	ST6105 704 2731 Out of stock	Support	£2.98 £2.48
28	ST6105 704 2100 Out of stock	V-belt	£21.92 £18.27
32	ST0000 704 8300 Out of stock	Freewheel key	£1.76 £1.47
34	ST6103 703 9500 Out of stock	Notched plate	£17.16 £14.30
35	ST6364 700 0400 In stock	Wheel assy. 200 (Contains 36)	£21.52 £17.93
35	ST6105 700 0491 Out of stock	Wheel (Contains 36)	£23.92 £19.93
36	ST9503 003 9011 Out of stock	Grooved ball bearing 27M-36x12	£5.82 £4.85
39	ST6100 704 0303 Out of stock	Wheel cap	£10.14 £8.45
40	ST6118 704 1200 Out of stock	Axle bracket	£3.16 £2.63
44	ST9291 021 0180 Out of stock	Washer 8.4	£0.48 £0.40
45	ST9307 020 0120 Out of stock	Washer 53	£0.40 £0.33
106	ST9460 624 4028 Out of stock	E-clip 6.4 ( Up to Serial Number 430123431 )	£0.40 £0.33
108	ST9075 478 4610 Out of stock	Pan head screw IS D6x16 ( Up to Serial Number 430342984 )	£1.00 £0.83
109	ST9307 021 0140 Out of stock	Washer 64 ( Up to Serial Number 430342984 )	£0.48 £0.40
114	ST6103 704 8300 Out of stock	Freewheel key ( Up to Serial Number 430342984 )	£1.76 £1.47
117	ST6105 704 0320 Out of stock	Cover	£11.28 £9.40
118	ST9296 021 1280 Out of stock	Washer 12x18x1	£0.50 £0.42
