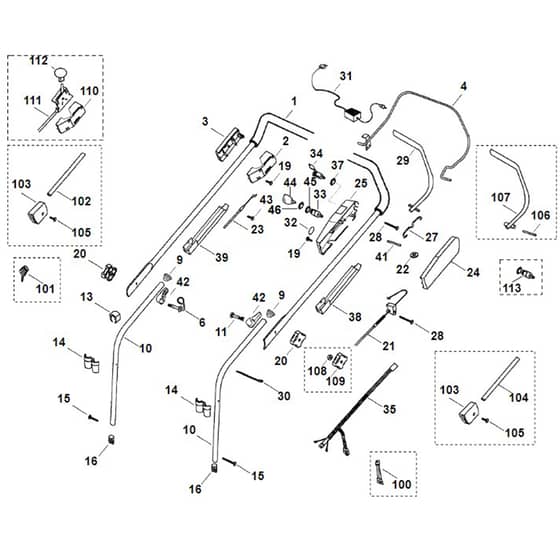

Viking MB455 E - Handle - Parts Diagram

Viking MB455 E - Handle - Parts Diagram
Viking MB455 E - Handle - Parts Diagram

Description

Viking MB455 E - Handle - Parts Diagram

Ref. Img. Part No. Details
  2 Housing left
Housing left
ST6103 182 1300 Out of stock
Housing left
£8.30 £6.92

  3 Housing right
Housing right
ST6105 182 1300 Out of stock
Housing right
£4.10 £3.42

  4 Switch lever
Switch lever
ST6103 760 1510 Out of stock
Switch lever
£25.26 £21.05

  6 Cable guide
Cable guide
ST6105 760 3801 Out of stock
Cable guide
£5.47 £4.56

  9 Plug
Plug
ST6101 703 2800 Out of stock
Plug
£0.76 £0.63

  10 Lower handlebar
Lower handlebar
ST6103 703 1260 Out of stock
Lower handlebar
£10.94 £9.12

  11 Screw M8x50
Screw M8x50
ST0000 703 3705 Out of stock
Screw M8x50
£1.80 £1.50

  13 Cable Clips
Cable Clips
ST6100 703 3100 Out of stock
Cable Clips
£3.84 £3.20

  14 Insert
Insert
ST6103 708 7500 Out of stock
Insert
£2.04 £1.70

  15 Self-tapping screw P6x40
Self-tapping screw P6x40
ST9104 007 4465 Out of stock
Self-tapping screw P6x40
£1.37 £1.14

  16 Plug
Plug
ST6118 703 2800 Out of stock
Plug
£1.18 £0.98

  20 Rotary handle
Rotary handle
ST0000 760 1800 Out of stock
Rotary handle
£9.34 £7.78

  22 Rope pulley
Rope pulley
ST6101 704 4700 Out of stock
Rope pulley
£2.98 £2.48

  23 Cable
Cable
ST6103 700 7525 Out of stock
Cable
£18.23 £15.19

  24 Housing left
Housing left
ST6103 764 0600 Out of stock
Housing left
£2.34 £1.95

  27 Tension spring
Tension spring
ST6103 703 5100 Out of stock
Tension spring
£2.12 £1.77

  28 Self-tapping screw P5x35
Self-tapping screw P5x35
ST9104 007 4295 Out of stock
Self-tapping screw P5x35
£1.24 £1.03

  29 Switch lever
Switch lever
ST6103 760 1501 Out of stock
Switch lever
£19.38 £16.15

  33 Ignition lock
Ignition lock
ST6360 430 2400 Out of stock
Ignition lock
£42.86 £35.72

  34 Charging socket
Charging socket
ST6116 430 3900 Out of stock
Charging socket
£10.30 £8.58

  37 O-ring 17x3
O-ring 17x3
ST9645 945 7588 Out of stock
O-ring 17x3
£0.64 £0.53

  38 Guide left
Guide left
ST6103 706 6601 Out of stock
Guide left
£3.00 £2.50

  39 Guide right
Guide right
ST6103 706 6605 Out of stock
Guide right
£1.56 £1.30

  42 Guide
Guide
ST6320 706 6610 Out of stock
Guide
£1.91 £1.59

  43 Self-tapping screw P5x12
Self-tapping screw P5x12
ST9104 007 4260 Out of stock
Self-tapping screw P5x12
£0.83 £0.69

  44 Ignition key
Ignition key
ST0000 430 8101 Out of stock
Ignition key
£9.67 £8.06

  104 Tube
Tube
ST6103 703 9111 Out of stock
Tube
£2.23 £1.86

  105 Self-tapping screw P5x16 ( Up to Serial Number
047219159 )
Self-tapping screw P5x16 ( Up to Serial Number
047219159 )
ST9104 007 4270 In stock
Self-tapping screw P5x16 ( Up to Serial Number 047219159 )
£0.97 £0.81

  106 Support ( Up to Serial Number
046896079 )
Support ( Up to Serial Number
046896079 )
ST6105 704 2740 Out of stock
Support ( Up to Serial Number 046896079 )
£2.68 £2.23

  107 Switch lever ( Up to Serial Number
046896079 )
Switch lever ( Up to Serial Number
046896079 )
ST6103 760 1500 Out of stock
Switch lever ( Up to Serial Number 046896079 )
£31.09 £25.91

  112 Handle ( Up to Serial Number
430783655
 )
Handle ( Up to Serial Number
430783655
 )
ST0000 989 8100 Out of stock
Handle ( Up to Serial Number 430783655 )
£7.72 £6.43
