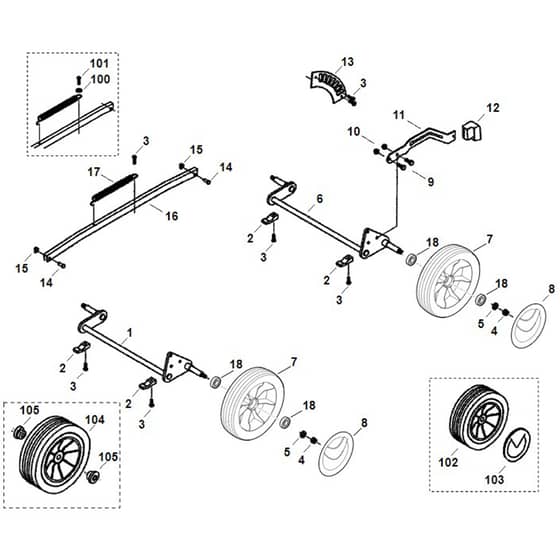

Viking MB400 - Chassis - Parts Diagram

Description

	Part No.	Details
2	ST6118 704 1200	Axle bracket	Out of stock	£3.16 £2.63
3	ST9104 007 4270	Self-tapping screw P5x16	In stock	£1.00 £0.83
4	ST9212 260 1100	Hexagon nut M8	Out of stock	£0.76 £0.63
5	ST9291 020 0180	Washer 84	Out of stock	£0.40 £0.33
7	ST6360 700 0400	Wheel assy. 180 (Contains 18)	Out of stock	£20.27 £16.89
8	ST6340 704 0301	Wheel cap ( Up to Serial Number 043705510 )	Out of stock	£5.68 £4.73
9	ST9008 318 1270	Hexagon head screw M6x14	Out of stock	£1.00 £0.83
10	ST9212 260 0900	Hexagon nut M6	In stock	£0.55 £0.46
11	ST6103 703 6701	Adjusting lever	Out of stock	£13.19 £10.99
12	ST6103 703 6601	Knob	Out of stock	£7.19 £5.99
13	ST6103 703 9500	Notched plate	Out of stock	£13.08 £10.90
17	ST6118 703 5100	Tension spring	Out of stock	£7.39 £6.16
18	ST9503 003 5297	Grooved ball bearing 6001-2TRS	Out of stock	£5.75 £4.79
100	ST9307 021 0120	Washer 5.3 ( Up to Serial Number 035916894 )	Out of stock	£0.40 £0.33
104	ST6100 700 0401	Wheel (Contains 105)	Out of stock	£21.01 £17.51
105	ST9503 003 9011	Grooved ball bearing 27M-36x12	Out of stock	£6.04 £5.03
