Viking MB248.4 - Housing - Parts Diagram

Description

	Part No.	Details
1	ST0000 967 1000 Out of stock	Plate	£5.04 £4.20
2	ST0000 967 3679 Out of stock	Warning note	£2.36 £1.97
3	ST6350 706 5901 Out of stock	Bolt	£6.48 £5.40

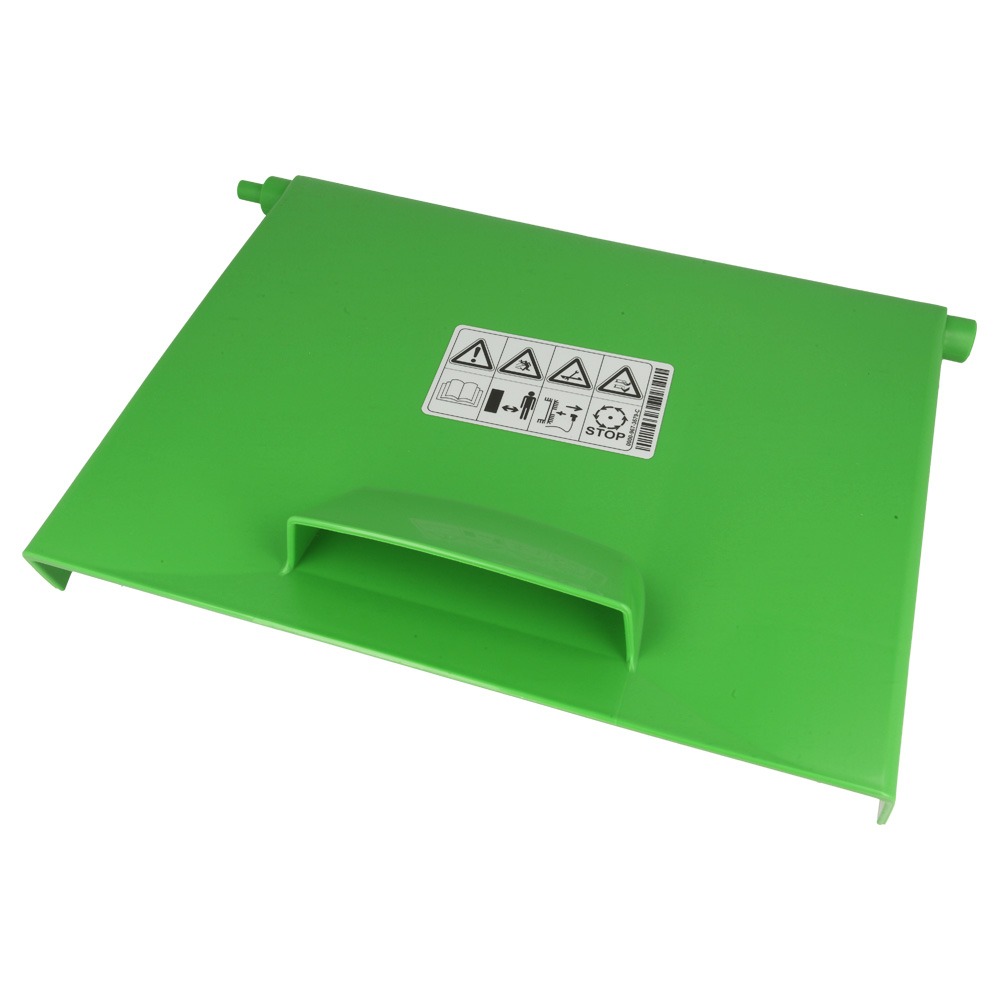

4	ST6350 700 2709 Out of stock	Flap (Contains 2)	£26.04 £21.70
5	ST6350 700 8521 Out of stock	Housing (Contains 1)	£295.20 £246.00
6	ST6371 703 9500 Out of stock	Notched plate	£23.03 £19.19
7	ST6350 708 4500 Out of stock	Torsion spring	£2.83 £2.36
8	ST6350 967 0107 Out of stock	Model plate MB 248.4	£2.36 £1.97
8	ST0000 967 3453 Out of stock	Warning sign with machine number	£2.29 £1.91
9	ST9027 318 1280 Out of stock	Flat head screw M6x16	£1.00 £0.83
10	ST9216 261 0901 Out of stock	Hexagon nut M6	£0.76 £0.63
11	ST9025 313 5003 Out of stock	Screw M8x16	£2.29 £1.91
11	ST9025 313 5000 Out of stock	Screw M8x16	£2.29 £1.91
12	ST9220 263 1100 Out of stock	Hexagon nut M8	£0.86 £0.72
100	ST6350 700 8520 Out of stock	Housing ( Up to Serial Number 438257553 ) (Contains 1)	£295.20 £246.00
101	ST6350 700 2706 Out of stock	Flap (Contains 2)	£27.49 £22.91
102	ST6350 706 5900 Out of stock	Bolt	£5.36 £4.47
