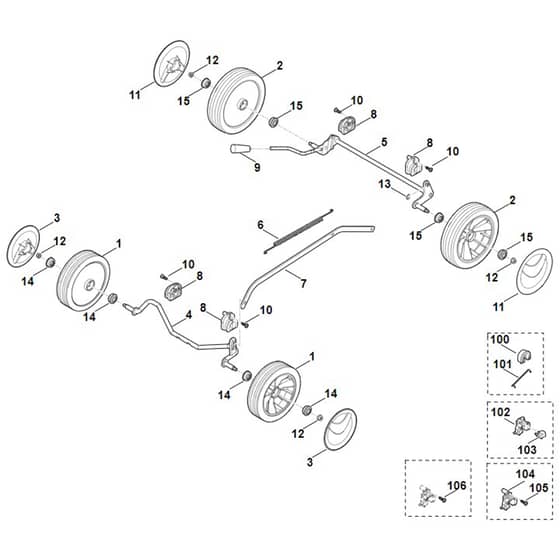

Viking MB248.4 - Chassis - Parts Diagram

Viking MB248.4 - Chassis - Parts Diagram
Viking MB248.4 - Chassis - Parts Diagram

Description

Viking MB248.4 - Chassis - Parts Diagram

Ref. Img. Part No. Details
  1 Wheel (Contains 14)
Wheel (Contains 14)
ST6100 700 0401 Out of stock
Wheel (Contains 14)
£19.49 £16.24

  2 Wheel (Contains 15)
Wheel (Contains 15)
ST6105 700 0491 Out of stock
Wheel (Contains 15)
£23.92 £19.93

  3 Wheel cap
Wheel cap
ST6340 704 0301 Out of stock
Wheel cap
£8.42 £7.02

  4 Axle
Axle
ST6350 700 2420 Out of stock
Axle
£44.47 £37.06

  4 Axle
Axle
ST6350 700 2421 Out of stock
Axle
£44.47 £37.06

  5 Axle (Contains 9)
Axle (Contains 9)
ST6371 700 2400 Out of stock
Axle (Contains 9)
£50.29 £41.91

  6 Tension spring
Tension spring
ST6350 703 5105 Out of stock
Tension spring
£9.43 £7.86

  7 Translation lever
Translation lever
ST6350 703 8800 Out of stock
Translation lever
£47.21 £39.34

  8 Set of axle brackets (Contains 10)
Set of axle brackets (Contains 10)
ST6371 007 1090 In stock
Set of axle brackets (Contains 10)
£4.24 £3.53

  9 Handle
Handle
ST6350 706 6800 Out of stock
Handle
£7.06 £5.88

  10 Self-tapping screw P5x20
Self-tapping screw P5x20
ST9104 007 4289 In stock
Self-tapping screw P5x20
£0.95 £0.79

  11 Wheel cap
Wheel cap
ST6375 704 0301 Out of stock
Wheel cap
£11.40 £9.50

  12 Hexagon nut M8
Hexagon nut M8
ST9216 261 1100 Out of stock
Hexagon nut M8
£0.86 £0.72

  13 E-clip 6
E-clip 6
ST9460 624 0600 Out of stock
E-clip 6
£2.39 £1.99

  14 Grooved ball bearing 27M-36x12
Grooved ball bearing 27M-36x12
ST9503 003 9011 Out of stock
Grooved ball bearing 27M-36x12
£5.82 £4.85

  100 Axle guard ( Up to Serial Number
436197401 )
Axle guard ( Up to Serial Number
436197401 )
ST6371 704 1200 In stock
Axle guard ( Up to Serial Number 436197401 )
£4.63 £3.86

  101 Spring clip ( Up to Serial Number
436197401 )
Spring clip ( Up to Serial Number
436197401 )
ST6350 708 0320 In stock
Spring clip ( Up to Serial Number 436197401 )
£1.91 £1.59

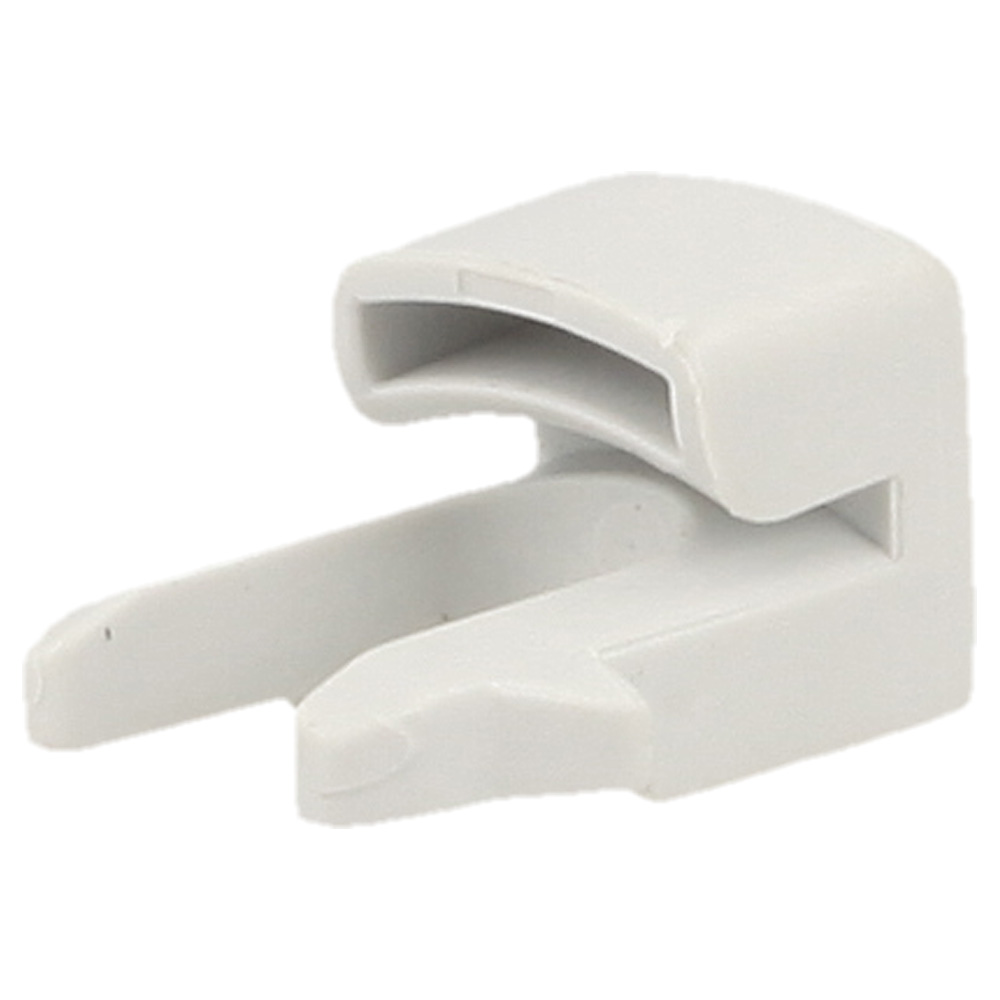

  103 Lock ( Up to Serial Number
438475427 )
Lock ( Up to Serial Number
438475427 )
ST6371 706 0100 Out of stock
Lock ( Up to Serial Number 438475427 )
£2.87 £2.39

  105 Self-tapping screw P5x12
Self-tapping screw P5x12
ST9104 007 4260 Out of stock
Self-tapping screw P5x12
£0.83 £0.69

  106 Self-tapping screw P5x16
Self-tapping screw P5x16
ST9104 007 4270 In stock
Self-tapping screw P5x16
£0.97 £0.81
