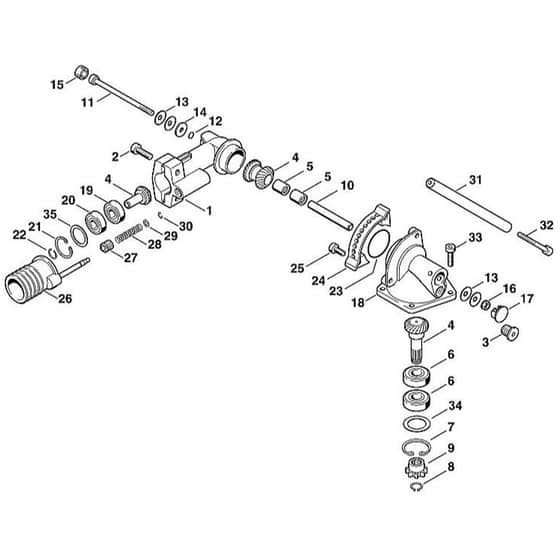

Viking HEL600 K - Gear Head Hg 900 - Parts Diagram

Name: Viking HEL600 K - Gear Head Hg 900 - Parts Diagram
SKU: hel600_k_gear_head_hg_900-group
Price: 0.36 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Viking HEL600 K - Gear Head Hg 900 - Parts Diagram

Description

Viking HEL600 K - Gear Head Hg 900 - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
-1	ST4230 640 4511 Out of stock	Lock (Contains 26-30)	£23.42 £19.52
1	ST4230 640 0558 Out of stock	Gear housing (Contains 2)	£63.50 £52.92
1	ST4230 640 0110 Out of stock	Gear box 0°-90° (Contains 1-32)	£418.26 £348.55
2	ST9022 341 1300 In stock	Pan head screw IS M6x20	£0.91 £0.76
3	ST4226 641 6500 In stock	Plug screw	£2.59 £2.16
5	ST9513 003 1920 Out of stock	Needle cage 8x12x10	£7.73 £6.44
6	ST9503 003 5190 Out of stock	Grooved ball bearing 6001-2RS	£14.16 £11.80
7	ST9456 621 3100 In stock	Circlip 28x1.2	£1.19 £0.99
8	ST9455 621 0850 Out of stock	Circlip 10x1	£0.61 £0.51
9	ST4230 642 0405 Out of stock	Drive pinion	£12.73 £10.61
10	ST4230 641 9410 Out of stock	Bearing bushing	£22.39 £18.66
11	ST9022 341 1163 Out of stock	Pan head screw IS M5x86x20	£1.98 £1.65
12	ST9645 945 7455 Out of stock	O-ring 4.9x1.9	£0.43 £0.36
14	ST0000 958 0527 Out of stock	Washer	£1.37 £1.14
15	ST4230 641 7400 Out of stock	Cap	£2.71 £2.26
16	ST9214 320 0700 In stock	Lock nut M5	£0.46 £0.38
19	ST9503 003 0040 Out of stock	Grooved ball bearing 609	£10.72 £8.93
20	ST9503 003 9854 Out of stock	Grooved ball bearing 609-Z	£12.84 £10.70
21	ST9456 621 2660 In stock	Circlip 24x1.2	£1.01 £0.84
22	ST9455 621 0750 In stock	Circlip 9x1	£0.58 £0.48
23	ST9645 945 7845 Out of stock	O-ring 30x3.5	£0.83 £0.69
24	ST4230 642 4610 Out of stock	Perforated strip	£10.58 £8.82
25	ST9022 341 0950 Out of stock	Pan head screw IS M5x10	£0.78 £0.65
26	ST4230 641 5511 Out of stock	Lock housing	£7.27 £6.06
27	ST4230 642 9010 Out of stock	Screw sleeve	£1.74 £1.45
28	ST4230 641 3110 Out of stock	Spring	£1.37 £1.14
29	ST9291 021 3861 Out of stock	Washer 5.1x8.3x0.8	£0.48 £0.40
30	ST9460 624 0320 Out of stock	E-clip 3.2	£0.48 £0.40
30	ST9461 620 0512 Out of stock	E-clip	£0.48 £0.40
32	ST9022 341 1430 Out of stock	Pan head screw IS M6x50x24	£1.55 £1.29
32	ST9022 341 1090 Out of stock	Pan head screw IS M5x40x25	£1.24 £1.03
33	ST9022 371 1020 In stock	Pan head screw IS M5x20	£0.86 £0.72
34	ST0000 958 2000 Out of stock	Washer 20x28x0.1	£1.15 £0.96
35	ST0000 958 1700 Out of stock	Washer 17x24x0.1	£1.13 £0.94
