Viking HB445.1 R - Chassis - Parts Diagram

Viking HB445.1 R - Chassis - Parts Diagram

Skip to the end of the images gallery

Skip to the beginning of the images gallery

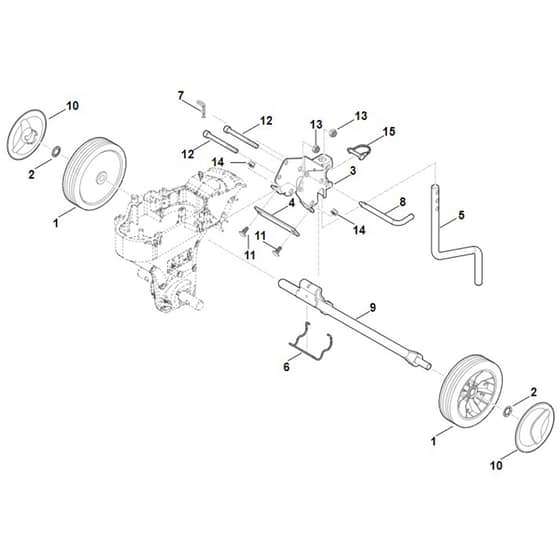

Viking HB445.1 R - Chassis - Parts Diagram

Viking HB445.1 R - Chassis - Parts Diagram

Description

Viking HB445.1 R - Chassis - Parts Diagram

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	1		ST6005 704 0801 Out of stock	Wheel		£17.96 £14.97
	2		ST9991 003 0556 In stock	Clamping ring 16		£1.68 £1.40
	3		ST6241 710 7601 Out of stock	Adapter		£70.64 £58.87
	4		ST6241 716 5130 Out of stock	Strud		£4.45 £3.71
	5		ST6242 716 1400 Out of stock	Brake spur		£45.23 £37.69
	6		ST6242 716 6500 Out of stock	Retaining clip		£12.04 £10.03
	7		ST6170 763 1000 Out of stock	Spring clip 28		£2.60 £2.17
	8		ST6242 007 1000 Out of stock	Socket bolt (Contains 7)		£14.62 £12.18
	9		ST6242 740 7400 Out of stock	Axle		£51.55 £42.96
	10		ST6340 704 0301 Out of stock	Wheel cap		£8.42 £7.02
	11		ST9027 068 1820 Out of stock	Flat head screw M8x20		£1.13 £0.94
	12		ST9045 318 2540 Out of stock	Socket head screw M10x90		£3.37 £2.81
	13		ST9212 260 1300 Out of stock	Hexagon nut M10		£1.00 £0.83
	14		ST9216 261 1100 Out of stock	Hexagon nut M8		£0.86 £0.72
	15		ST9396 021 3800 Out of stock	Linch pin 8x50		£8.42 £7.02
