Description

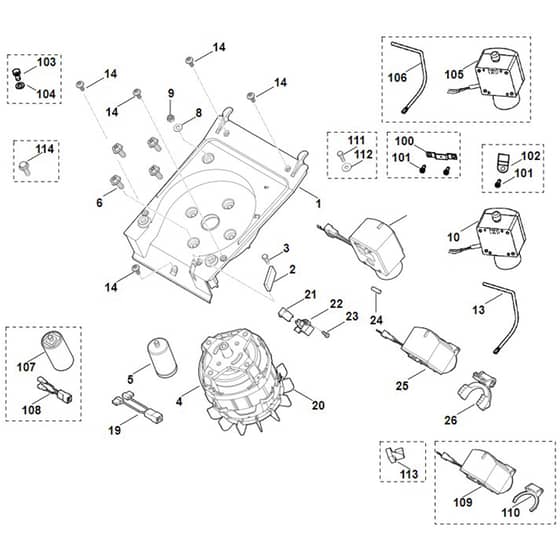

Viking GE 103 - Motor, Switch - Parts Diagram

Ref. Img. Part No. Details
  1 Insert
Insert
ST6007 760 7401 Out of stock
Insert
£47.83 £39.86

  2 Strap
Strap
ST6007 703 6300 Out of stock
Strap
£8.04 £6.70

  3 Self-tapping screw M5x12
Self-tapping screw M5x12
ST9039 488 0976 Out of stock
Self-tapping screw M5x12
£0.86 £0.72

  4 Electric motor 230V (18kW) (Contains 5+8+9+19)
Electric motor 230V (18kW) (Contains 5+8+9+19)
ST6007 600 0205 Out of stock
Electric motor 230V (18kW) (Contains 5+8+9+19)
£208.45 £173.71

  5 Condenser 16µF
Condenser 16µF
ST0000 605 1005 Out of stock
Condenser 16µF
£14.50 £12.08

  8 Shakeproof washer 8.4
Shakeproof washer 8.4
ST9327 630 0180 Out of stock
Shakeproof washer 8.4
£0.48 £0.40

  9 Hexagon nut M8
Hexagon nut M8
ST9211 259 1100 Out of stock
Hexagon nut M8
£0.50 £0.42

  10 Switch GB (Contains 24)
Switch GB (Contains 24)
ST6007 430 0532 Out of stock
Switch GB (Contains 24)
£92.41 £77.01

  14 Self-tapping screw P5x16
Self-tapping screw P5x16
ST9104 007 4270 In stock
Self-tapping screw P5x16
£0.97 £0.81

  19 Adapter cable
Adapter cable
ST0000 440 0710 Out of stock
Adapter cable
£12.04 £10.03

  20 Fan wheel ATB
Fan wheel ATB
ST6100 607 3010 Out of stock
Fan wheel ATB
£22.28 £18.57

  21 Stop switch
Stop switch
ST6005 435 0410 Out of stock
Stop switch
£7.82 £6.52

  22 Support
Support
ST6007 435 6000 Out of stock
Support
£3.48 £2.90

  23 Self-tapping screw M5x12
Self-tapping screw M5x12
ST9039 488 0974 Out of stock
Self-tapping screw M5x12
£0.86 £0.72

  24 Fuse 13A
Fuse 13A
ST0751 031 5004 Out of stock
Fuse 13A
£4.96 £4.13

  101 Self-tapping screw P5x12
Self-tapping screw P5x12
ST9104 007 4260 Out of stock
Self-tapping screw P5x12
£0.83 £0.69

  103 Hexagon head screw M8x16
Hexagon head screw M8x16
ST9008 318 1780 Out of stock
Hexagon head screw M8x16
£1.13 £0.94

  104 E-clip 8.4
E-clip 8.4
ST9460 624 4030 Out of stock
E-clip 8.4
£0.40 £0.33

  107 Condenser 16µF
Condenser 16µF
ST6100 605 1000 Out of stock
Condenser 16µF
£15.01 £12.51

  108 Adapter cable
Adapter cable
ST0000 440 0702 Out of stock
Adapter cable
£11.18 £9.32

  112 Washer 53
Washer 53
ST9307 020 0120 Out of stock
Washer 53
£0.40 £0.33

  113 Sheet metal holder
Sheet metal holder
ST6007 435 6100 Out of stock
Sheet metal holder
£3.43 £2.86

  114 Screw M8x16
Screw M8x16
ST9025 313 5000 Out of stock
Screw M8x16
£5.52 £4.60
