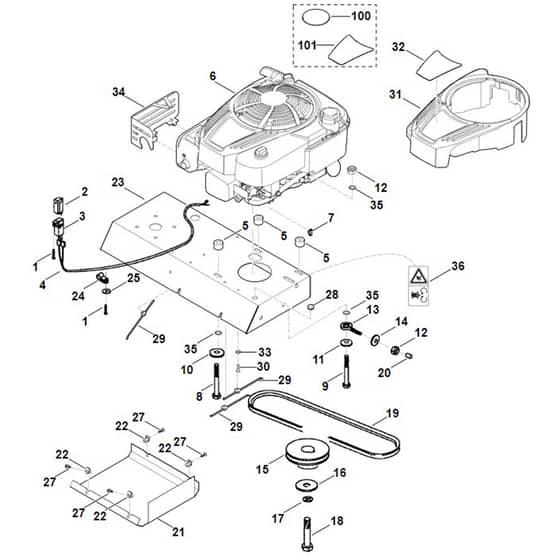

Viking GB 370.1 S - Engine, Drive - Parts Diagram

Description

Viking GB 370.1 S - Engine, Drive - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	ST9104 007 4270 In stock	Self-tapping screw P5x16	£0.97 £0.81
2	ST6001 430 0210 Out of stock	Stop switch	£6.08 £5.07
3	ST6005 701 1620 Out of stock	Insert	£2.50 £2.08
5	ST6000 708 3740 Out of stock	Spacer tube	£23.16 £19.30
6	ST6001 011 1820 Out of stock	B&S four-stroke-engine 12Q902-0171-B1 122Q02-0171-B1 122Q02-0147-B1 122Q02-0163-H1 (Contains 31)	£699.83 £583.19
7	ST9482 435 0820 Out of stock	Woodruff key 4x6.5	£1.00 £0.83
8	ST9007 318 1950 Out of stock	Hexagon head screw M8x50	£5.52 £4.60
10	ST9307 021 0180 Out of stock	Washer 84	£0.40 £0.33
11	ST9289 021 0190 Out of stock	Washer 9	£0.40 £0.33
12	ST9212 260 1100 Out of stock	Hexagon nut M8	£0.61 £0.51
13	ST9991 003 1060 Out of stock	Eye bolt M8x30	£1.48 £1.23
14	ST9309 021 0180 Out of stock	Washer 8.4	£0.40 £0.33
15	ST6001 704 1010 Out of stock	V-belt pulley	£99.53 £82.94
16	ST9309 021 0200 Out of stock	Washer 10.5	£0.50 £0.42
17	ST9460 624 4031 Out of stock	E-clip 10.5	£0.50 £0.42
18	ST9008 319 9066 Out of stock	Hexagon head screw 3/8"x1"	£1.48 £1.23
18	ST9008 319 9077 Out of stock	Hexagon head screw 3/8"x1"	£1.48 £1.23
19	ST6001 704 2100 Out of stock	V-belt	£25.03 £20.86
20	ST9302 929 4510 Out of stock	Cap	£0.00 £0.00
21	ST6001 760 9600 Out of stock	Guard plate (Contains 22+27)	£59.29 £49.41
22	ST9286 929 0050 Out of stock	Slip-on nut 50x2x8	£1.13 £0.94
24	ST0751 040 4196 Out of stock	Pipe clamp	£2.12 £1.77
25	ST9307 020 0120 Out of stock	Washer 53	£0.40 £0.33
28	ST0000 989 0615 Out of stock	Grommet	£5.52 £4.60
29	ST6242 448 1200 Out of stock	Lead retainer	£5.52 £4.60
30	ST9039 488 0974 Out of stock	Self-tapping screw M5x12	£0.86 £0.72
32	ST6001 967 3805 Out of stock	Name plate GB 370 S	£4.85 £4.04
33	ST9330 630 0120 Out of stock	Shakeproof washer 53	£0.40 £0.33
35	ST9330 630 0180 Out of stock	Shakeproof washer 8.4	£0.40 £0.33
36	ST0000 967 7220 Out of stock	Warning note	£5.52 £4.60
