Viking AMS127 - Blade Drive - Parts Diagram

Name: Viking AMS127 - Blade Drive - Parts Diagram
SKU: ams127_blade_drive-group
Price: 0.33 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Viking AMS127 - Blade Drive - Parts Diagram

Description

Viking AMS127 - Blade Drive - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
-1	ST6170 700 3530 Out of stock	Shaft left assy. (Contains 1+3+5-9+12+16+27+28+32)	£176.95 £147.46
1	ST6170 700 2525 Out of stock	V-belt pulley	£85.93 £71.61
1	ST6170 700 3540 Out of stock	Shaft right assy. (Contains 4-8+12+16+27+28+32)	£149.04 £124.20
3	ST6170 702 0720 Out of stock	Shaft left	£77.99 £64.99
4	ST6170 702 0730 Out of stock	Shaft right	£74.88 £62.40
5	ST6170 702 1710 Out of stock	Spacer ring	£7.82 £6.52
6	ST0000 702 6600 In stock	Washer	£4.40 £3.67
7	ST6170 702 2210 Out of stock	Protection disk	£5.47 £4.56
8	ST6170 702 6910 Out of stock	Bearing bracket	£93.22 £77.68
9	ST6170 704 7000 Out of stock	Carrier	£20.45 £17.04
10	ST6170 760 0820 Out of stock	Clamping arm	£41.52 £34.60
11	ST6170 760 7500 Out of stock	Toothed-belt pulley 20Z (Contains 25+26)	£41.15 £34.29
12	ST6170 760 7510 Out of stock	Toothed-belt pulley 28Z	£70.69 £58.91
13	ST6170 764 0910 Out of stock	Toothed belt double-sided	£151.49 £126.24
14	ST9008 318 1780 Out of stock	Hexagon head screw M8x16	£1.13 £0.94
15	ST9008 319 1950 Out of stock	Hexagon head screw M8x50	£1.87 £1.56
16	ST9010 345 2431 Out of stock	Hexagon head screw M10x1x35	£1.76 £1.47
17	ST9039 488 1839 Out of stock	Self-tapping screw M8x25	£5.52 £4.60
18	ST9045 318 1950 Out of stock	Pan head screw M8x50	£5.52 £4.60
19	ST9133 381 2510 Out of stock	Grub screw M10x80	£3.11 £2.59
20	ST9210 259 1100 Out of stock	Hexagon nut M8	£0.64 £0.53
21	ST9210 261 1300 Out of stock	Hexagon nut M10	£1.00 £0.83
22	ST9212 260 1100 Out of stock	Hexagon nut M8	£0.61 £0.51
23	ST9241 226 1301 Out of stock	Cap nut M10	£1.24 £1.03
25	ST9456 621 3860 Out of stock	Circlip 35x1.5	£1.33 £1.11
26	ST9503 003 6527 Out of stock	Grooved ball bearing 6202-2RS	£9.76 £8.13
27	ST9503 003 6841 Out of stock	Grooved ball bearing 6205-2RS	£15.14 £12.62

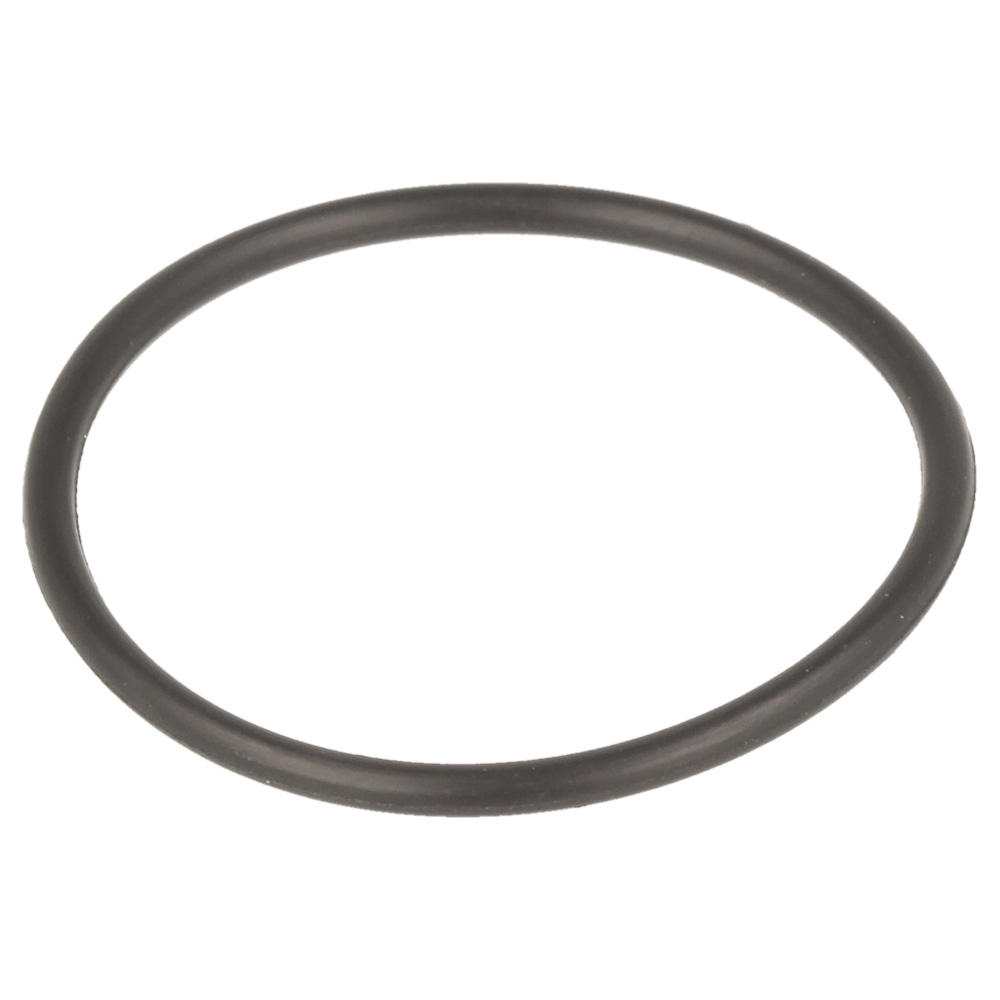

28	ST9645 945 7699 Out of stock	O-ring 23x15	£0.70 £0.58
29	ST9991 003 1045 Out of stock	Cage nut M6	£1.37 £1.14
30	ST9470 435 3870 Out of stock	Key 8x7x20	£2.35 £1.96
31	ST6170 704 2150 In stock	V-belt	£59.82 £49.85
32	ST6170 702 1800 Out of stock	Washer	£2.12 £1.77
33	ST9045 318 2500 Out of stock	Socket head screw M10x70	£2.87 £2.39
34	ST6170 704 9425 Out of stock	Belt guide right	£18.49 £15.41
35	ST9039 488 0996 In stock	Self-tapping screw M6x12	£0.83 £0.69
37	ST9018 318 1250 Out of stock	Hexagon head screw M6x10	£0.86 £0.72
38	ST9039 488 1784 Out of stock	Self-tapping screw M8x16	£1.13 £0.94
39	ST6170 704 9420 Out of stock	Belt guide left	£23.42 £19.52
40	ST9309 021 0180 Out of stock	Washer 8.4	£0.40 £0.33
