TM 35 H - 2009 - 2T2644433/09 - Mountfield Ride On Mower Transmission Diagram

TM 35 H - 2009 - 2T2644433/09 - Mountfield Ride On Mower Transmission Diagram
TM 35 H - 2009 - 2T2644433/09 - Mountfield Ride On Mower Transmission Diagram

Description

Mountfield TM 35 H Parts Diagram

Product Name - TM 35 H

Model Year - 2009

Model Type - NJTP 92 Hydro

Art.N - 2T2644433/09

Be the first to review this product
0 product questions
Ref. Img. Part No. Details
  1 Electromagnetic Clutch MO118399063/1
Electromagnetic Clutch
 In stock
£328.45 £273.71

  2 Screw MO112737320/0
Screw
 Out of stock
£4.20 £3.50

  3 Washer MO112543000/0
Washer
 Out of stock
£1.49 £1.24

  4 Tension Spring MO122430217/0
Tension Spring
 Out of stock
£9.06 £7.55

  5 Pulley MO125601566/1
Pulley
 Out of stock
£29.53 £24.61

  6 Spacer MO125160021/0
Spacer
 Out of stock
£5.63 £4.69

  7 Lever MO382318217/1
Lever
 Out of stock
£23.44 £19.53

  10 Antifriction Washer MO327670055/0
Antifriction Washer
 Out of stock
£1.90 £1.58

  11 Pin MO125510087/0
Pin
 Out of stock
£4.87 £4.06

  12 Washer MO112523060/0
Washer
 In stock
£1.49 £1.24

  13 Nut MO112155000/0
Nut
 In stock
£1.49 £1.24

  14 Pulley MO125601554/0
Pulley
 In stock
£24.71 £20.59

  17 Spring MO125430260/1
Spring
 Out of stock
£6.23 £5.19

  18 Bracket MO325755049/0
Bracket
 Out of stock
£2.98 £2.48

  19 Tie Rod MO125840005/0
Tie Rod
 Out of stock
£2.84 £2.37

  20 Nut MO112293200/0
Nut
 In stock
£1.49 £1.24

  21 Screw MO112818690/0
Screw
 Out of stock
£1.61 £1.34

  22 Nut MO112293201/0
Nut
 In stock
£1.63 £1.36

  23 Trapezoidal Belt MO135062020/1
Trapezoidal Belt
 In stock
£41.87 £34.89

  41 Pin MO125510100/0
Pin
 Out of stock
£6.10 £5.08

  41 Pin From 01-9-2013 MO125160080/0
Pin From 01-9-2013
 Out of stock
£7.72 £6.43

  42 Screw MO112691800/0
Screw
 Out of stock
£1.49 £1.24

  43 Pulley Bearing hole ø16 To 31-8-2013 MO125601555/0
Pulley Bearing hole ø16 To 31-8-2013
 In stock
£28.18 £23.48

  43 Pulley Bearing hole ø15 From 01-9-2013 MO325601599/0
Pulley Bearing hole ø15 From 01-9-2013
 In stock
£18.42 £15.35

  46 Spacer MO125160024/2
Spacer
 Out of stock
£7.98 £6.65

  47 Left Spacer MO125160030/2
Left Spacer
 Out of stock
£6.23 £5.19

  48 Screw MO112691400/0
Screw
 Out of stock
£1.49 £1.24

  49 Screw MO112691115/0
Screw
 Out of stock
£1.49 £1.24

  50 Pulley MO382601522/0
Pulley
 In stock
£23.02 £19.18

  51 Washer MO122671653/0
Washer
 Out of stock
£1.49 £1.24

  53 Transmission - Tuff Torq K46S MO118400960/0
Transmission - Tuff Torq K46S
 Out of stock
£1,394.03 £1,161.69

  55 Nut MO112154210/0
Nut
 In stock
£1.63 £1.36

  56 Support MO382785149/0
Support
 Out of stock
£23.84 £19.87

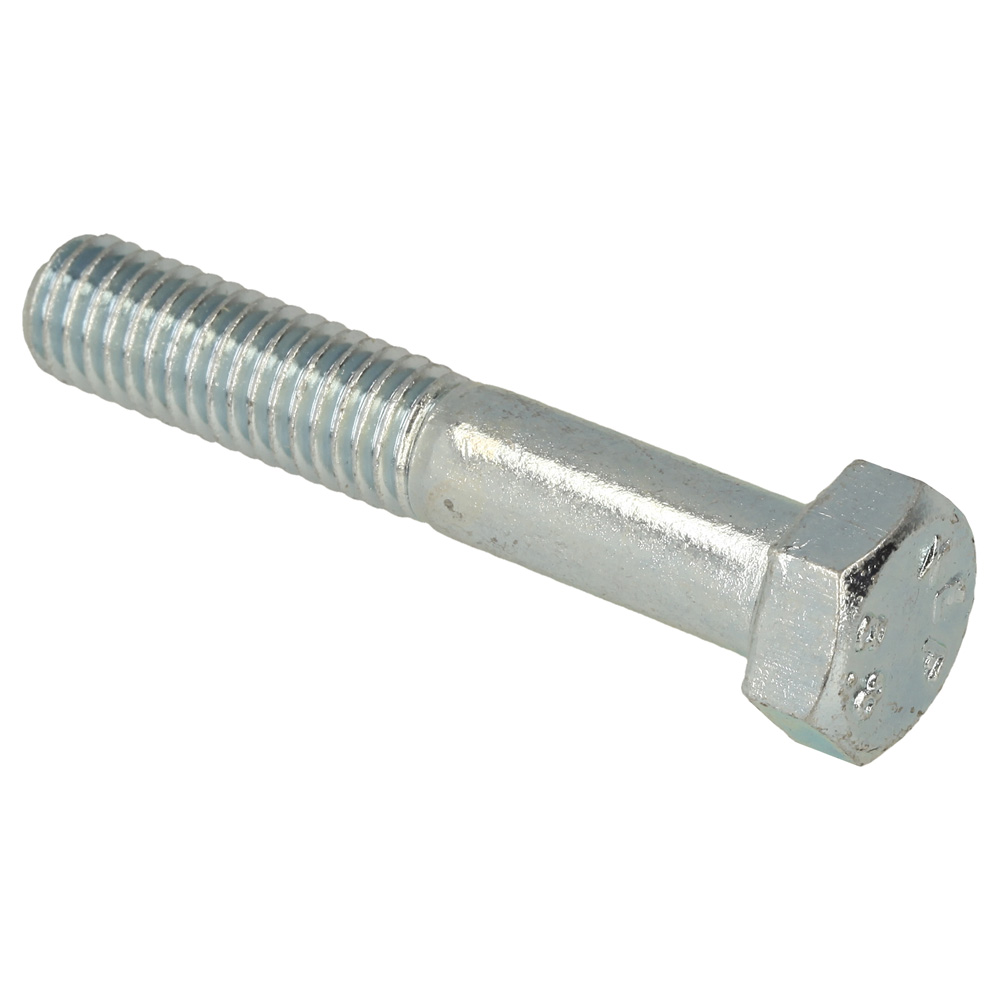

  57 Screw MO112691200/0
Screw
 Out of stock
£1.63 £1.36

  58 Washer MO112521350/0
Washer
 In stock
£1.49 £1.24

  60 Screw MO112792611/0
Screw
 Out of stock
£1.49 £1.24

  62 Lever MO325318157/0
Lever
 Out of stock
£5.15 £4.29

  63 Screw MO112793102/0
Screw
 In stock
£1.49 £1.24

  64 Elastic Washer MO112369500/0
Elastic Washer
 Out of stock
£1.36 £1.13

  65 Antifriction Washer MO325670011/0
Antifriction Washer
 Out of stock
£1.49 £1.24

  67 Rod MO125033033/1
Rod
 Out of stock
£2.04 £1.70

  68 Crown Fastener MO112604896/0
Crown Fastener
 Out of stock
£1.49 £1.24

  69 Spacer MO125160031/0
Spacer
 Out of stock
£3.25 £2.71

  70 Washer MO112521410/0
Washer
 Out of stock
£1.75 £1.46

  71 Washer MO325670025/0
Washer
 Out of stock
£3.92 £3.27

  74 Dump Valve Decal Label [Hydro] MO114361451/0
Dump Valve Decal Label [Hydro]
 Out of stock
£2.98 £2.48


Description

Mountfield TM 35 H Parts Diagram

Product Name - TM 35 H

Model Year - 2009

Model Type - NJTP 92 Hydro

Art.N - 2T2644433/09
