TM 35 H - 2009 - 2T2644433/09 - Mountfield Ride On Mower Engine - ST. TRE0701 Diagram

Description

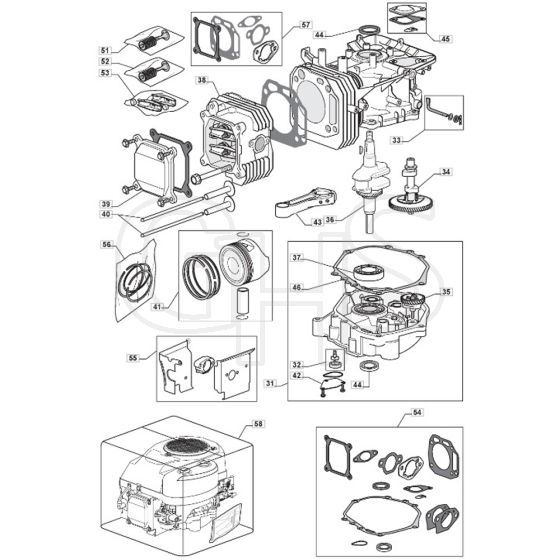

Mountfield TM 35 H Parts Diagram

Product Name - TM 35 H

Model Year - 2009

Model Type - NJTP 92 Hydro

Art.N - 2T2644433/09

Be the first to review this product

0 product questions

	Part No.	Details
1	MO118550445/0 Out of stock	Crankcase Cover Assy	£182.84 £152.37
32	MO118550224/1 Out of stock	Oil Pump Assy	£20.11 £16.76
33	MO118550226/0 Out of stock	Shaft. Governor Arm Assy	£10.43 £8.69
34	MO118550243/0 Out of stock	Camshaft Assy	£107.68 £89.73
35	MO118550347/0 Out of stock	Speed Governor Assy	£18.96 £15.80
36	MO118550232/0 Out of stock	Crankshaft	£189.62 £158.02
37	MO118550227/0 Out of stock	Ball Bearing	£20.58 £17.15
38	MO118550233/0 Out of stock	Cylinder Head Assy	£230.26 £191.88
40	MO118550242/1 Out of stock	Push Rods Assy	£5.50 £4.58
41	MO118550329/1 Out of stock	Piston Assy	£92.11 £76.76
42	MO118550223/0 Out of stock	Oli Pump Cover	£5.42 £4.52
43	MO118550231/1 Out of stock	Connecting Rod Assy	£54.18 £45.15
44	MO118551418/0 Out of stock	Oil Seal	£11.51 £9.59
45	MO118550446/0 Out of stock	Gasket Assy	£20.65 £17.21
46	MO118550355/1 Out of stock	Crankcase Gasket	£16.25 £13.54
51	MO118550240/0 Out of stock	Intake Valve Assy	£37.93 £31.61
52	MO118550241/0 Out of stock	Exhaust Valve Assy	£35.21 £29.34
53	MO118550334/0 Out of stock	Valve Arm Set	£17.41 £14.51
54	MO118550450/1 Out of stock	Engine Gasket Set	£88.04 £73.37
55	MO118550220/0 Out of stock	Engine Guard Assy	£31.15 £25.96
56	MO118550447/0 Out of stock	Piston. Ring Set	£29.80 £24.83
57	MO118550449/0 In stock	Cylinder Head Gasket Set	£47.40 £39.50
