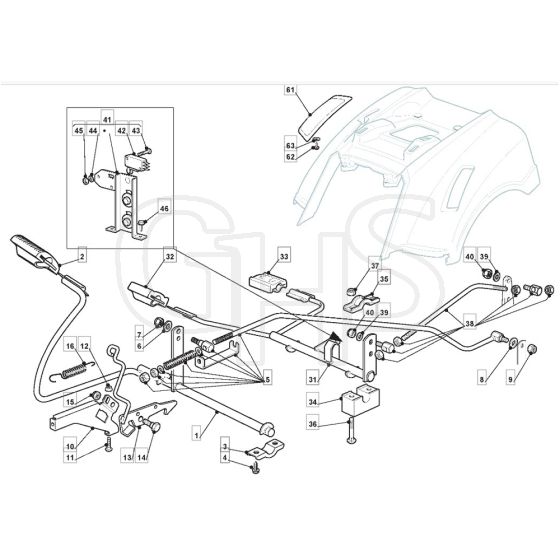

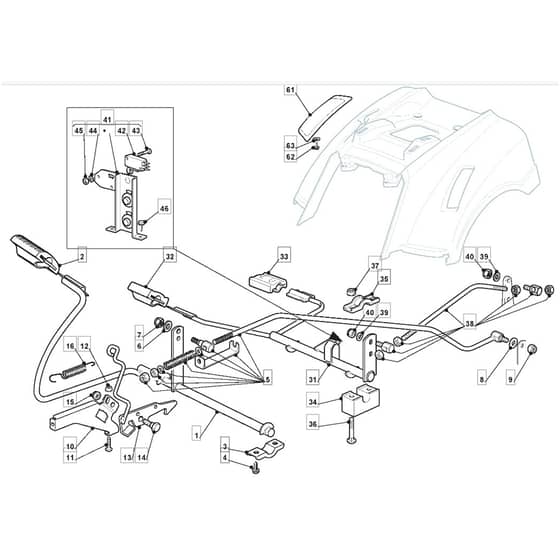

TM 35 H - 2009 - 2T2644433/09 - Mountfield Ride On Mower Controls Diagram

Name: TM 35 H - 2009 - 2T2644433/09 - Mountfield Ride On Mower Controls Diagram
SKU: tm_35_h_2t2644433_09_controls-group
Price: 1.07 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

TM 35 H - 2009 - 2T2644433/09 - Mountfield Ride On Mower Controls Diagram

Description

Mountfield TM 35 H Parts Diagram

Product Name - TM 35 H

Model Year - 2009

Model Type - NJTP 92 Hydro

Art.N - 2T2644433/09

Be the first to review this product

0 product questions

	Part No.	Details
1	MO382500029/1 Out of stock	Pedal	£64.88 £54.07
2	MO325110416/0 Out of stock	Clamp Cover From 01-9-2010	£10.43 £8.69
2	MO125110267/0 Out of stock	Clamp Cover To 31-8-2010	£3.65 £3.04
3	MO327546015/2 Out of stock	Plate	£1.49 £1.24
4	MO112729601/1 Out of stock	Screw	£1.48 £1.23
5	MO382000542/1 Out of stock	Rod	£37.93 £31.61
6	MO112521350/0 In stock	Washer	£1.49 £1.24
10	MO325785261/0 Out of stock	Support	£6.37 £5.31
11	MO112815200/0 In stock	Screw	£1.49 £1.24
12	MO112292102/0 In stock	Nut	£1.63 £1.36
13	MO382000531/0 Out of stock	Rod	£335.26 £279.38
14	MO122524970/2 Out of stock	Fulcrum Pin	£1.82 £1.52
15	MO112155000/0 In stock	Nut	£1.49 £1.24
16	MO125430213/0 Out of stock	Spring	£1.63 £1.36
31	MO382000605/1 Out of stock	Gear Control Axle From 01-9-2010	£65.96 £54.97
31	MO382000383/1 Out of stock	Gear Control Axle To 31-8-2010	£64.93 £54.11
32	MO325110274/0 Out of stock	Clamp Cover Front To 31-8-2010	£6.91 £5.76
32	MO325110417/0 Out of stock	Clamp Cover Front From 01-9-2010	£10.43 £8.69
33	MO325110331/0 Out of stock	Clamp Cover Rear To 31-8-2010	£6.77 £5.64
33	MO325110418/0 Out of stock	Clamp Cover Rear From 01-9-2010	£10.43 £8.69
34	MO325785185/0 Out of stock	Support	£3.53 £2.94
36	MO112815245/0 Out of stock	Screw	£1.49 £1.24
37	MO112154510/0 In stock	Nut	£1.49 £1.24
38	MO382000543/0 Out of stock	Rod	£35.21 £29.34
39	MO112523040/0 In stock	Washer	£1.49 £1.24
41	MO382394853/0LC Out of stock	Switch Ass.Y	£54.18 £45.15
42	MO119410609/1LC In stock	Microswitch	£26.14 £21.78
43	MO112735602/0 Out of stock	Screw	£1.49 £1.24
44	MO112581100/0 Out of stock	Grower	£1.28 £1.07
45	MO112290791/0 Out of stock	Nut	£1.49 £1.24
46	MO112735110/0 Out of stock	Screw	£1.49 £1.24
61	MO325207171/1 Out of stock	Cover (Hydro)	£6.64 £5.53
62	MO112735402/0 In stock	Screw	£1.49 £1.24
63	MO112523050/0 In stock	Washer M6 6.6 X 24 X 2	£1.49 £1.24
