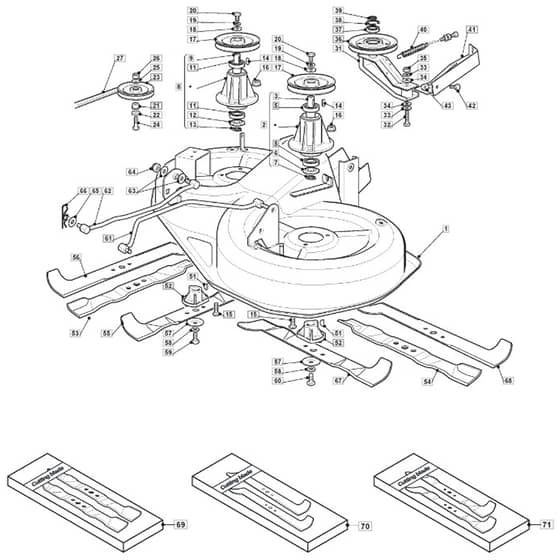

TM 35 H - 2009 - 2T2644433/09 - Mountfield Ride On Mower 92cm Deck Diagram

TM 35 H - 2009 - 2T2644433/09 - Mountfield Ride On Mower 92cm Deck Diagram
TM 35 H - 2009 - 2T2644433/09 - Mountfield Ride On Mower 92cm Deck Diagram

Description

Mountfield TM 35 H Parts Diagram

Product Name - TM 35 H

Model Year - 2009

Model Type - NJTP 92 Hydro

Art.N - 2T2644433/09

Be the first to review this product
0 product questions
Ref. Img. Part No. Details
  1 Cutting Plate Black MO382564075/1
Cutting Plate Black
 In stock
£422.98 £352.48

  2 Main Blade Shaft Ass.Y MO382207202/1LC
Main Blade Shaft Ass.Y
 Out of stock
£87.36 £72.80

  3 Main Blade Shaft MO125020834/0
Main Blade Shaft
 Out of stock
£29.24 £24.37

  8 Secondary Blade Shaft Ass.Y MO382207203/1LC
Secondary Blade Shaft Ass.Y
 Out of stock
£87.36 £72.80

  9 Secondary Blade Shaft MO125020803/0
Secondary Blade Shaft
 Out of stock
£29.24 £24.37

  11 Bearing MO119216047/0
Bearing
 In stock
£15.18 £12.65

  12 Dust Cover Disc MO325160501/1
Dust Cover Disc
 Out of stock
£1.49 £1.24

  13 Seeger MO112609260/0
Seeger
 Out of stock
£1.75 £1.46

  14 Feather MO112139480/0
Feather
 In stock
£1.63 £1.36

  15 Screw From 01-9-2016 MO9959-0825-16
Screw From 01-9-2016
 Out of stock
£1.49 £1.24

  15 Screw To 31-8-2016 MO112818700/0
Screw To 31-8-2016
 In stock
£1.49 £1.24

  16 Nut MO112154210/0
Nut
 In stock
£1.63 £1.36

  17 Pulley MO125601563/0
Pulley
 Out of stock
£41.99 £34.99

  18 Washer MO125670007/0
Washer
 Out of stock
£1.90 £1.58

  19 Grower MO112583500/0
Grower
 Out of stock
£1.49 £1.24

  20 Screw MO112793102/0
Screw
 In stock
£1.49 £1.24

  21 Spacer From 01-9-2013 MO125160079/0
Spacer From 01-9-2013
 Out of stock
£3.92 £3.27

  21 Spacer MO125160007/1
Spacer
 Out of stock
£3.12 £2.60

  23 Pulley Bearing hole ø15 From 01-9-2013 MO325601599/0
Pulley Bearing hole ø15 From 01-9-2013
 In stock
£18.42 £15.35

  23 Pulley Bearing hole ø16 To 31-8-2013 MO125601555/0
Pulley Bearing hole ø16 To 31-8-2013
 In stock
£28.18 £23.48

  24 Screw MO112691115/0
Screw
 Out of stock
£1.49 £1.24

  25 Washer MO112523060/0
Washer
 In stock
£1.49 £1.24

  26 Nut MO112155000/0
Nut
 In stock
£1.49 £1.24

  27 Drive Belt MO135061508/0LC
Drive Belt
 In stock
£61.50 £51.25

  31 Lever MO382318141/2
Lever
 Out of stock
£35.21 £29.34

  32 Screw MO112691700/0
Screw
 Out of stock
£1.75 £1.46

  33 Washer MO112523070/0
Washer
 Out of stock
£1.49 £1.24

  34 Antifriction Washer MO322672152/0
Antifriction Washer
 Out of stock
£1.75 £1.46

  36 Pulley MO125601564/1
Pulley
 Out of stock
£43.33 £36.11

  37 Bearing MO119216048/0
Bearing
 In stock
£17.62 £14.68

  38 Seeger MO112610800/0
Seeger
 Out of stock
£1.63 £1.36

  39 Seeger MO112609200/0
Seeger
 Out of stock
£1.49 £1.24

  40 Wire MO382004618/0
Wire
 In stock
£21.95 £18.29

  41 Clamp MO382774215/3
Clamp
 Out of stock
£29.80 £24.83

  42 Screw MO112792611/0
Screw
 Out of stock
£1.49 £1.24

  43 Nut MO112293201/0
Nut
 In stock
£1.63 £1.36

  51 Key MO112139100/0
Key
 In stock
£1.49 £1.24

  52 Blade Holder MO125463200/0
Blade Holder
 In stock
£8.83 £7.36

  53 Right Mulching Blade MO182004352/0
Right Mulching Blade
 Out of stock
£19.37 £16.14

  54 Left Mulching. Blade MO181004346/3
Left Mulching. Blade
 In stock
£13.75 £11.46

  55 Right Mulching Blade. Winged MO182004354/0
Right Mulching Blade. Winged
 In stock
£23.04 £19.20

  56 Right Blade. Winged MO182004345/1
Right Blade. Winged
 In stock
£22.63 £18.86

  57 Elastic Disc MO122160400/0
Elastic Disc
 In stock
£1.75 £1.46

  58 Washer MO112523080/0
Washer
 In stock
£1.49 £1.24

  59 Screw MO112735695/1
Screw
 In stock
£3.65 £3.04

  60 Screw MO112735694/0
Screw
 In stock
£1.90 £1.58

  61 Equalizer Rod MO382000535/0LC
Equalizer Rod
 Out of stock
£33.86 £28.22

  62 Equalizer Rod MO382000533/0LC
Equalizer Rod
 Out of stock
£33.86 £28.22

  63 Washer MO325670008/1
Washer
 In stock
£1.49 £1.24

  64 Nut MO112156602/0
Nut
 In stock
£1.36 £1.13

  66 Cotter Pin MO124487998/0
Cotter Pin
 In stock
£1.48 £1.23

  67 Left Mulching Blade. Winged MO182004353/0
Left Mulching Blade. Winged
 In stock
£23.04 £19.20

  68 Left Blade. Winged MO182004344/1
Left Blade. Winged
 In stock
£22.63 £18.86

  69 Mulching Blades. Right And Left Stiga Packed into 181004346.3 + 182004352.0 MO1134-9223-01
Mulching Blades. Right And Left Stiga Packed into 181004346.3 + 182004352.0
 Out of stock
£41.87 £34.89

  70 Mulching Winged Blade. Right And Left Stiga Packed into 182004353.0 + 182004354.0 MO1134-9222-01
Mulching Winged Blade. Right And Left Stiga Packed into 182004353.0 + 182004354.0
 Out of stock
£58.88 £49.07

  71 Winged Blade 92cm.36 MO1134-9224-01
Winged Blade 92cm.36" [Stiga Pack]
 Out of stock
£57.58 £47.98


Description

Mountfield TM 35 H Parts Diagram

Product Name - TM 35 H

Model Year - 2009

Model Type - NJTP 92 Hydro

Art.N - 2T2644433/09
