Tanaka TPS-200-2510 - Z071201 - Gear Case 1

Tanaka TPS-200-2510 - Z071201 - Gear Case 1

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Tanaka TPS-200-2510 - Z071201 - Gear Case 1

Tanaka TPS-200-2510 - Z071201 - Gear Case 1

Description

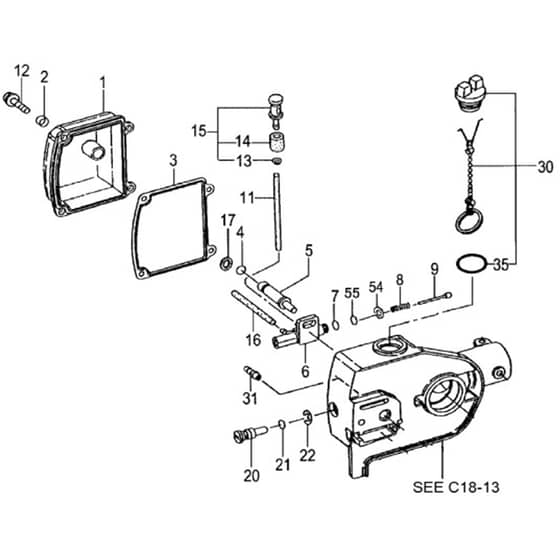

Tanaka TPS-200-2510 Chainsaw - Gear Case 1 Parts Diagram

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	1		TK6686138 In stock	Oil Tank Cover		£3.04 £2.53
	2		TK6685961 Out of stock	Collar 3		£1.69 £1.41
	3		TK6699567 Out of stock	Oil Tank Gasket		£4.81 £4.01
	4		TK6695661 Out of stock	O-Ring P-5		£1.73 £1.44
	5		TK6689757 Out of stock	Step Bolt A		£6.02 £5.02
	6		TK6686487 Out of stock	Oil Pump Comp.		£25.52 £21.27
	8		TK6690381 Out of stock	Oil Pump Spring		£1.69 £1.41
	9		TK6686608 Out of stock	Oil Pump Piston Comp.		£3.04 £2.53
	11		TK6692414 Out of stock	Fuel Pipe 3X5X60		£1.73 £1.44
	12		TK6695403 Out of stock	Small Screw 4X12Ws		£1.73 £1.44
	13		TK6684661 Out of stock	Washer 5		£1.73 £1.44
	14		TK6690917 Out of stock	Oil Filter		£1.69 £1.41
	15		TK6690913 Out of stock	Filter Ass'Y		£3.04 £2.53
	16		TK6692415 Out of stock	Fuel Pipe 3X5X75		£1.73 £1.44
	17		TK6695239 Out of stock	8 Push Nut		£1.73 £1.44
	20		TK6691066 Out of stock	Oil Pump Adjuster		£6.02 £5.02
	22		TK6695311 Out of stock	Stop Ring E-6		£1.73 £1.44
	30		TK6692050 Out of stock	Oil Tank Cap Ass'Y		£16.52 £13.77
	31		TK6686637 Out of stock	Banjo Oil Pump		£1.69 £1.41
	35		TK6698966 Out of stock	O-Ring P-15		£1.73 £1.44
	54		TK6695187 Out of stock	Washer 2		£1.73 £1.44
	55		TK6695656 Out of stock	O-Ring 1.4		£1.73 £1.44

Description

Tanaka TPS-200-2510 Chainsaw - Gear Case 1 Parts Diagram
