Description

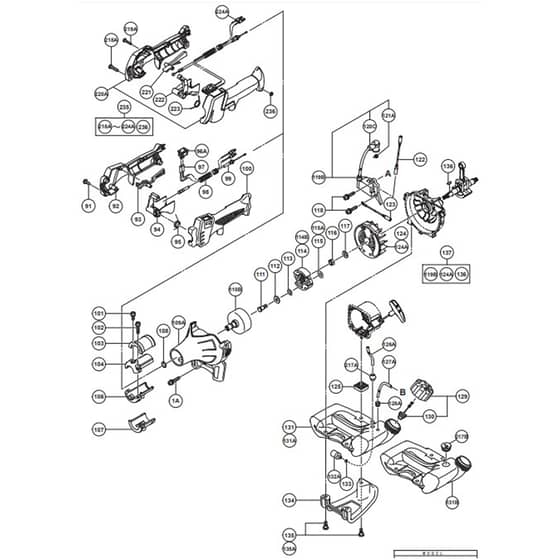

Tanaka TCG-24EASP Brushcutter - Flywheel Assembly Parts Diagram

Ref. Img. Part No. Details
  91 Tapping Screw (W.Flange) D4X16 (Black) 1 For Europe (
Tapping Screw (W.Flange) D4X16 (Black) 1 For Europe (
TK305812 Out of stock
Tapping Screw (W.Flange) D4X16 (Black) 1 For Europe (
£2.10 £1.75

  92 Handle (B) 1 For Europe (S
Handle (B) 1 For Europe (S
TK6696487 Out of stock
Handle (B) 1 For Europe (S
£5.34 £4.45

  93 Lock Lever 1 For Euro
Lock Lever 1 For Euro
TK6696490 Out of stock
Lock Lever 1 For Euro
£1.34 £1.12

  94 Lever 1 Except For Gbr (Sl).Isl (S
Lever 1 Except For Gbr (Sl).Isl (S
TK6696488 Out of stock
Lever 1 Except For Gbr (Sl).Isl (S
£1.34 £1.12

  95 Spring (A) 1 Except For Gbr (Sl).Isl (S
Spring (A) 1 Except For Gbr (Sl).Isl (S
TK6696489 Out of stock
Spring (A) 1 Except For Gbr (Sl).Isl (S
£1.34 £1.12

  96 (96A) Stop Switch 1 Except For Gbr (Sl).Isl (S
(96A) Stop Switch 1 Except For Gbr (Sl).Isl (S
TK6601275 Out of stock
(96A) Stop Switch 1 Except For Gbr (Sl).Isl (S
£2.06 £1.72

  99 Throttle Wire Comp. 1 Except For Gbr (Sl).Isl (S
Throttle Wire Comp. 1 Except For Gbr (Sl).Isl (S
TK6696560 Out of stock
Throttle Wire Comp. 1 Except For Gbr (Sl).Isl (S
£5.34 £4.45

  99 Throttle Wire Comp. 1 For (
Throttle Wire Comp. 1 For (
TK6696593 Out of stock
Throttle Wire Comp. 1 For (
£6.35 £5.29

  100 Handle (A) 1 For Europe (S
Handle (A) 1 For Europe (S
TK6696486 Out of stock
Handle (A) 1 For Europe (S
£5.34 £4.45

  101 Hex.Hole Bolt M5X12.S
Hex.Hole Bolt M5X12.S
TK6684667 Out of stock
Hex.Hole Bolt M5X12.S
£1.73 £1.44

  102 Hex. Hole Bolt 5X22.S
Hex. Hole Bolt 5X22.S
TK6695492 Out of stock
Hex. Hole Bolt 5X22.S
£1.73 £1.44

  103 Anti Vibe Rubber (A)
Anti Vibe Rubber (A)
TK6696963 Out of stock
Anti Vibe Rubber (A)
£2.63 £2.19

  104 Pipe Holder (A)
Pipe Holder (A)
TK6698643 Out of stock
Pipe Holder (A)
£2.63 £2.19

  106 Pipe Holder (B)
Pipe Holder (B)
TK6698644 Out of stock
Pipe Holder (B)
£2.63 £2.19

  107 Anti Vibe Rubber (B)
Anti Vibe Rubber (B)
TK6696964 Out of stock
Anti Vibe Rubber (B)
£2.63 £2.19

  108 Retaining Ring For D12 Shaft (10 Pcs.)
Retaining Ring For D12 Shaft (10 Pcs.)
TK939542 Out of stock
Retaining Ring For D12 Shaft (10 Pcs.)
£1.24 £1.03

  109 (109A) Fan Case
(109A) Fan Case
TK6699129 Out of stock
(109A) Fan Case
£14.52 £12.10

  110 (110B) Clutch Shaft
(110B) Clutch Shaft
TK6699434 Out of stock
(110B) Clutch Shaft
£16.00 £13.33

  111 Step Bolt
Step Bolt
TK6689627 Out of stock
Step Bolt
£1.69 £1.41

  112 Bent Washer 8
Bent Washer 8
TK6684648 Out of stock
Bent Washer 8
£1.73 £1.44

  113 Clutch Plate (A)
Clutch Plate (A)
TK6696546 Out of stock
Clutch Plate (A)
£1.34 £1.12

  114 (114B) Clutch 1 For Gbr (Sl).Irl (S
(114B) Clutch 1 For Gbr (Sl).Irl (S
TK6601431 Out of stock
(114B) Clutch 1 For Gbr (Sl).Irl (S
£31.46 £26.22

  115 Clutch Washer (B)
Clutch Washer (B)
TK6696547 Out of stock
Clutch Washer (B)
£1.34 £1.12

  115 (115A) Clutch Washer (B) 2 For Gbr (Sl).Irl (S
(115A) Clutch Washer (B) 2 For Gbr (Sl).Irl (S
TK6699131 Out of stock
(115A) Clutch Washer (B) 2 For Gbr (Sl).Irl (S
£0.80 £0.67

  116 Flywheel Nut
Flywheel Nut
TK6685337 Out of stock
Flywheel Nut
£1.34 £1.12

  117 Bolt Washer M8 (Black)
Bolt Washer M8 (Black)
TK323212 Out of stock
Bolt Washer M8 (Black)
£2.88 £2.40

  118 Hex. Socket Hd. Bolt (W.Washers) M4X18
Hex. Socket Hd. Bolt (W.Washers) M4X18
TK6698388 Out of stock
Hex. Socket Hd. Bolt (W.Washers) M4X18
£1.34 £1.12

  119 (119B) Ignition Coil Ass'Y 1 Includ.120C.121A Since 8.20
(119B) Ignition Coil Ass'Y 1 Includ.120C.121A Since 8.20
TK6699464 Out of stock
(119B) Ignition Coil Ass'Y 1 Includ.120C.121A Since 8.20
£94.68 £78.90

  120 (120C) Plug Cap
(120C) Plug Cap
TK6601421 Out of stock
(120C) Plug Cap
£0.80 £0.67

  124 Magneto Rotor Comp. 1 Till 7.20
Magneto Rotor Comp. 1 Till 7.20
TK6696928 Out of stock
Magneto Rotor Comp. 1 Till 7.20
£64.91 £54.09

  124 (124A) Magneto Rotor 1 Since 8.20
(124A) Magneto Rotor 1 Since 8.20
TK6699289 Out of stock
(124A) Magneto Rotor 1 Since 8.20
£45.38 £37.82

  125 Spacer
Spacer
TK6698496 Out of stock
Spacer
£1.34 £1.12

  127 (127A) Fuel Pipe L70
(127A) Fuel Pipe L70
TK6699014 Out of stock
(127A) Fuel Pipe L70
£4.32 £3.60

  128 (128A) Return Grommet 1 Till 7.2015 (Since 8.2015 For Usa.Ca
(128A) Return Grommet 1 Till 7.2015 (Since 8.2015 For Usa.Ca
TK6697447 In stock
(128A) Return Grommet 1 Till 7.2015 (Since 8.2015 For Usa.Ca
£1.08 £0.90

  129 Fuel Tank Cap Ass'Y 1 Includ.1
Fuel Tank Cap Ass'Y 1 Includ.1
TK6685049 In stock
Fuel Tank Cap Ass'Y 1 Includ.1
£10.49 £8.74

  130 Tank Cap Chain
Tank Cap Chain
TK6692059 Out of stock
Tank Cap Chain
£1.73 £1.44

  131 (131B) Tank (C) 1 Since 8.20
(131B) Tank (C) 1 Since 8.20
TK6600354 Out of stock
(131B) Tank (C) 1 Since 8.20
£6.18 £5.15

  131 (131A) Tank 1 For Usa.C
(131A) Tank 1 For Usa.C
TK6699719 Out of stock
(131A) Tank 1 For Usa.C
£23.82 £19.85

  131 (131A) Tank (B) 1 Till 7.20
(131A) Tank (B) 1 Till 7.20
TK6600317 Out of stock
(131A) Tank (B) 1 Till 7.20
£15.28 £12.73

  132 (132A) Pump Filter
(132A) Pump Filter
TK6600351 Out of stock
(132A) Pump Filter
£4.88 £4.07

  133 Clip
Clip
TK6696949 Out of stock
Clip
£1.34 £1.12

  134 Stand
Stand
TK6694787 Out of stock
Stand
£5.20 £4.33

  135 (135A) Bolt (W.Flange) L27.8
(135A) Bolt (W.Flange) L27.8
TK6698991 Out of stock
(135A) Bolt (W.Flange) L27.8
£1.69 £1.41

  136 Woodruff Key 3X13X4.5 1 Since 8.20
Woodruff Key 3X13X4.5 1 Since 8.20
TK6684899 Out of stock
Woodruff Key 3X13X4.5 1 Since 8.20
£1.69 £1.41

  137 Magneto Key Set
Magneto Key Set
TK6699463 Out of stock
Magneto Key Set
£46.25 £38.54

  220 (220A) Stay Set 1 For Gbr (Sl).Irl (S
(220A) Stay Set 1 For Gbr (Sl).Irl (S
TK6699190 Out of stock
(220A) Stay Set 1 For Gbr (Sl).Irl (S
£32.11 £26.76

  221 Stop Lever 1 For Gbr (Sl).Irl (S
Stop Lever 1 For Gbr (Sl).Irl (S
TK6699192 Out of stock
Stop Lever 1 For Gbr (Sl).Irl (S
£2.94 £2.45

  222 Long Lever 1 For Gbr (Sl).Irl (S
Long Lever 1 For Gbr (Sl).Irl (S
TK6699191 Out of stock
Long Lever 1 For Gbr (Sl).Irl (S
£4.50 £3.75

  223 Return Spring 1 For Gbr (Sl).Irl (S
Return Spring 1 For Gbr (Sl).Irl (S
TK6699193 Out of stock
Return Spring 1 For Gbr (Sl).Irl (S
£1.49 £1.24

  224 (224A) Switch Wire Set 1 For Gbr (Sl).Irl (S
(224A) Switch Wire Set 1 For Gbr (Sl).Irl (S
TK6699197 Out of stock
(224A) Switch Wire Set 1 For Gbr (Sl).Irl (S
£18.23 £15.19


Description

Tanaka TCG-24EASP Brushcutter - Flywheel Assembly Parts Diagram
