Tanaka TBC 600 - Jan 2016 H049821 - Gear Case

Name: Tanaka TBC 600 - Jan 2016 H049821 - Gear Case
SKU: tbctbc600h049821gearcase-group
Price: 1.41 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Tanaka TBC 600 - Jan 2016 H049821 - Gear Case

Description

Tanaka TBC 600 Brushcutter - Gear Case Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
271	TK6688801 Out of stock	Gear Case Ass'Y. 30 Dia 1 Except For U	£152.39 £126.99
272	TK6684709 Out of stock	Hex. Hole Bolt M5X25.S	£1.73 £1.44
273	TK6684741 Out of stock	Stop Ring C-28.Inner	£1.73 £1.44
274	TK6697442 Out of stock	Stop Ring C-12 Outer	£1.73 £1.44
275	TK6695532 Out of stock	Ball Bearing #6001Z. 28Mm.Od	£10.27 £8.56
276	TK6684608 Out of stock	Ball Bearing 6001 C3	£6.92 £5.77
277	TK6688703 Out of stock	Gearcase. Silver	£48.31 £40.26
278	TK6684834 Out of stock	Spring Washer 5	£1.73 £1.44
279	TK6684829 Out of stock	Hex. Socket Hd. Bolt M5X12	£1.73 £1.44
280	TK6695437 Out of stock	Plus Head Bolt 8X10	£1.73 £1.44
281	TK6695524 Out of stock	Ball Bearing #6000. 26Mm.Od	£8.68 £7.23
282	TK6688942 Out of stock	Gear Shaft 6X11X14 1 Except For U	£33.08 £27.57
283	TK6695564 Out of stock	(283A) Ball Bearing #6203Dd. 40Mm.Od	£12.98 £10.82
284	TK6695298 Out of stock	Stop Ring C-40. Inner	£1.73 £1.44
285	TK6689022 Out of stock	Cutter Holder	£26.21 £21.84
286	TK6689052 Out of stock	Cutter Holder Cap.6X11X14	£6.02 £5.02
287	TK6688982 Out of stock	Protection Cover A Comp.	£7.16 £5.97
288	TK6695418 Out of stock	Screw 5X16.Ws	£1.73 £1.44
289	TK6689072 Out of stock	Cutter Fixing Nut.L.H	£3.46 £2.88
290	TK6689157 Out of stock	Gear Case Washer	£1.69 £1.41
291	TK6688866 Out of stock	Gear-Pinion Set. Spare	£47.12 £39.27
292	TK6697451 Out of stock	Hex. Hole Button Screw M6X25S	£1.73 £1.44
293	TK6690312 Out of stock	( 293A) Cover Bracket 30 1 Since D068891 Except For U	£6.92 £5.77

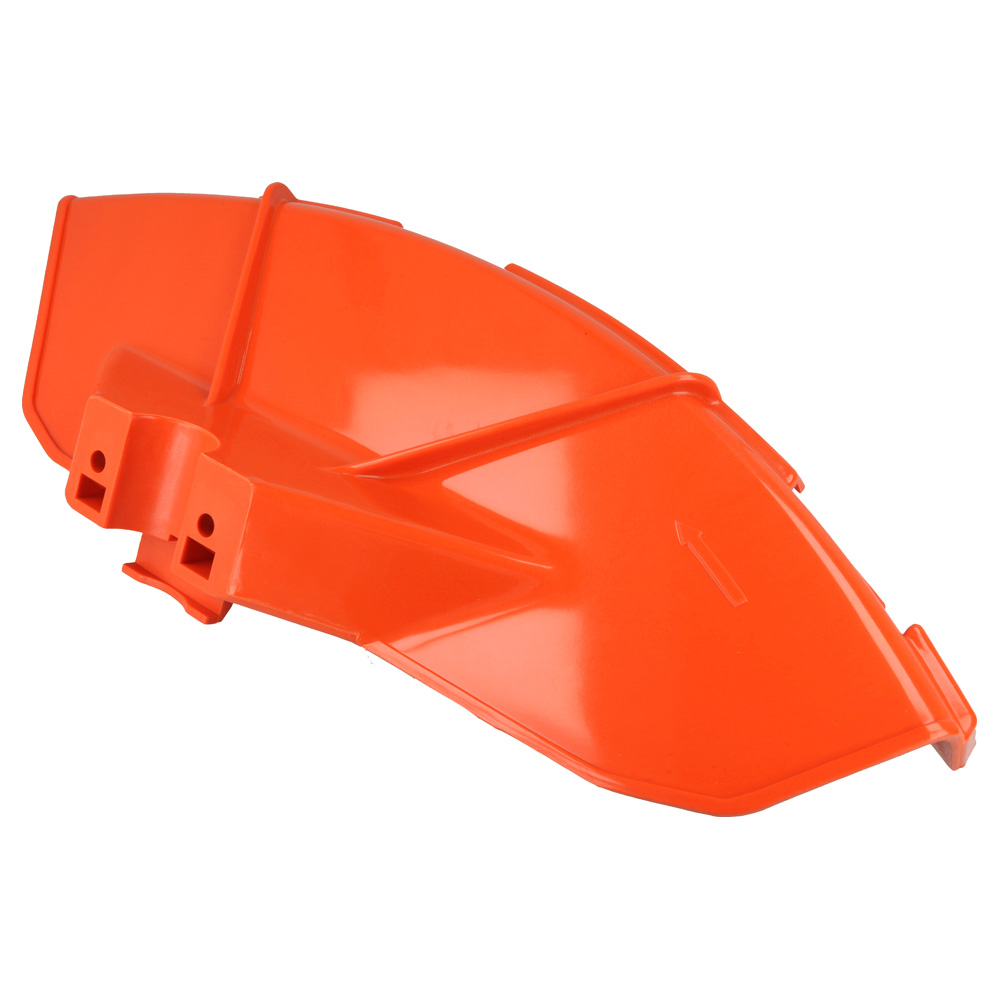

294	TK6690230 Out of stock	Blade Guard 30 Ce 1 Till D068890 Except For U	£28.16 £23.47
294	TK6690264 Out of stock	( 294A) Blade Guard 30 Ce 1 Since D068891 Except For U	£27.05 £22.54
295	TK6684748 Out of stock	Guard Holder	£3.90 £3.25
296	TK6690376 Out of stock	( 296A) Blade Guard 1 Since D068891 Except For U	£12.66 £10.55
296	TK6690372 Out of stock	Cover Guard 1 Till D068890 Except For U	£16.64 £13.87
297	TK6684750 Out of stock	( 297A) Knife 1 Since D068891 Except For U	£3.47 £2.89
297	TK6693386 Out of stock	Knife 1 Till D068890 Except For U	£6.92 £5.77
298	TK6695337 Out of stock	Screw 5X12.S 1 Till D068890 Except For U	£1.73 £1.44
298	TK6684751 Out of stock	( 298A) Tapping Screw 4X14 1 Since D068891 Except For U	£1.73 £1.44
299	TK6684965 Out of stock	Nut M5 1 Till D068890 Except For U	£1.73 £1.44
300	TK6684753 Out of stock	Tapping Screw 5X20 1 Till H130080 Except For U	£1.73 £1.44
301	TK6684754 Out of stock	Knife 1 Till H130080 Except For U	£6.92 £5.77
302	TK6689168 Out of stock	Split Pin Set(10 Pcs.Pack) 1 For U	£1.69 £1.41
304	TK6685075 Out of stock	Nut M5 (Black) 2 For S	£1.73 £1.44
