Tanaka TBC-340PF - Gear Case

Tanaka TBC-340PF - Gear Case
Tanaka TBC-340PF - Gear Case

Description

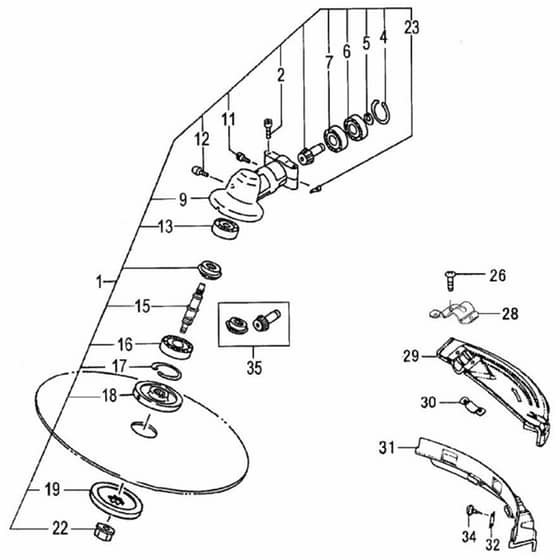

Tanaka TBC-340PF Brushcutter - Gear Case Parts Diagram

Be the first to review this product
0 product questions
Ref. Img. Part No. Details
  1 300.3338R.00 Gear Case Set Pn
300.3338R.00 Gear Case Set Pn
TK6696497 Out of stock
300.3338R.00 Gear Case Set Pn
£97.40 £81.17

  2 994.61050.254 Hex.Hole Bolt M5X25.S
994.61050.254 Hex.Hole Bolt M5X25.S
TK6684709 Out of stock
994.61050.254 Hex.Hole Bolt M5X25.S
£1.73 £1.44

  4 993.51026.002 Retaining Ring C-Type D26
993.51026.002 Retaining Ring C-Type D26
TK6695294 Out of stock
993.51026.002 Retaining Ring C-Type D26
£1.73 £1.44

  5 993.57010.002 Stop Ring Outer 10
993.57010.002 Stop Ring Outer 10
TK6695315 Out of stock
993.57010.002 Stop Ring Outer 10
£1.73 £1.44

  6 999.61600.002 Ball Bearing #6000Z 26Mm.Od
999.61600.002 Ball Bearing #6000Z 26Mm.Od
TK6695526 Out of stock
999.61600.002 Ball Bearing #6000Z 26Mm.Od
£9.70 £8.08

  7 999.61600.000 Ball Bearing #6000 26Mm.Od
999.61600.000 Ball Bearing #6000 26Mm.Od
TK6695524 Out of stock
999.61600.000 Ball Bearing #6000 26Mm.Od
£8.68 £7.23

  11 994.61050.124 Hex.Hole Bolt M5X12.S
994.61050.124 Hex.Hole Bolt M5X12.S
TK6684667 Out of stock
994.61050.124 Hex.Hole Bolt M5X12.S
£1.73 £1.44

  12 316.38150.20 Oiling Bolt
316.38150.20 Oiling Bolt
TK6689109 Out of stock
316.38150.20 Oiling Bolt
£1.69 £1.41

  13 999.61609.000 Ball Bearing 609
999.61609.000 Ball Bearing 609
TK6684734 Out of stock
999.61609.000 Ball Bearing 609
£6.92 £5.77

  15 304.3338R.20 Gear Shaft
304.3338R.20 Gear Shaft
TK6688924 Out of stock
304.3338R.20 Gear Shaft
£27.05 £22.54

  16 999.61620.103 Ball Bearing 6201D 32Mm.Od
999.61620.103 Ball Bearing 6201D 32Mm.Od
TK6695554 Out of stock
999.61620.103 Ball Bearing 6201D 32Mm.Od
£9.32 £7.77

  17 993.51032.002 Stop Ring C-32 Inner
993.51032.002 Stop Ring C-32 Inner
TK6695295 Out of stock
993.51032.002 Stop Ring C-32 Inner
£1.73 £1.44

  18 310.38150.20 Cutter Holder
310.38150.20 Cutter Holder
TK6689032 Out of stock
310.38150.20 Cutter Holder
£15.92 £13.27

  19 311.38150.20 Cutter Holder Cap
311.38150.20 Cutter Holder Cap
TK6689055 Out of stock
311.38150.20 Cutter Holder Cap
£7.81 £6.51

  22 313.38150.20 Fixing Nut M10X1.25
313.38150.20 Fixing Nut M10X1.25
TK6689073 Out of stock
313.38150.20 Fixing Nut M10X1.25
£1.69 £1.41

  23 324.37350.20 Gear Case Washer
324.37350.20 Gear Case Washer
TK6689159 Out of stock
324.37350.20 Gear Case Washer
£1.69 £1.41

  26 Hex.Hole Button Screw 6X25S
Hex.Hole Button Screw 6X25S
TK6697451 Out of stock
Hex.Hole Button Screw 6X25S
£1.73 £1.44

  28 442.38331.20 Cover Bracket 26
442.38331.20 Cover Bracket 26
TK6690315 Out of stock
442.38331.20 Cover Bracket 26
£6.02 £5.02

  29 441.38331.20 Blade Guard 26Ce
441.38331.20 Blade Guard 26Ce
TK6690276 Out of stock
441.38331.20 Blade Guard 26Ce
£26.15 £21.79

  30 445.37380.20 Guard Holder
445.37380.20 Guard Holder
TK6684748 Out of stock
445.37380.20 Guard Holder
£3.90 £3.25

  31 447.38331.20 Blade Guard
447.38331.20 Blade Guard
TK6690376 Out of stock
447.38331.20 Blade Guard
£12.66 £10.55

  32 797.37714.20 Knife
797.37714.20 Knife
TK6684750 Out of stock
797.37714.20 Knife
£3.47 £2.89

  34 993.48040.142 Tapping Screw 4X14
993.48040.142 Tapping Screw 4X14
TK6684751 Out of stock
993.48040.142 Tapping Screw 4X14
£1.73 £1.44

  35 301.37480.00 Gear.Pinion Set Spare
301.37480.00 Gear.Pinion Set Spare
TK6688875 Out of stock
301.37480.00 Gear.Pinion Set Spare
£33.08 £27.57
