Tanaka PM-25,25D - Gear Case Guard

Description

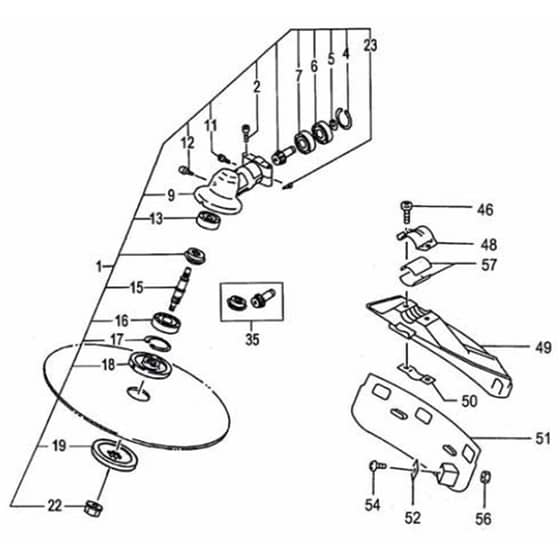

Tanaka PM-25,25D Brush Cutter - Gear Case Guard Parts Diagram

	Part No.	Details
1	TK6688797	Gear Case Ass'Y 24	Out of stock	£127.01 £105.84
2	TK6684709	Hex. Hole Bolt 5X25.S	Out of stock	£1.73 £1.44
4	TK6695293	Stop Ring C-22 Inner	Out of stock	£1.73 £1.44
5	TK6695315	Stop Ring Outer 10	Out of stock	£1.73 £1.44
6	TK6695579	Ball Bearing	Out of stock	£8.99 £7.49
7	TK6695577	Ball Bearing 6900 22Mm.Od	Out of stock	£10.27 £8.56
9	TK6688807	Gear Case 24 Dia.	Out of stock	£31.18 £25.98
11	TK6684667	Hex. Hole Bolt 5X12S	Out of stock	£1.73 £1.44
12	TK6689109	Oiling Bolt	Out of stock	£1.69 £1.41
13	TK6684734	Ball Bearing 609	Out of stock	£6.92 £5.77
15	TK6688924	Gear Shaft	Out of stock	£27.05 £22.54
16	TK6695554	Ball Bearing 6201D 32Mm.Od	Out of stock	£9.32 £7.77
17	TK6695295	Stop Ring C-32 Inner	Out of stock	£1.73 £1.44
18	TK6689032	Cutter Holder	Out of stock	£15.92 £13.27
19	TK6689055	Cutter Holder	Out of stock	£7.81 £6.51
22	TK6689073	Fixing Nut M10X1.25	Out of stock	£1.69 £1.41
23	TK6689160	Gear Case Washer	Out of stock	£1.39 £1.16
35	TK6688882	Gear Pinion Set Spare	Out of stock	£27.05 £22.54
46	TK6697451	Hex. Hole Button Screw 6X25S	Out of stock	£1.73 £1.44
48	TK6690294	Cover Bracket 26 Dia.	Out of stock	£1.69 £1.41
49	TK6690242	Safety Cover Ce	Out of stock	£24.62 £20.52
50	TK6684748	Safety Cover Holder	Out of stock	£3.90 £3.25
51	TK6690372	Cover Guard	Out of stock	£16.64 £13.87
52	TK6693386	Knife	Out of stock	£6.92 £5.77
54	TK6695337	Screw 5X12.S	Out of stock	£1.73 £1.44
56	TK6684965	Hex. Nut 5	Out of stock	£1.73 £1.44
57	TK6690332	Bracket Spacer	Out of stock	£1.69 £1.41
