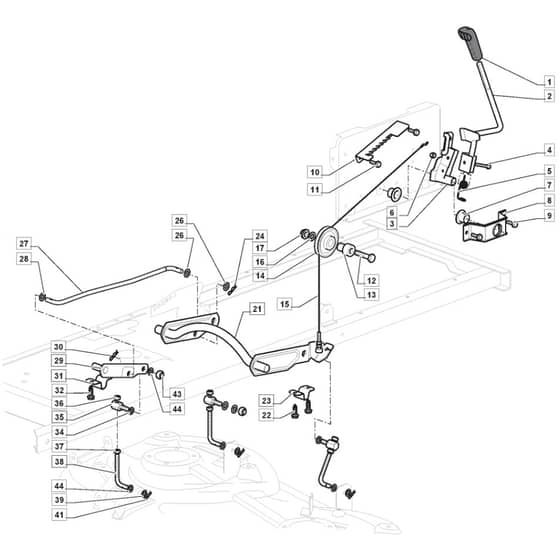

T30M - 2020-2021 - 2T2010483/MC - Mountfield Ride On Mower Deck Lifting Diagram

Description

Mountfield T30M Parts Diagram

Product Name - T30 M

Model Year - 2020-2021

Model Type - MP 84

Art.N - 2T2010483/MC

Engine Model - ST 450

Be the first to review this product

0 product questions

	Part No.	Details
1	MO325394533/0 Out of stock	Knob	£3.06 £2.55
2	MO382318255/0 Out of stock	Lever	£13.12 £10.93
3	MO382318231/1 Out of stock	Lifting Axle Assy	£6.62 £5.52
4	MO112674700/0 Out of stock	Screw	£1.48 £1.23
5	MO125430261/0 Out of stock	Spring	£1.34 £1.12
6	MO112154510/0 In stock	Nut	£1.48 £1.23
7	MO325038006/0 Out of stock	Bushing	£1.66 £1.38
8	MO325785297/0 Out of stock	Support	£5.86 £4.88
10	MO325735515/0 Out of stock	Steering Sector	£7.64 £6.37
11	MO125943009/0 Out of stock	Screw	£1.55 £1.29
12	MO112793701/0 Out of stock	Screw	£1.48 £1.23
13	MO125040636/1 Out of stock	Bushing	£2.68 £2.23
14	MO125601579/0 Out of stock	Pulley	£2.68 £2.23
15	MO382004620/0 In stock	Wire	£14.00 £11.67
16	MO112523060/0 In stock	Washer	£1.48 £1.23
17	MO112293201/0 In stock	Nut	£1.61 £1.34
21	MO382318297/1 In stock	Axle	£30.55 £25.46
22	MO112735599/0 Out of stock	Screw	£1.48 £1.23
23	MO325547231/1 Out of stock	Plate	£4.20 £3.50
24	MO124487997/0 Out of stock	Cotter Pin	£1.48 £1.23
26	MO325670010/0 Out of stock	Antifriction Washer	£1.40 £1.17
27	MO125033109/0 In stock	Connecting Rod	£8.98 £7.48
29	MO382318293/1 Out of stock	Axle	£11.71 £9.76
34	MO325670008/1 Out of stock	Washer	£1.66 £1.38
35	MO125510170/0 Out of stock	Pin From S.N 19EA3RON001208	£5.09 £4.24
35	MO125510107/1 Out of stock	Pin To S.N 19KA3RON005043	£4.96 £4.13
36	MO112156602/0 In stock	Nut	£1.34 £1.12
37	MO112295200/0 Out of stock	Nut	£1.34 £1.12
38	MO125840012/1 Out of stock	Tie Rod	£13.66 £11.38
41	MO124487998/0 In stock	Cotter Pin	£1.48 £1.23
44	MO112521360/0 In stock	Washer M10 10.5 X 20 X 2	£1.48 £1.23
