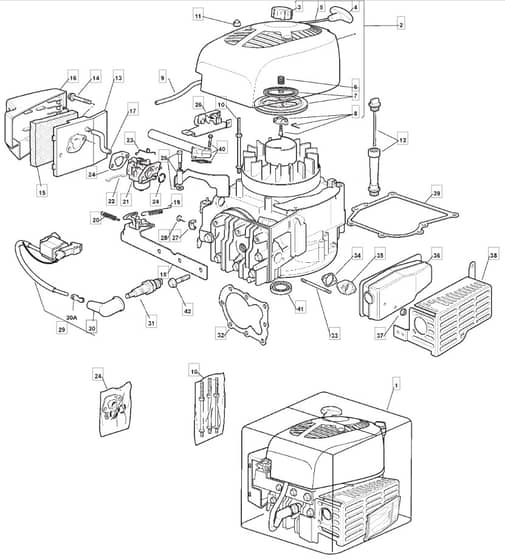

SV35 - 2006 - 118550034/0_050002 - Mountfield Engine Main Assembly Diagram

Name: SV35 - 2006 - 118550034/0_050002 - Mountfield Engine Main Assembly Diagram
SKU: sv35_118550034_0_050002_main_assembly-group
Price: 1.18 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

SV35 - 2006 - 118550034/0_050002 - Mountfield Engine Main Assembly Diagram

Description

Mountfield SV35 Parts Diagram

Model Year - 2006

Model Type - SV150

Art.N - 118550034/0_050002

Be the first to review this product

0 product questions

	Part No.	Details
2	MO118550509/0 In stock	Starter Assy	£56.24 £46.87
3	MO118550001/0 In stock	Fuel Cap	£5.09 £4.24
4	MO118550768/0 Out of stock	Starter Handle	£11.38 £9.48
5	MO118550053/0 In stock	Starter Cord	Was £2.15 £1.79 Special Price £1.42 £1.18
6	MO118550002/0 Out of stock	Starter Spring	£5.63 £4.69
7	MO118550003/0 Out of stock	Starter Ass.Y	£34.81 £29.01
8	MO118550004/1 In stock	Starter Pawl	£5.10 £4.25
10	MO118550006/0 Out of stock	Stud Bolt	£13.52 £11.27
11	MO118550007/0 Out of stock	Nut	£1.87 £1.56
12	MO118550008/0 Out of stock	Oil Dipstick & Oil Fill Tube Assy	£5.40 £4.50
15	MO118550011/0 In stock	Filter Element	£2.94 £2.45
16	MO118550012/0 Out of stock	Air Cleaner Cover	£14.46 £12.05
18	MO118550014/1 Out of stock	Control Bracket	£36.16 £30.13
26	MO118550021/0 Out of stock	Brake	£32.14 £26.78
28	MO118550023/0 Out of stock	Screw	£1.87 £1.56
29	MO118550126/0 In stock	Magneto Armature	£49.55 £41.29
30	MO118550127/0 Out of stock	Spark Plug Elbow Cover	£5.82 £4.85
31	3011 In stock	Spark Plug (Qj19Lm)	£3.26 £2.72
32	MO118550359/0 In stock	Cylinder Head Gasket Set	£5.89 £4.91
33	MO118550027/0 Out of stock	Double-Screw Bolt	£4.69 £3.91
34	MO118550028/0 Out of stock	Muffler Gasket	£4.43 £3.69
35	MO118550030/0 Out of stock	Spacer	£4.42 £3.68
37	MO118550032/0 Out of stock	Nut	£1.48 £1.23
38	MO118550033/0 Out of stock	Muffler Protection	£21.47 £17.89
39	MO118550130/0 Out of stock	Crankcase Gasket	£6.02 £5.02
40	MO118550129/0 Out of stock	Intake Manifold	£9.64 £8.03
41	MO118550131/0 Out of stock	Seal Ring	£8.30 £6.92
