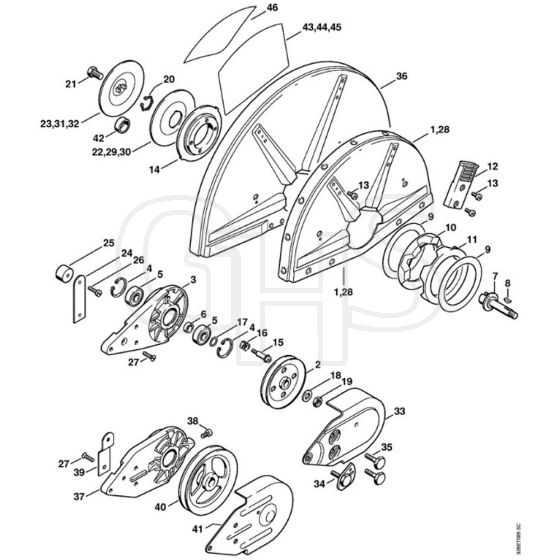

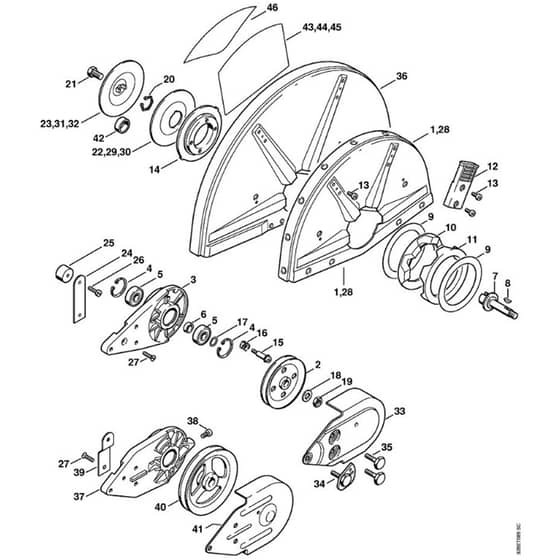

Stihl TS760 - Support With Guard - Parts Diagram

Stihl TS760 - Support With Guard - Parts Diagram
Stihl TS760 - Support With Guard - Parts Diagram

Description

Stihl TS760 - Support With Guard - Parts Diagram

Ref. Img. Part No. Details
  1 Guard Ø 300 mm / 12
Guard Ø 300 mm / 12
ST4238 700 8110 In stock
Guard Ø 300 mm / 12"
Was £157.57 £131.31 Special Price £91.88 £76.57

  0 Support with guard Ø 350 mm / 14
Support with guard Ø 350 mm / 14
ST4221 007 1008 Out of stock
Support with guard Ø 350 mm / 14" (Contains 2 - 23 + 28)
£572.95 £477.46

  1 Support with guard Ø 300 mm / 12
Support with guard Ø 300 mm / 12
ST4223 007 1005 Out of stock
Support with guard Ø 300 mm / 12" (Contains 1 - 23)
£488.76 £407.30

  2 V-belt pulley
V-belt pulley
ST4201 700 2504 Out of stock
V-belt pulley
£40.24 £33.53

  3 Support
Support
ST4205 791 3902 Out of stock
Support
£33.61 £28.01

  4 Circlips 32x12
Circlips 32x12
ST9456 621 3600 In stock
Circlips 32x12
£1.19 £0.99

  5 Grooved ball bearing 6201-2RS
Grooved ball bearing 6201-2RS
ST9503 003 6440 In stock
Grooved ball bearing 6201-2RS
£4.60 £3.83

  6 Ring
Ring
ST0000 961 1206 In stock
Ring
£2.69 £2.24

  7 Shaft
Shaft
ST4201 704 0504 Out of stock
Shaft
£70.67 £58.89

  9 Washer
Washer
ST4201 706 9202 In stock
Washer
Was £2.18 £1.82 Special Price £1.19 £0.99

  10 Rubber ring
Rubber ring
ST4221 706 8800 Out of stock
Rubber ring
£9.95 £8.29

  11 Rubber ring
Rubber ring
ST4221 706 8801 Out of stock
Rubber ring
£10.38 £8.65

  12 Adjusting lever
Adjusting lever
ST4223 700 2900 In stock
Adjusting lever
Was £7.50 £6.25 Special Price £4.99 £4.16

  13 Spline screw IS-M5x12
Spline screw IS-M5x12
ST9022 341 0960 In stock
Spline screw IS-M5x12
£0.74 £0.62

  14 Flange
Flange
ST4205 706 2903 In stock
Flange
£15.55 £12.96

  15 Adjusting screw (Contains 16)
Adjusting screw (Contains 16)
ST4223 710 9500 Out of stock
Adjusting screw (Contains 16)
£4.02 £3.35

  16 Compression spring
Compression spring
ST0000 997 1303 Out of stock
Compression spring
£1.21 £1.01

  17 Washer
Washer
ST0000 958 1212 Out of stock
Washer
£1.15 £0.96

  18 Washer 10.5
Washer 10.5
ST9291 021 0200 Out of stock
Washer 10.5
£0.48 £0.40

  19 Hexagon nut M10x1 l/h thread
Hexagon nut M10x1 l/h thread
ST9211 260 1350 Out of stock
Hexagon nut M10x1 l/h thread
£0.74 £0.62

  20 E-clip 20x1.2
E-clip 20x1.2
ST9450 721 2150 Out of stock
E-clip 20x1.2
£0.91 £0.76

  21 Hexagon head screw M10x18
Hexagon head screw M10x18
ST4201 708 8402 In stock
Hexagon head screw M10x18
Was £2.50 £2.08 Special Price £1.57 £1.31

  22 Thrust washer Ø 103 mm
Thrust washer Ø 103 mm
ST4201 708 3004 In stock
Thrust washer Ø 103 mm
£22.18 £18.48

  23 Thrust washer Ø 103 mm
Thrust washer Ø 103 mm
ST4201 708 3014 In stock
Thrust washer Ø 103 mm
£22.87 £19.06

  24 Limit stop
Limit stop
ST4201 790 6005 Out of stock
Limit stop
£5.74 £4.78

  25 Rubber buffer
Rubber buffer
ST4201 790 9302 Out of stock
Rubber buffer
£8.39 £6.99

  26 Pan head screw M6x8
Pan head screw M6x8
ST9041 216 1230 Out of stock
Pan head screw M6x8
£0.78 £0.65

  27 Countersunk screw M6x12
Countersunk screw M6x12
ST9062 319 1260 Out of stock
Countersunk screw M6x12
£0.78 £0.65

  28 Guard Ø 350 mm / 14
Guard Ø 350 mm / 14
ST4224 700 8103 Out of stock
Guard Ø 350 mm / 14"
£180.77 £150.64

  29 Thrust washer Ø 118 mm
Thrust washer Ø 118 mm
ST4205 708 3000 Out of stock
Thrust washer Ø 118 mm
£24.23 £20.19

  31 Thrust washer Ø 118 mm
Thrust washer Ø 118 mm
ST4205 708 3010 Out of stock
Thrust washer Ø 118 mm
£24.42 £20.35

  33 Guard
Guard
ST4201 700 8116 Out of stock
Guard
£22.57 £18.81

  34 Adjusting screw
Adjusting screw
ST4201 760 9500 Out of stock
Adjusting screw
£10.08 £8.40

  35 Hexagon head screw M8x42
Hexagon head screw M8x42
ST4201 708 8401 In stock
Hexagon head screw M8x42
£2.04 £1.70

  36 Guard Ø 400 mm / 16
Guard Ø 400 mm / 16
ST4224 700 8105 Out of stock
Guard Ø 400 mm / 16"
£199.10 £165.92

  38 Spline screw IS-M6x12
Spline screw IS-M6x12
ST9022 341 1260 Out of stock
Spline screw IS-M6x12
£0.78 £0.65

  40 V-belt pulley
V-belt pulley
ST4205 704 1004 Out of stock
V-belt pulley
£53.00 £44.17

  42 Shaft sleeve
Shaft sleeve
ST0000 708 4200 Out of stock
Shaft sleeve
£7.06 £5.88
