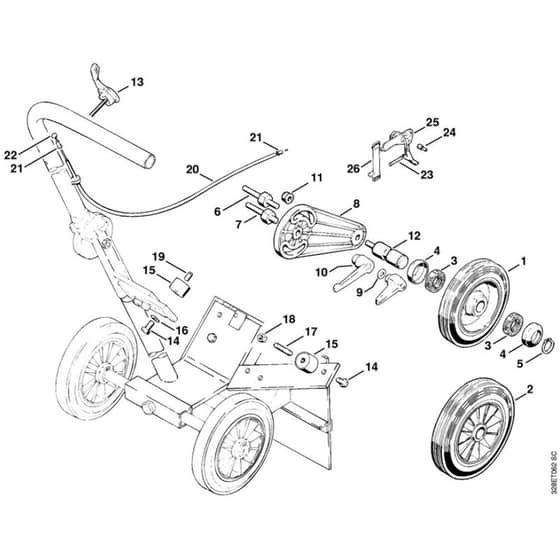

Stihl TS760 - Stop Depth Wheel, Cart For Cutquik - Parts Diagram

Ref. Img. Part No. Details
  -1 Depth wheel kit (Contains 1 + 3 - 8 + 10 - 12)
Depth wheel kit (Contains 1 + 3 - 8 + 10 - 12)
ST4201 007 1041 Out of stock
Depth wheel kit (Contains 1 + 3 - 8 + 10 - 12)
£136.56 £113.80

  1 Wheel Ø 142 mm
Wheel Ø 142 mm
ST4201 712 1005 Out of stock
Wheel Ø 142 mm
£27.67 £23.06

  1 Mounting kit Cutquik cart (Contains 13 - 26)
Mounting kit Cutquik cart (Contains 13 - 26)
ST4205 007 1008 Out of stock
Mounting kit Cutquik cart (Contains 13 - 26)
£96.36 £80.30

  3 Felt ring
Felt ring
ST0000 988 1900 Out of stock
Felt ring
£2.36 £1.97

  5 Circlip 20x1.2
Circlip 20x1.2
ST9455 621 2150 Out of stock
Circlip 20x1.2
£0.97 £0.81

  6 Stud
Stud
ST4201 711 8500 Out of stock
Stud
£10.82 £9.02

  7 Stud
Stud
ST4201 711 8501 Out of stock
Stud
£9.82 £8.18

  8 Swivel arm
Swivel arm
ST4201 711 0700 Out of stock
Swivel arm
£54.07 £45.06

  10 Clamp lever M8
Clamp lever M8
ST9582 003 0471 Out of stock
Clamp lever M8
£16.60 £13.83

  11 Hexagon nut M8
Hexagon nut M8
ST9220 260 1100 In stock
Hexagon nut M8
£0.74 £0.62

  12 Axle
Axle
ST4201 711 0901 Out of stock
Axle
£15.49 £12.91

  13 Control lever
Control lever
ST4201 180 0700 Out of stock
Control lever
£25.39 £21.16

  14 Hexagon head screw M8x16
Hexagon head screw M8x16
ST9008 319 1780 Out of stock
Hexagon head screw M8x16
£1.15 £0.96

  15 Rubber insert
Rubber insert
ST4201 790 9300 Out of stock
Rubber insert
£11.32 £9.43

  16 Washer 8.4
Washer 8.4
ST9291 021 0180 Out of stock
Washer 8.4
£0.40 £0.33

  17 Stud M8x40
Stud M8x40
ST9123 319 1900 Out of stock
Stud M8x40
£1.31 £1.09

  18 Hexagon nut M8
Hexagon nut M8
ST9210 260 1100 Out of stock
Hexagon nut M8
£0.76 £0.63

  20 Throttle cable (Contains 21 - 24)
Throttle cable (Contains 21 - 24)
ST4201 180 1100 Out of stock
Throttle cable (Contains 21 - 24)
£37.48 £31.23

  21 Terminal sleeve
Terminal sleeve
ST4308 182 8800 Out of stock
Terminal sleeve
£1.26 £1.05

  22 Grease nipple D
Grease nipple D
ST9793 003 0030 Out of stock
Grease nipple D
£1.63 £1.36

  23 Compression spring
Compression spring
ST0000 997 0427 Out of stock
Compression spring
£1.26 £1.05

  24 Screw nipple
Screw nipple
ST0000 937 3000 Out of stock
Screw nipple
£2.92 £2.43

  25 Throttle control
Throttle control
ST4201 180 1800 Out of stock
Throttle control
£17.35 £14.46

  26 Rubber strap
Rubber strap
ST4201 180 2200 Out of stock
Rubber strap
£2.36 £1.97
