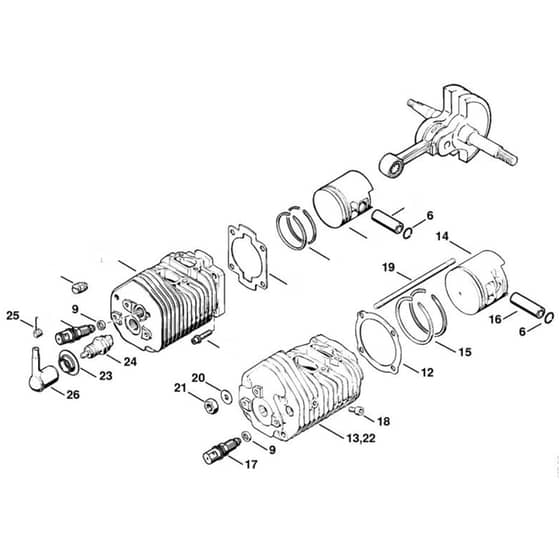

Stihl TS760 - Cylinder - Parts Diagram

Description

	Part No.	Details
-1	ST1111 007 1051 Out of stock	Set of gaskets (Contains 12)	£25.03 £20.86
6	ST9462 650 1300 Out of stock	Snap ring 13	£0.78 £0.65
9	ST9636 003 0420 Out of stock	Sealing ring 6.5x9.5	£0.50 £0.42
12	ST1111 029 2301 Out of stock	Cylinder gasket	£3.19 £2.66
13	ST1111 020 1206 In stock	Cylinder with piston Ø 58 mm (Contains 6 + 14 - 16)	£294.36 £245.30
14	ST1111 030 2002 Out of stock	Piston Ø 58 mm (Contains 6 + 15 + 16)	£165.48 £137.90
15	ST1111 034 3006 Out of stock	Piston ring Ø 58x1.5 mm	£14.44 £12.03
16	ST1111 034 1500 Out of stock	Piston pin 13x8x44	£9.68 £8.07
17	ST1124 020 9400 In stock	Decompression valve	£33.96 £28.30
20	ST9291 021 0140 In stock	Washer 6.4	£0.40 £0.33
21	ST9210 319 0900 In stock	Hexagon nut M6	£0.48 £0.40
24	ST0000 400 7016 In stock	Spark plug Bosch WSR 6 F	£4.78 £3.98
24	2134 In stock	Spark plug NGK BPMR7A	£2.74 £2.28
25	ST0000 998 0603 Out of stock	Torsion spring	£1.50 £1.25
26	ST1106 405 1000 Out of stock	Spark plug boot	£7.19 £5.99
