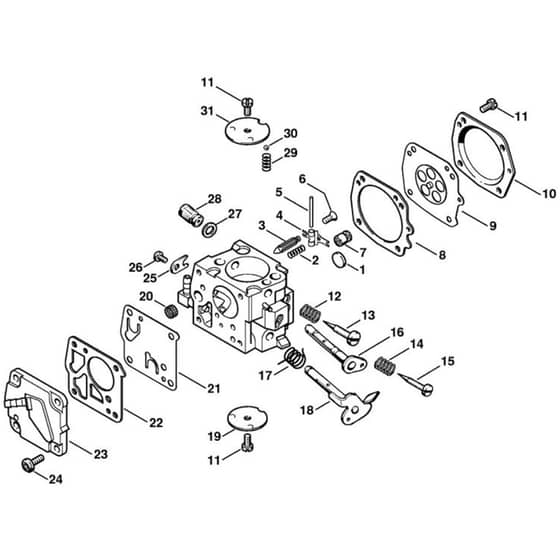

Stihl TS760 - Carburetor Hs-212 - Parts Diagram

Stihl TS760 - Carburetor Hs-212 - Parts Diagram
Stihl TS760 - Carburetor Hs-212 - Parts Diagram

Description

Stihl TS760 - Carburetor Hs-212 - Parts Diagram

Ref. Img. Part No. Details
  -1 Carburetor HS-212B (Contains 1 - 31)
Carburetor HS-212B (Contains 1 - 31)
ST4205 120 0600 Out of stock
Carburetor HS-212B (Contains 1 - 31)
£201.13 £167.61

  1 Plug
Plug
ST1110 122 9410 Out of stock
Plug
£4.26 £3.55

  2 Spring
Spring
ST1110 122 3020 Out of stock
Spring
£2.42 £2.02

  3 Inlet needle
Inlet needle
ST1110 121 5100 Out of stock
Inlet needle
£11.69 £9.74

  4 Inlet control lever
Inlet control lever
ST1124 121 5000 Out of stock
Inlet control lever
£3.46 £2.88

  5 Spindle
Spindle
ST1110 121 9200 Out of stock
Spindle
£1.34 £1.12

  6 Oval head screw
Oval head screw
ST1110 122 7801 Out of stock
Oval head screw
£3.61 £3.01

  7 Valve jet
Valve jet
ST1111 121 5400 Out of stock
Valve jet
£10.51 £8.76

  8 Gasket
Gasket
ST1110 129 0900 Out of stock
Gasket
£2.35 £1.96

  9 Metering diaphragm
Metering diaphragm
ST1110 121 4700 Out of stock
Metering diaphragm
£16.36 £13.63

  11 Round head screw
Round head screw
ST1106 122 7400 Out of stock
Round head screw
£8.53 £7.11

  12 Spring
Spring
ST1106 122 3000 Out of stock
Spring
£2.47 £2.06

  13 High speed screw
High speed screw
ST1111 122 6700 Out of stock
High speed screw
£11.69 £9.74

  14 Spring
Spring
ST1110 122 3030 Out of stock
Spring
£2.47 £2.06

  15 Low speed screw
Low speed screw
ST1110 122 6800 Out of stock
Low speed screw
£11.69 £9.74

  16 Choke shaft with lever
Choke shaft with lever
ST1111 120 7200 Out of stock
Choke shaft with lever
£18.29 £15.24

  17 Torsion spring
Torsion spring
ST1110 122 3200 Out of stock
Torsion spring
£1.15 £0.96

  18 Throttle shaft with lever
Throttle shaft with lever
ST1111 120 7100 Out of stock
Throttle shaft with lever
£21.53 £17.94

  19 Throttle shutter
Throttle shutter
ST1115 121 3300 Out of stock
Throttle shutter
£3.56 £2.97

  20 Strainer
Strainer
ST4221 121 7800 Out of stock
Strainer
£3.52 £2.93

  21 Pump diaphragm
Pump diaphragm
ST1110 121 4800 Out of stock
Pump diaphragm
£16.36 £13.63

  22 Gasket
Gasket
ST1110 129 1110 Out of stock
Gasket
£2.35 £1.96

  23 End cover
End cover
ST1110 121 0815 Out of stock
End cover
£19.81 £16.51

  25 Clip
Clip
ST1110 122 9300 Out of stock
Clip
£2.11 £1.76

  26 Round head screw
Round head screw
ST1110 122 7400 Out of stock
Round head screw
£2.93 £2.44

  29 Spring
Spring
ST1108 122 3001 Out of stock
Spring
£2.47 £2.06

  30 Ball
Ball
ST1110 122 4200 Out of stock
Ball
£2.22 £1.85

  31 Choke shutter
Choke shutter
ST1115 121 2900 Out of stock
Choke shutter
£4.75 £3.96
