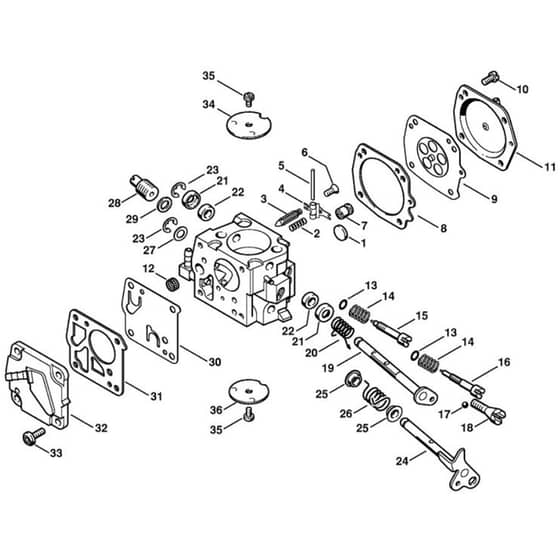

Stihl TS510 - Carburetor Hs-277 - Parts Diagram

Description

Stihl TS510 - Carburetor Hs-277 - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	ST1110 122 9410 Out of stock	Plug	£4.26 £3.55
0	ST4205 120 0601 Out of stock	Carburetor HS-277A (Contains 1 - 36)	£255.31 £212.76
1	ST1115 007 1060 Out of stock	Set of carburetor parts	£31.49 £26.24
2	ST1110 122 3020 Out of stock	Spring	£2.42 £2.02
3	ST1110 121 5100 Out of stock	Inlet needle	£11.69 £9.74
4	ST1124 121 5000 Out of stock	Inlet control lever	£3.46 £2.88
5	ST1110 121 9200 Out of stock	Spindle	£1.34 £1.12
6	ST1110 122 7801 Out of stock	Oval head screw	£3.61 £3.01
7	ST1111 121 5400 Out of stock	Valve jet	£10.51 £8.76
8	ST1110 129 0900 Out of stock	Gasket	£2.35 £1.96
9	ST1110 121 4700 Out of stock	Metering diaphragm	£16.36 £13.63
10	ST1106 122 7400 Out of stock	Round head screw	£8.53 £7.11
11	ST4205 121 0800 Out of stock	End cover	£14.29 £11.91
12	ST4221 121 7800 Out of stock	Strainer	£3.52 £2.93
13	ST4223 122 3600 Out of stock	Sealing ring	£6.49 £5.41
14	ST1110 122 3030 Out of stock	Spring	£2.47 £2.06
16	ST4205 122 6800 Out of stock	Low speed screw	£8.93 £7.44
17	ST4221 122 4200 Out of stock	Ball	£1.82 £1.52
18	ST4221 122 6200 Out of stock	Idle speed screw	£11.69 £9.74
19	ST4205 120 7200 Out of stock	Choke shaft with lever	£25.74 £21.45
20	ST4205 122 3200 Out of stock	Torsion spring	£1.20 £1.00
21	ST4221 121 9400 Out of stock	Ring	£3.73 £3.11
22	ST4221 122 3605 Out of stock	Sealing ring	£6.47 £5.39
23	ST1110 122 9005 Out of stock	E-clip	£2.23 £1.86
24	ST4221 120 7100 Out of stock	Throttle shaft with lever	£26.52 £22.10
25	ST4221 122 9100 Out of stock	Bushing	£3.70 £3.08
26	ST4221 122 3200 Out of stock	Torsion spring	£2.54 £2.12
27	ST4221 121 8600 Out of stock	Washer	£2.20 £1.83
30	ST1110 121 4800 Out of stock	Pump diaphragm	£16.36 £13.63
31	ST1110 129 1110 Out of stock	Gasket	£2.35 £1.96
32	ST1110 121 0815 Out of stock	End cover	£19.81 £16.51
34	ST1115 121 2900 Out of stock	Choke shutter	£4.75 £3.96
35	ST1110 122 7400 Out of stock	Round head screw	£2.93 £2.44
36	ST1115 121 3300 Out of stock	Throttle shutter	£3.56 £2.97
