Stihl TS08 - Crankcase, Cylinder - Parts Diagram

Stihl TS08 - Crankcase, Cylinder - Parts Diagram
Stihl TS08 - Crankcase, Cylinder - Parts Diagram

Description

Stihl TS08 - Crankcase, Cylinder - Parts Diagram

Ref. Img. Part No. Details
  2 Cylindrical pin 6x20
Cylindrical pin 6x20
ST9371 470 3120 Out of stock
Cylindrical pin 6x20
£0.76 £0.63

  3 Pan head screw M5x18
Pan head screw M5x18
ST9048 216 1010 Out of stock
Pan head screw M5x18
£1.00 £0.83

  4 Pan head screw M5x30
Pan head screw M5x30
ST9049 216 1070 Out of stock
Pan head screw M5x30
£1.02 £0.85

  5 Bushing
Bushing
ST0000 963 0605 Out of stock
Bushing
£1.39 £1.16

  6 Connector
Connector
ST0000 988 5200 Out of stock
Connector
£1.90 £1.58

  7 Elbow connector
Elbow connector
ST1110 122 3900 Out of stock
Elbow connector
£4.28 £3.57

  8 Circlip 35x1.5
Circlip 35x1.5
ST9456 621 3860 Out of stock
Circlip 35x1.5
£1.50 £1.25

  9 Grooved ball bearing 6202
Grooved ball bearing 6202
ST9503 003 0340 Out of stock
Grooved ball bearing 6202
£16.99 £14.16

  10 Oil seal 15x35x7
Oil seal 15x35x7
ST9640 003 1610 Out of stock
Oil seal 15x35x7
£7.19 £5.99

  11 Crankshaft
Crankshaft
ST1108 030 0402 Out of stock
Crankshaft
£242.52 £202.10

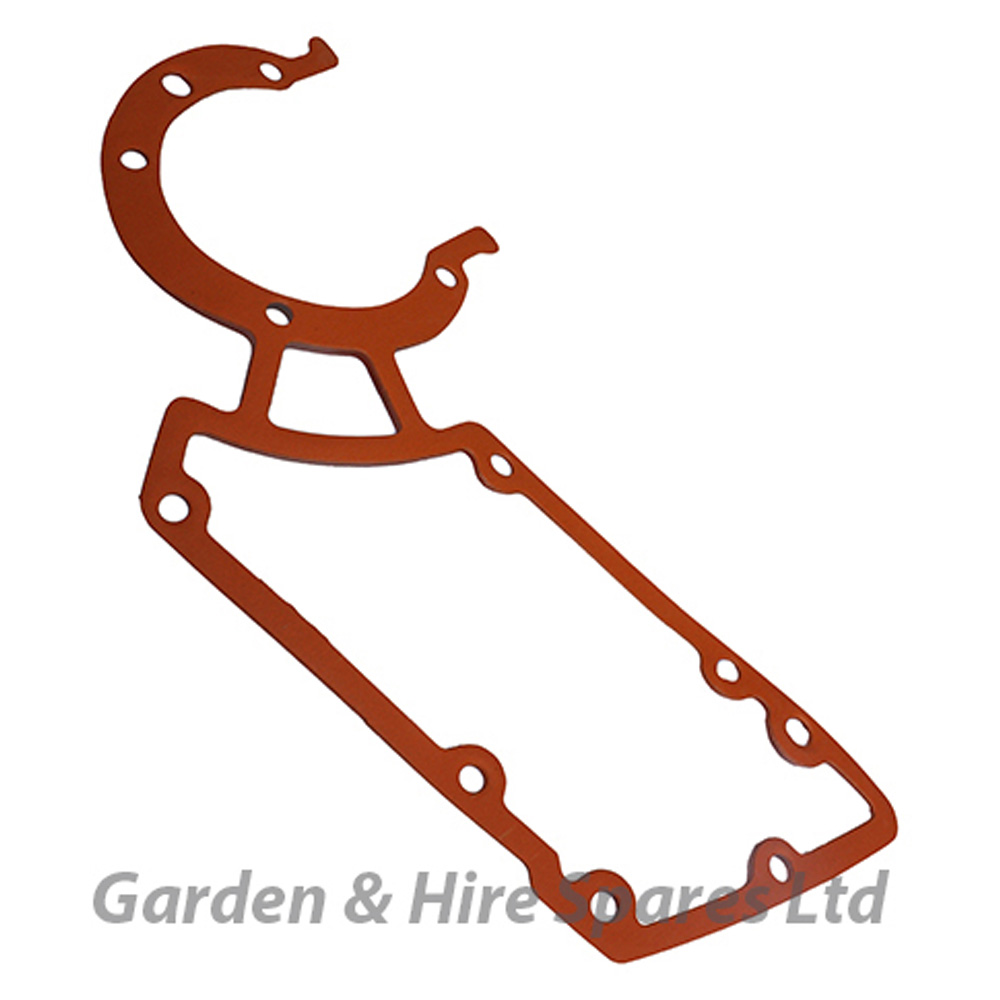

  12 Gasket
Gasket
ST1108 029 0500 Out of stock
Gasket
£2.17 £1.81

  13 Needle cage 12x16x13
Needle cage 12x16x13
ST9512 003 3140 Out of stock
Needle cage 12x16x13
£8.95 £7.46

  15 Piston Ø 47 mm (Contains 16 - 18)
Piston Ø 47 mm (Contains 16 - 18)
ST1108 030 2020 In stock
Piston Ø 47 mm (Contains 16 - 18)
Was £126.72 £105.60 Special Price £23.99 £19.99

  16 Piston ring Ø 47x1.5 mm
Piston ring Ø 47x1.5 mm
ST1108 034 3001 Out of stock
Piston ring Ø 47x1.5 mm
£11.51 £9.59

  17 Piston pin 12x8x33
Piston pin 12x8x33
ST1108 034 1501 Out of stock
Piston pin 12x8x33
£8.56 £7.13

  19 Cylinder gasket
Cylinder gasket
ST1108 029 2300 Out of stock
Cylinder gasket
£3.52 £2.93

  21 Tank vent (Contains 22)
Tank vent (Contains 22)
ST1108 350 5800 Out of stock
Tank vent (Contains 22)
£8.56 £7.13

  22 Grub screw 1/4
Grub screw 1/4
ST0000 951 5815 Out of stock
Grub screw 1/4"
£1.90 £1.58

  26 Woodruff key 3x3 7
Woodruff key 3x3 7
ST9482 435 0390 Out of stock
Woodruff key 3x3 7
£0.64 £0.53

  27 Key 5x3x14
Key 5x3x14
ST9470 435 0900 Out of stock
Key 5x3x14
£0.86 £0.72

  28 Stud M6x30
Stud M6x30
ST0000 953 1024 Out of stock
Stud M6x30
£3.13 £2.61

  29 Hexagon nut M6
Hexagon nut M6
ST9210 319 0900 In stock
Hexagon nut M6
£0.48 £0.40

  30 Washer 6.4
Washer 6.4
ST9291 021 0140 In stock
Washer 6.4
£0.40 £0.33

  31 Muffler gasket
Muffler gasket
ST1108 149 0600 Out of stock
Muffler gasket
£2.92 £2.43

  32 Flange
Flange
ST4201 141 1500 Out of stock
Flange
£4.91 £4.09

  34 Shim
Shim
ST4201 148 3001 Out of stock
Shim
£4.78 £3.98

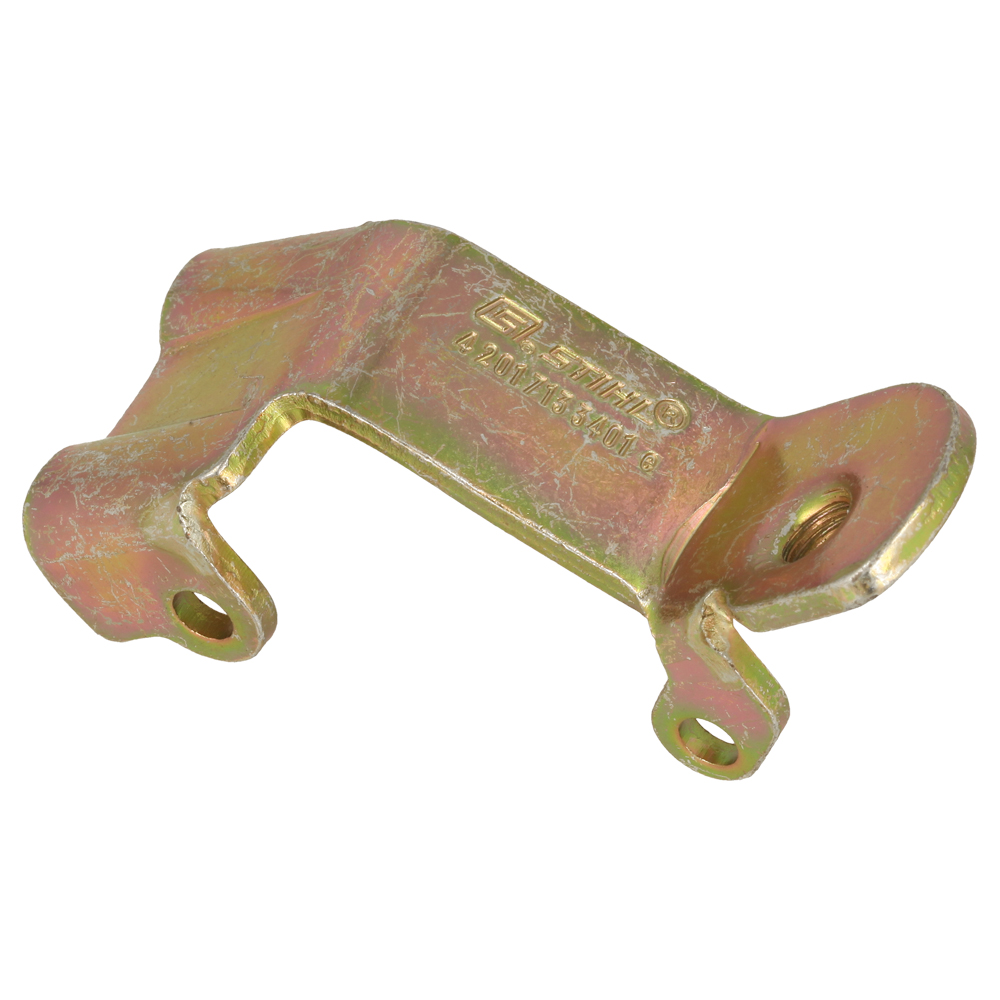

  36 Bow
Bow
ST4201 713 3401 Out of stock
Bow
£16.33 £13.61

  37 Pan head screw M5x45
Pan head screw M5x45
ST9042 319 1100 Out of stock
Pan head screw M5x45
£0.41 £0.34

  38 Lock nut M5
Lock nut M5
ST9214 320 0700 In stock
Lock nut M5
£0.50 £0.42

  39 Spark plug Bosch WR 7 AC
Spark plug Bosch WR 7 AC
ST1107 400 7000 Out of stock
Spark plug Bosch WR 7 AC
£4.28 £3.57

  41 Spark plug boot
Spark plug boot
ST1108 405 1000 In stock
Spark plug boot
Was £8.52 £7.10 Special Price £2.39 £1.99

  42 Torsion spring
Torsion spring
ST0000 998 0603 Out of stock
Torsion spring
£1.50 £1.25
