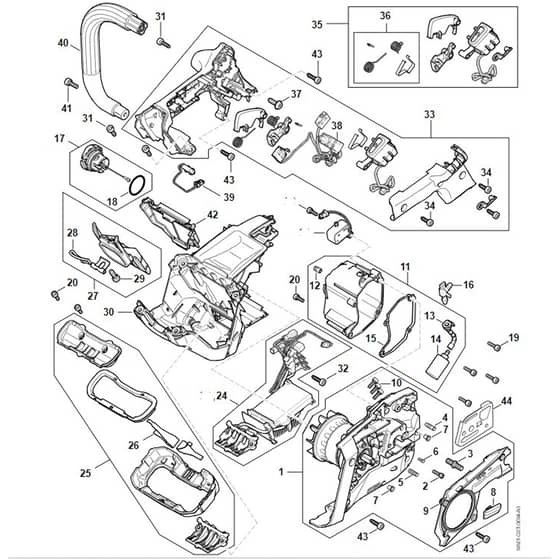

Stihl MSA220.0 T - Electric Motor - Electronic Module - Handle Housing - Parts Diagram

Name: Stihl MSA220.0 T - Electric Motor - Electronic Module - Handle Housing - Parts Diagram
SKU: msa220_0_t_electric_motor_handle_housing-group
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Stihl MSA220.0 T - Electric Motor - Electronic Module - Handle Housing - Parts Diagram

Description

Stihl MSA220.0 T - Electric Motor - Electronic Module - Handle Housing - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	STMA01 600 4900 Out of stock	Electric motor with housing (Contains 2 - 10)	£230.64 £192.20
2	ST1143 664 2402 Out of stock	Collar screw M5	£2.52 £2.10
4	ST1121 162 5200 Out of stock	Pin	£1.63 £1.36
5	ST1120 162 5200 Out of stock	Pin	£1.63 £1.36
6	ST0000 974 1200 Out of stock	Notched pin 2.6x8	£0.76 £0.63
7	ST9416 868 5631 Out of stock	Hollow rivet 5.5x0.5x6.8	£1.39 £1.16
8	ST1123 648 6600 In stock	Bumper strip	£2.05 £1.71
9	STMA01 021 1100 Out of stock	Cover	£4.32 £3.60
10	ST9022 313 0660 In stock	Spline screw IS-M4x12	£0.86 £0.72
11	STMA01 350 0301 Out of stock	Oil tank (Contains 12 - 15)	£30.36 £25.30
12	ST1128 640 9100 Out of stock	Valve	£4.91 £4.09
13	STMA01 647 9400 Out of stock	Hose	£6.48 £5.40
14	STMA01 640 3801 Out of stock	Pickup body	£4.32 £3.60
15	STMA01 669 0500 Out of stock	Gasket	£2.29 £1.91
16	ST1139 122 3900 Out of stock	Elbow connector	£3.83 £3.19
17	ST0000 350 0538 Out of stock	Filler cap (Contains 18)	£10.92 £9.10
18	ST9645 948 2470 Out of stock	O-ring 23x3	£0.68 £0.57
19	ST9022 313 0682 Out of stock	Spline screw IS-M4x16	£0.00 £0.00
24	STMA01 430 1403 Out of stock	Electronic module	£226.80 £189.00
25	STMA01 400 0601 Out of stock	Contact plate (Contains 26)	£17.40 £14.50
26	STMA01 791 3100 Out of stock	Spring	£2.29 £1.91
27	STMA01 790 5400 Out of stock	Bracket (Contains 28 + 29)	£8.64 £7.20
28	STMA01 352 5000 Out of stock	Loop	£6.48 £5.40
29	ST9074 478 4425 Out of stock	Pan head self-tapping screw IS-P6x19	£0.86 £0.72
30	STMA01 600 0800 Out of stock	Motor housing	£69.48 £57.90
31	ST9074 478 4130 Out of stock	Screw IS P5x16	£1.00 £0.83
33	STMA01 790 1001 Out of stock	Handle housing (Contains 34 - 38)	£99.96 £83.30
35	STMA01 007 1002 Out of stock	Trigger kit (Contains 36)	£86.88 £72.40
37	ST9074 478 4420 Out of stock	Pan head self-tapping screw IS-P6x18	£0.86 £0.72
38	STMA01 430 2200 Out of stock	Wiring harness	£26.04 £21.70
39	STMA01 430 0500 Out of stock	Switch	£4.32 £3.60
40	STMA01 791 1700 Out of stock	Handlebar	£26.04 £21.70
41	ST9022 341 0975 Out of stock	Spline screw IS-M5x14	£0.86 £0.72
42	STMA01 606 2000 Out of stock	Air strainer	£19.56 £16.30
44	STMA01 664 1000 Out of stock	Side plate	£2.29 £1.91
