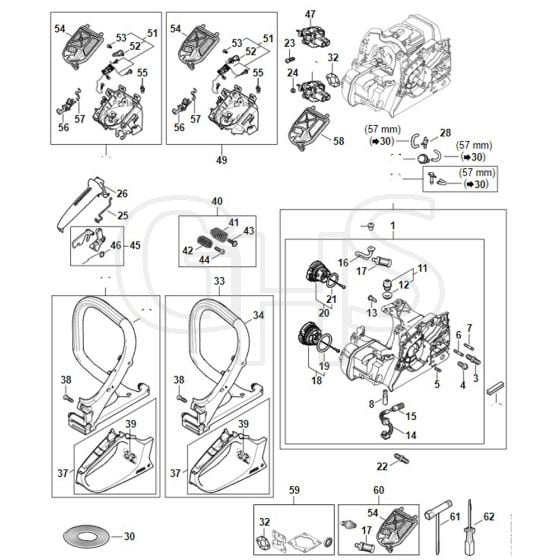

Stihl MS182 - Engine Housing - Air Filter - Av System - Handlebar - Parts Diagram

Stihl MS182 - Engine Housing - Air Filter - Av System - Handlebar - Parts Diagram
Stihl MS182 - Engine Housing - Air Filter - Av System - Handlebar - Parts Diagram

Description

Stihl MS182 - Engine Housing - Air Filter - Av System - Handlebar - Parts Diagram

Ref. Img. Part No. Details
  1 Engine housing (Contains 3 - 8 + 11 - 21) ST1148 020 3006
Engine housing (Contains 3 - 8 + 11 - 21)
Out of stock
£85.44 £71.20

  4 Collar screw ST1123 664 2402
Collar screw
Out of stock
£3.89 £3.24

  5 Pin ST1120 162 5200
Pin
Out of stock
£1.63 £1.36

  6 Pin ST1123 162 5200
Pin
Out of stock
£2.15 £1.79

  7 Pin ST1123 162 5205
Pin
Out of stock
£2.26 £1.88

  8 Oil pump 0.55 ST1123 640 3200
Oil pump 0.55
In stock
£30.46 £25.38

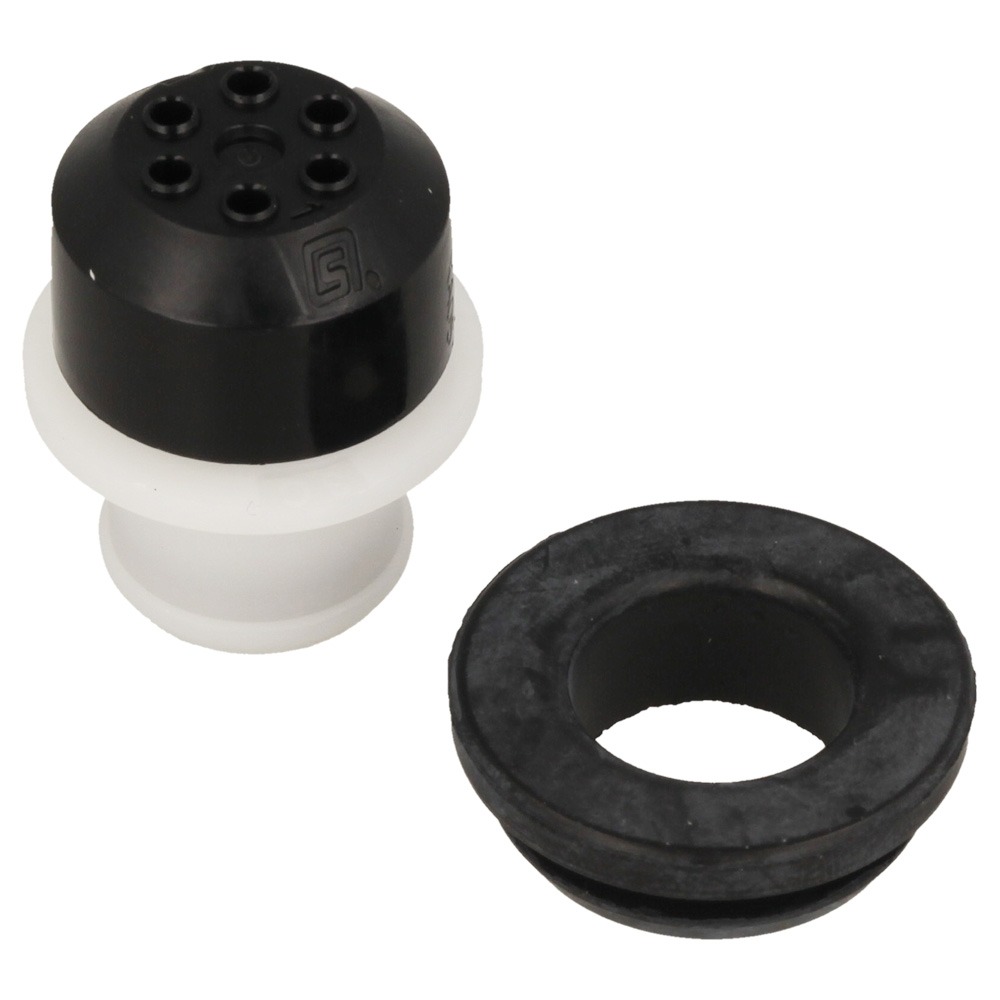

  11 Tank vent (Contains 12) ST1148 350 5801
Tank vent (Contains 12)
Out of stock
£10.49 £8.74

  12 Grommet ST4223 353 9201
Grommet
Out of stock
£1.63 £1.36

  13 Valve ST0747 313 6810
Valve
Out of stock
£4.28 £3.57

  14 Oil hose ST1148 647 4000
Oil hose
Out of stock
£5.45 £4.54

  15 Pickup body ST1123 640 3800
Pickup body
In stock
£4.72 £3.93

  16 Hose ST1148 358 7700
Hose
Out of stock
£5.93 £4.94

  17 Pickup body ST0000 350 3500
Pickup body
In stock
£6.26 £5.22

  18 Filler cap (Contains 19) ST0000 350 0564
Filler cap (Contains 19)
Out of stock
£11.26 £9.38

  19 O-ring N25x35-FPM75 ST9645 951 7735
O-ring N25x35-FPM75
Out of stock
£2.29 £1.91

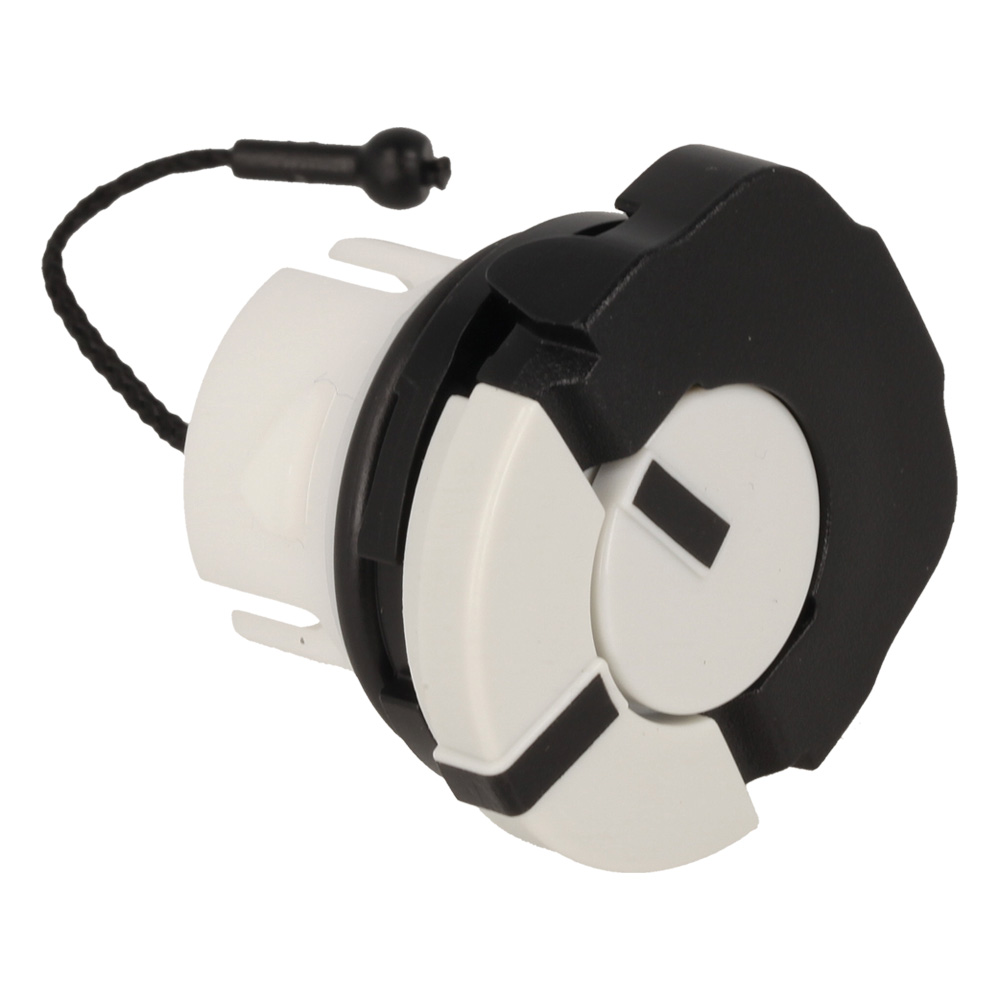

  20 Filler cap (Contains 21) ST0000 350 0529
Filler cap (Contains 21)
Out of stock
£10.92 £9.10

  21 O-ring 23x3 ST9645 948 2470
O-ring 23x3
Out of stock
£0.72 £0.60

  22 Collar screw ST1123 664 2400
Collar screw
In stock
£3.89 £3.24

  23 Pan head self-tapping screw IS-P5x20 ST9074 477 4135
Pan head self-tapping screw IS-P5x20
In stock
£0.95 £0.79

  24 Hexagon nut M5 ST9216 261 0700
Hexagon nut M5
In stock
£0.48 £0.40

  25 Throttle rod ST1148 182 1500
Throttle rod
Out of stock
£4.34 £3.62

  26 Handle housing ST1148 791 0600
Handle housing
Out of stock
£5.20 £4.33

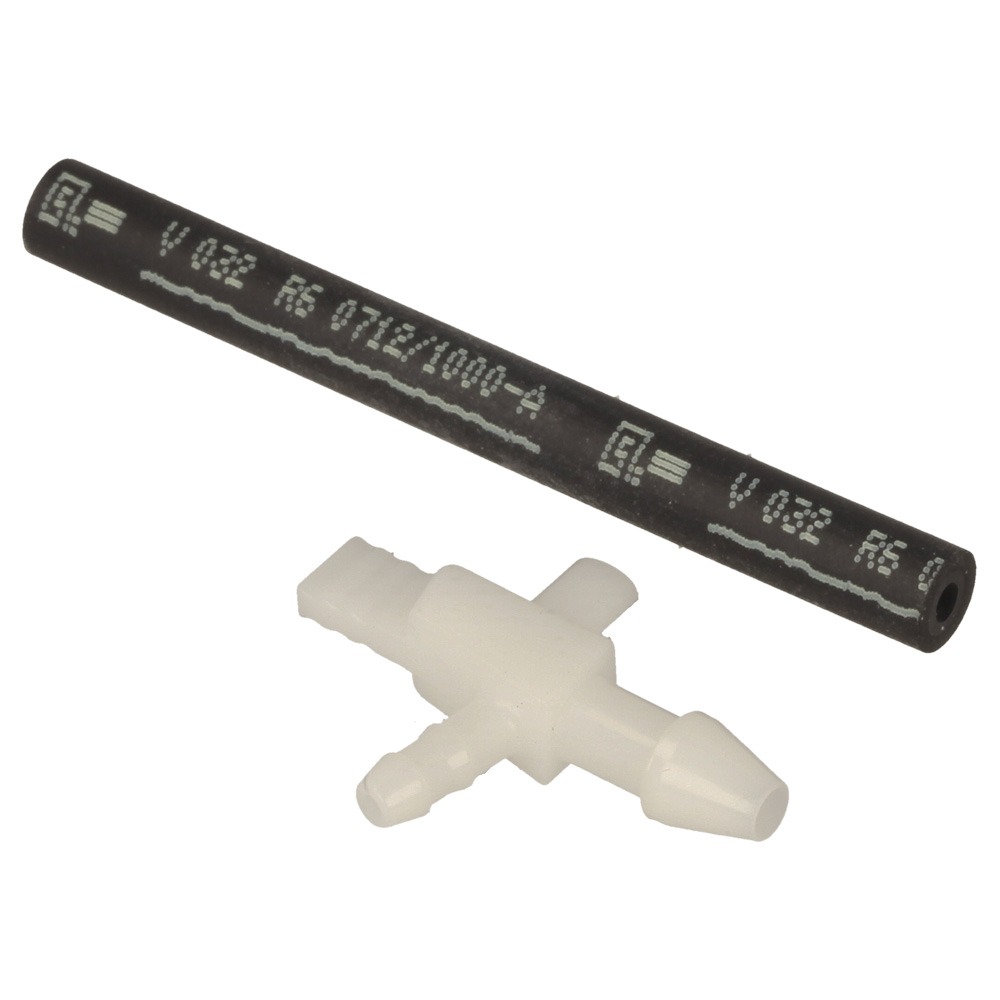

  28 Elbow connector ST1148 350 2800
Elbow connector
Out of stock
£3.22 £2.68

  30 Hose 2.2x5.4 mm x 1 m R5 ST0000 937 5006
Hose 2.2x5.4 mm x 1 m R5
In stock
£27.18 £22.65

  32 Gasket ST1148 129 0900
Gasket
Out of stock
£2.35 £1.96

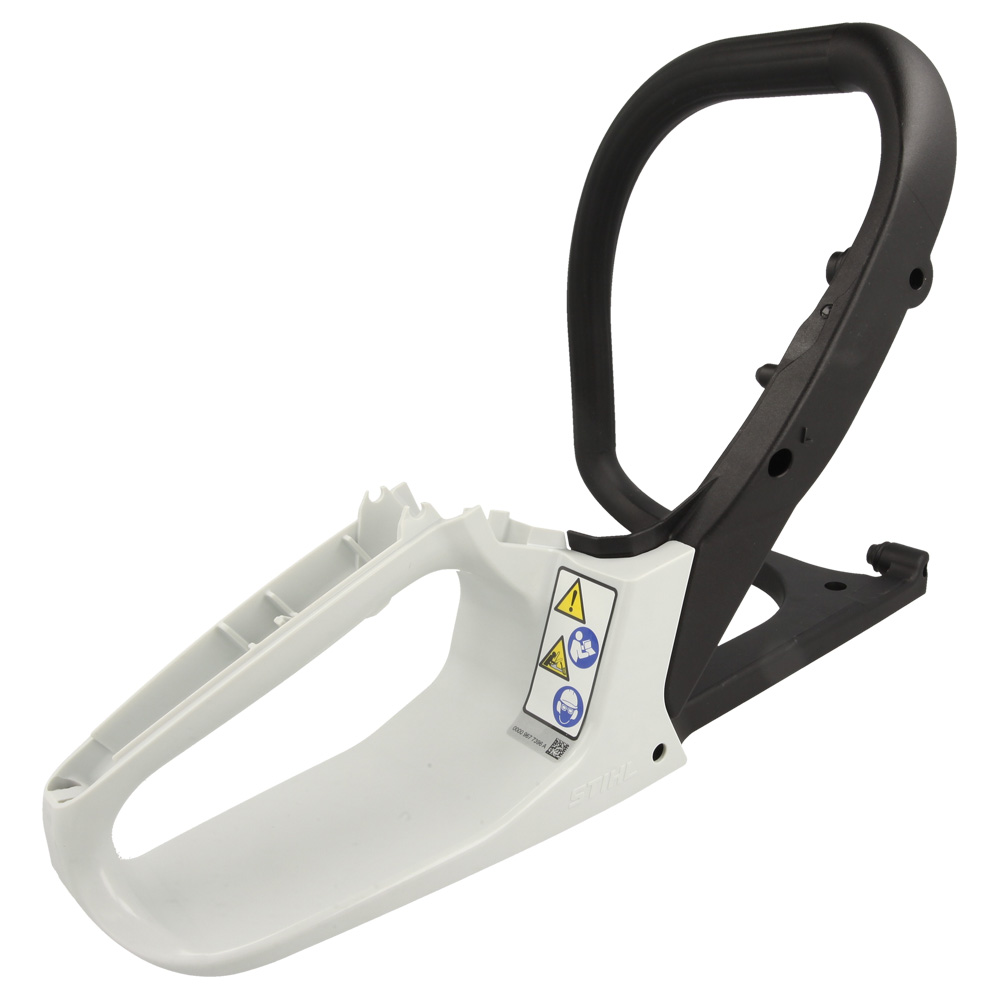

  33 Handle housing (Contains 34 + 37 - 39) ST1148 790 1000
Handle housing (Contains 34 + 37 - 39)
Out of stock
£38.90 £32.42

  34 Handlebar ST1148 791 1704
Handlebar
Out of stock
£44.74 £37.28

  37 Handle (Contains 39) ST1148 790 0300
Handle (Contains 39)
Out of stock
£27.31 £22.76

  38 Pan head self-tapping screw IS-P6x21.5 ST9074 478 4475
Pan head self-tapping screw IS-P6x21.5
In stock
£1.15 £0.96

  39 Warning pictogram ST0000 967 7396
Warning pictogram
Out of stock
£2.35 £1.96

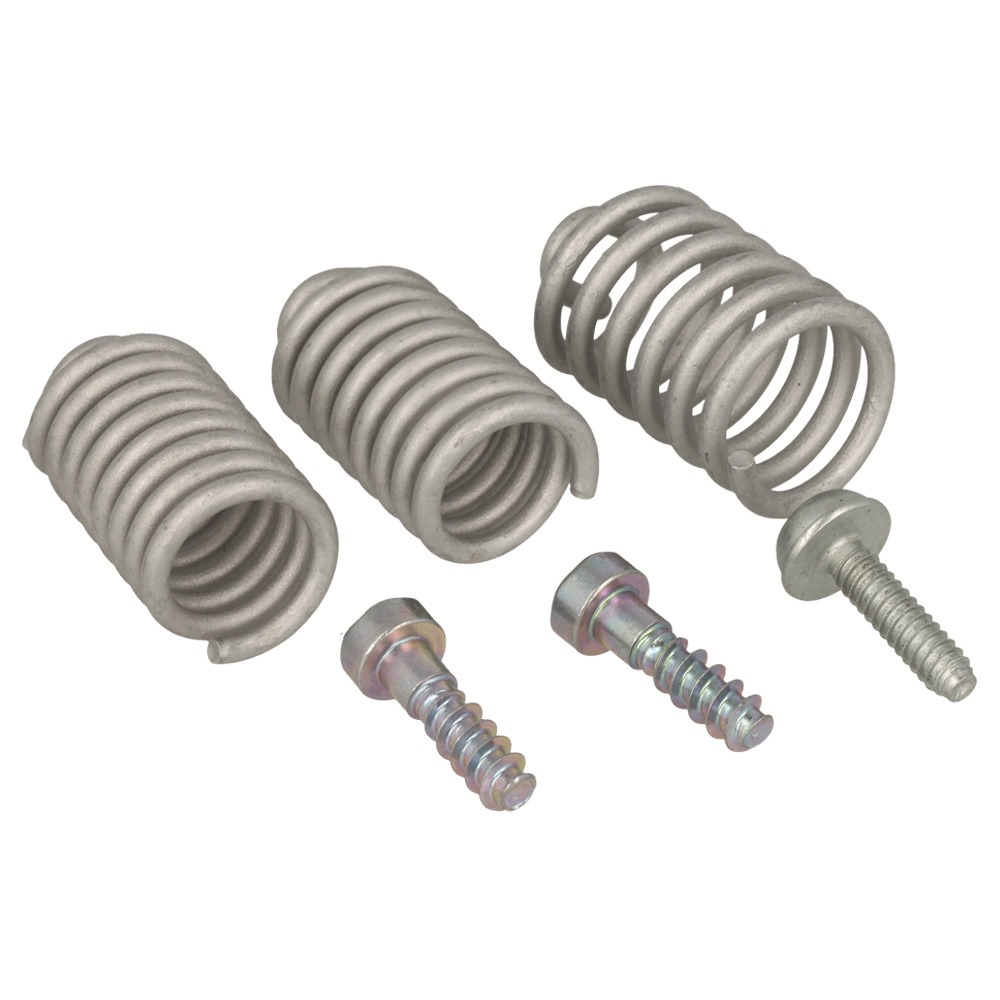

  40 AV-spring kit (Contains 41 - 44) ST1148 007 1000
AV-spring kit (Contains 41 - 44)
Out of stock
£16.79 £13.99

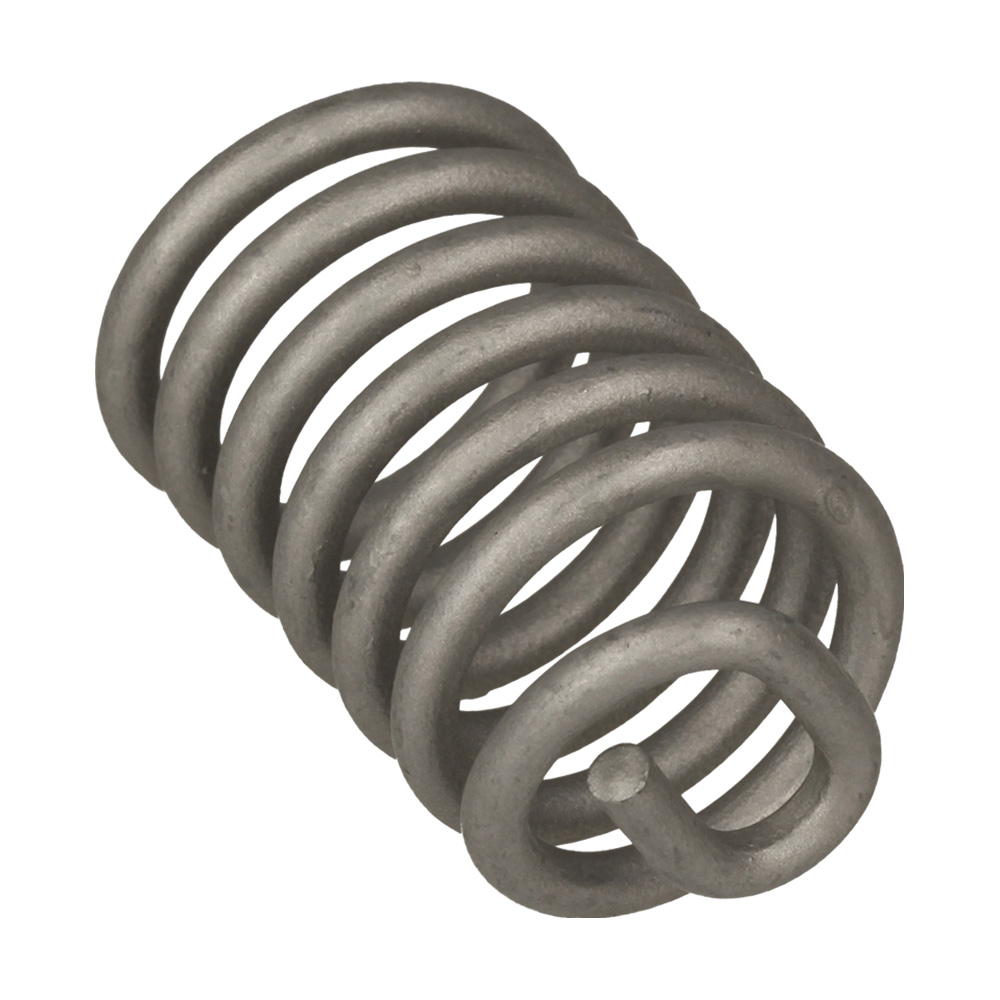

  41 Spring ST0000 791 3107
Spring
Out of stock
£3.08 £2.57

  42 Spring ST0000 791 3106
Spring
Out of stock
£2.98 £2.48

  43 Screw ST0000 951 1100
Screw
In stock
£1.68 £1.40

  45 Throttle trigger (Contains 46) ST1148 180 1500
Throttle trigger (Contains 46)
Out of stock
£6.70 £5.58

  46 Torsion spring ST1117 182 4500
Torsion spring
In stock
£1.45 £1.21

  47 Carburetor 1148/61 ST1148 120 0661
Carburetor 1148/61
Out of stock
£99.12 £82.60

  49 Filter housing (Contains 51 - 57) ST1148 140 2804
Filter housing (Contains 51 - 57)
Out of stock
£26.57 £22.14

  51 Wiring harness (Contains 52 + 53) ST1148 440 3001
Wiring harness (Contains 52 + 53)
Out of stock
£11.26 £9.38

  52 Lead retainer ST1148 448 1200
Lead retainer
Out of stock
£2.71 £2.26

  53 Screw IS P4x8 ST9074 477 2966
Screw IS P4x8
Out of stock
£0.86 £0.72

  54 Air filter ST1148 140 4404
Air filter
Out of stock
£8.53 £7.11

  55 Link ST1148 442 5800
Link
Out of stock
£1.24 £1.03

  56 Switch shaft ST1148 182 0900
Switch shaft
Out of stock
£6.70 £5.58

  57 Contact spring ST1148 442 1600
Contact spring
Out of stock
£1.61 £1.34

  59 Set of gaskets (Contains 32) ST1148 007 1600
Set of gaskets (Contains 32)
Out of stock
£27.70 £23.08

  60 Servicing kit 19 (Contains 17 + 54) ST1148 007 4101
Servicing kit 19 (Contains 17 + 54)
Out of stock
£17.72 £14.77

  61 Combination wrench ST0000 890 3400
Combination wrench
Out of stock
£10.06 £8.38

  62 Screwdriver ST0000 890 2300
Screwdriver
In stock
£2.17 £1.81


Description

Stihl MS182 - Engine Housing - Air Filter - Av System - Handlebar - Parts Diagram
