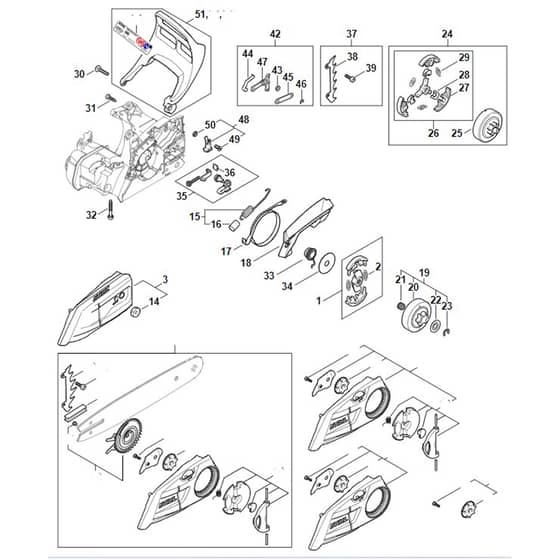

Stihl MS182 - Clutch - Chain Brake - Parts Diagram

Name: Stihl MS182 - Clutch - Chain Brake - Parts Diagram
SKU: ms182_clutch_chain_brake-group
Price: 0.40 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Stihl MS182 - Clutch - Chain Brake - Parts Diagram

Description

Stihl MS182 - Clutch - Chain Brake - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	ST1148 160 2000 Out of stock	Clutch (Contains 2)	£34.85 £29.04
2	ST0000 997 5524 Out of stock	Tension spring	£1.10 £0.92
3	ST1148 640 1704 Out of stock	Chain sprocket cover (Contains 14)	£23.24 £19.37
14	ST0000 955 0801 In stock	Hexagon nut M8	£2.22 £1.85
15	ST1148 160 5500 Out of stock	Tension spring (Contains 16)	£3.46 £2.88
16	ST1141 162 8001 Out of stock	Hose	£3.37 £2.81
17	ST1148 160 5400 Out of stock	Brake band	£7.30 £6.08
18	ST1148 021 1100 Out of stock	Cover	£6.30 £5.25
19	ST1148 640 2001 Out of stock	Chain sprocket 3/8"P 6 teeth (Contains 20 - 23)	£22.85 £19.04
20	ST1148 640 2000 Out of stock	Chain sprocket 3/8"P 6 teeth	£24.10 £20.08
21	ST9512 933 2260 In stock	Needle cage 10x13x10	£6.79 £5.66
22	ST0000 958 1022 In stock	Washer Ø 27 mm	£1.58 £1.32
23	ST9460 624 0801 In stock	E-clip 8x13	£0.48 £0.40
25	ST1123 640 2007 Out of stock	Chain sprocket 1/4" 8T (Contains 26 - 29)	£23.11 £19.26
26	ST1123 160 2050 Out of stock	Clutch	£38.21 £31.84
27	ST1129 162 0800 Out of stock	Clutch shoe	£5.36 £4.47
28	ST1127 162 3000 Out of stock	Retainer	£1.39 £1.16
29	ST0000 997 5515 In stock	Tension spring	£0.83 £0.69
30	ST9074 477 4139 Out of stock	Pan head self-tapping screw IS-P5x25	£1.03 £0.86
31	ST9074 477 4135 In stock	Pan head self-tapping screw IS-P5x20	£0.89 £0.74
32	ST9075 478 4195 Out of stock	Pan head self-tapping screw IS-D5.3x41	£1.19 £0.99
33	ST1123 640 7102 In stock	Worm gear	£7.94 £6.62
34	ST1148 162 1000 Out of stock	Cover washer	£2.98 £2.48
35	ST1148 660 0701 Out of stock	Chain tightener (Contains 36)	£11.86 £9.88
36	ST1123 664 1400 Out of stock	Thrust pad	£1.37 £1.14
37	ST1123 007 1006 Out of stock	Set Bumper spike (Contains 38 + 39)	£5.20 £4.33
38	ST1123 664 0500 Out of stock	Bumper spike	£4.00 £3.33
39	ST9075 478 4115 In stock	Pan head self-tapping screw IS-D5x16	£0.89 £0.74
42	ST1148 007 1001 Out of stock	set of chain brake parts (Contains 43 - 47)	£10.75 £8.96
43	ST0000 958 0521 Out of stock	Washer	£1.12 £0.93
44	ST1148 162 7800 Out of stock	Flat spring	£1.37 £1.14
45	ST1123 162 5800 In stock	Strap	Was £1.72 £1.43 Special Price £0.96 £0.80
46	ST9460 624 0400 In stock	E-clip 4	£0.48 £0.40
47	ST1121 160 5000 Out of stock	Lever	£10.25 £8.54
48	ST1148 650 7700 Out of stock	Chain catcher (Contains 49 + 50)	£3.22 £2.68
49	ST9062 319 1270 Out of stock	Countersunk screw M6x14	£0.91 £0.76
50	ST9214 320 0900 Out of stock	Lock nut M6	£0.48 £0.40
51	ST1148 792 4900 Out of stock	Hand guard	£34.21 £28.51
