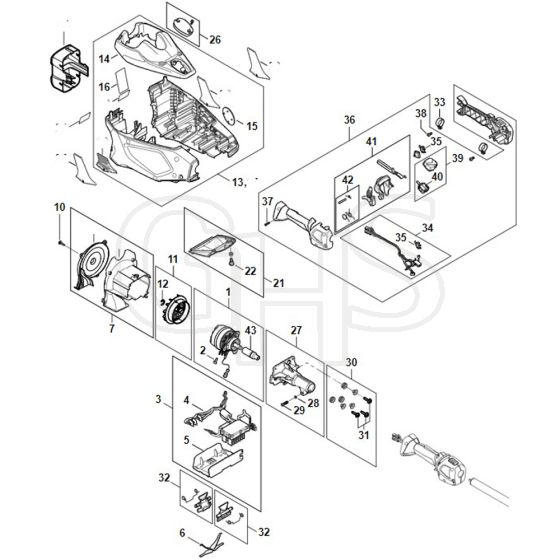

Stihl KMA135 R - Electric Motor, Motor Housing, Control Handle - Parts Diagram

Name: Stihl KMA135 R - Electric Motor, Motor Housing, Control Handle - Parts Diagram
SKU: kma135_r_electric_motor_motor_housing_control_handle-group
Price: 0.40 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Stihl KMA135 R - Electric Motor, Motor Housing, Control Handle - Parts Diagram

Description

Stihl KMA135 R - Electric Motor, Motor Housing, Control Handle - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	STFA01 600 0203 Out of stock	Electric motor (Contains 2 + 43)	£190.58 £158.82
2	ST9022 313 0660 In stock	Spline screw IS-M4x12	£0.78 £0.65
3	STFA02 430 1402 Out of stock	Electronic module (Contains 45416)	£196.94 £164.12
4	STFA02 430 1400 Out of stock	Electronic module	£186.35 £155.29
5	STFA01 404 0800 Out of stock	Contact plate	£19.44 £16.20
6	STMA01 791 3100 Out of stock	Spring	£5.52 £4.60
7	STFA01 820 8100 Out of stock	Spiral housing (Contains 45543)	£24.96 £20.80
10	ST9074 477 3025 Out of stock	Pan head self-tapping screw IS-P4x16	£0.86 £0.72
11	STFA01 600 3200 Out of stock	Fan wheel (Contains 12)	£12.88 £10.73
12	ST9460 624 0800 Out of stock	E-clip 8	£0.48 £0.40
13	STFA02 600 0800 Out of stock	Motor housing (Contains 14 - 16)	£150.35 £125.29
14	STFA01 084 0900 Out of stock	Shroud	£30.72 £25.60
15	STFA02 967 1500 Out of stock	Model plate KMA 135	£8.04 £6.70
16	STFA02 967 7200 Out of stock	Warning pictogram	£5.52 £4.60
21	STFA01 080 1900 Out of stock	Filter (Contains 22)	£21.72 £18.10
22	ST9022 319 1028 In stock	Screw IS-M5x14	£0.74 £0.62
26	STFA01 820 8000 Out of stock	Cover	£10.49 £8.74
27	STFA01 600 3401 Out of stock	Flange (Contains 28 + 29)	£46.58 £38.82
28	ST9291 021 0140 In stock	Washer 6.4	£0.48 £0.40
29	ST9075 478 4720 Out of stock	Pan head self-tapping screw IS-D6x35	£1.19 £0.99
30	STFA01 007 1000 Out of stock	Screw kit (Contains 31)	£17.16 £14.30
31	ST0000 951 1100 In stock	Screw	£1.51 £1.26
32	ST4851 430 9800 Out of stock	Trigger interlock	£5.21 £4.34
33	STFA01 790 4700 Out of stock	Clamp	£8.04 £6.70
34	STFA01 430 2220 Out of stock	Wiring harness (Contains 35)	£26.88 £22.40
35	ST1250 430 0500 Out of stock	Switch	£3.08 £2.57

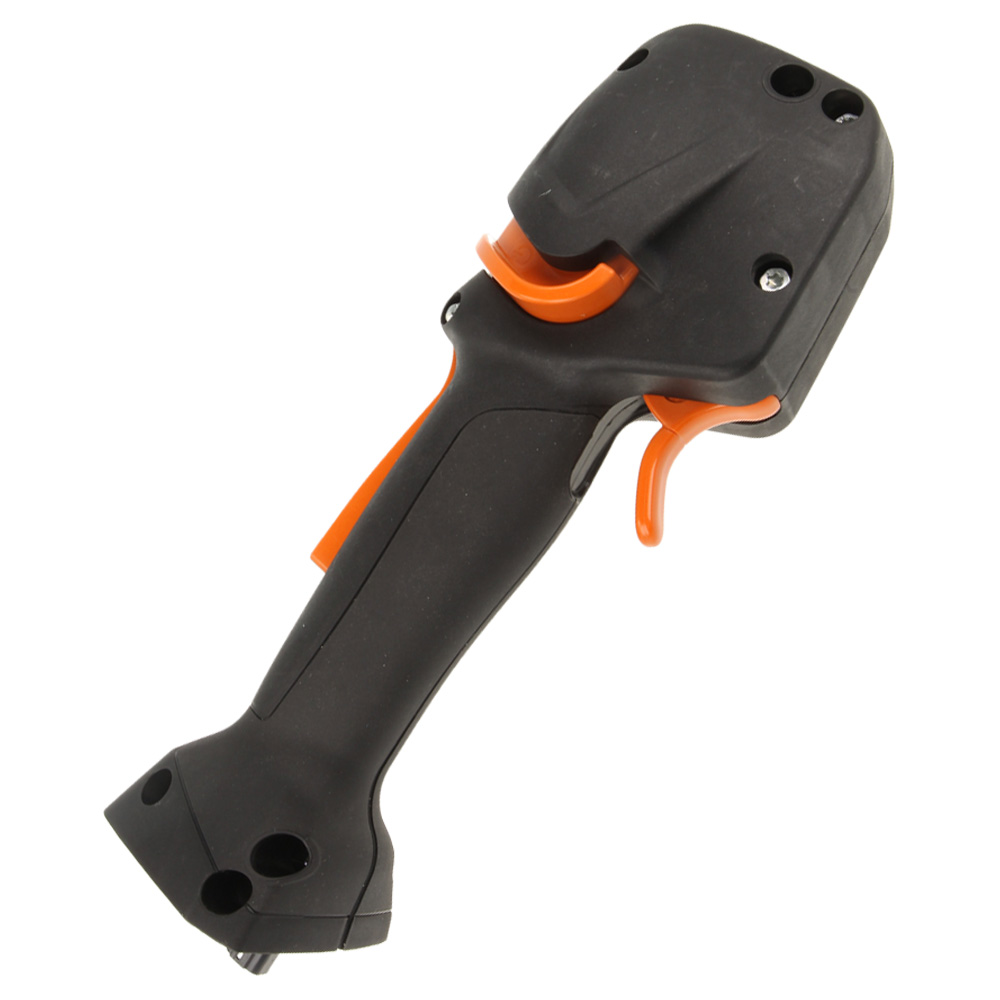

36	STFA01 790 1320 Out of stock	Control handle (Contains 33 - 35 + 37 - 42)	£118.58 £98.82
37	ST9074 478 3025 Out of stock	Pan head screw IS P4x16	£0.74 £0.62
38	ST9022 341 0960 In stock	Spline screw IS-M5x12	£0.74 £0.62
39	STFA01 430 0501 Out of stock	Switch (Contains 40)	£21.72 £18.10
40	ST4867 430 0501 Out of stock	Switch	£17.16 £14.30
41	STFA01 007 3820 Out of stock	Control lever kit (Contains 42)	£21.72 £18.10
42	STFA01 007 1320 Out of stock	Set of mounting hardware	£8.04 £6.70
43	STFA01 764 4200 Out of stock	Carrier	£21.72 £18.10
