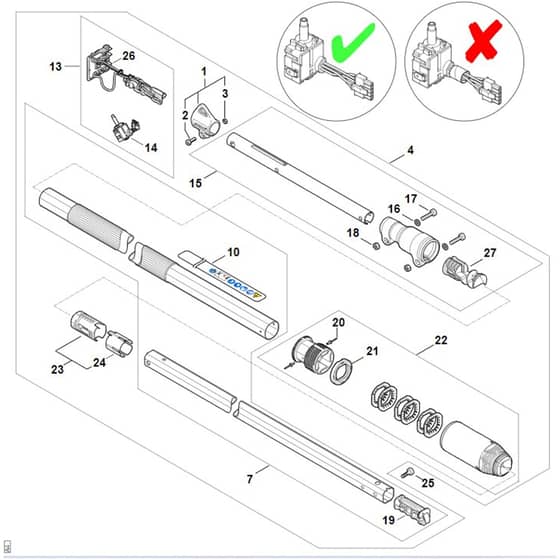

Stihl HTA86 - Drive Tube Assembly - Parts Diagram

Description

	Part No.	Details
1	ST0000 790 8801 Out of stock	Loop (Contains 45353)	£11.05 £9.21
2	ST9022 341 0980 In stock	Pan head screw IS M5x16	£0.86 £0.72
3	ST9210 261 0700 Out of stock	Hexagon nut M5	£0.48 £0.40
4	STLA03 710 7103 Out of stock	Drive tube assembly (Contains 1 - 3 + 7 + 10 + 13 - 24 + 26 + 27)	£563.29 £469.41
7	STLA03 710 7111 Out of stock	Drive tube assembly (Contains 10 + 19)	£133.42 £111.18
10	ST4857 967 7200 Out of stock	Warning pictogram HTA	£2.35 £1.96
13	STLA03 440 3003 Out of stock	Wiring harness (Contains 14 + 26)	£144.00 £120.00
14	ST4859 430 0501 Out of stock	Switch	£17.16 £14.30
15	STLA03 820 5200 Out of stock	Tube with clamp (Contains 16 - 18 + 27)	£69.89 £58.24
16	ST9294 021 0140 Out of stock	Washer 6.4	£0.48 £0.40
17	ST9022 341 1370 Out of stock	Pan head screw IS M6x30	£1.19 £0.99
18	ST9210 319 0900 In stock	Hexagon nut M6	£0.46 £0.38
19	STLA03 793 7700 Out of stock	Plug	£8.04 £6.70
20	ST9440 003 1851 Out of stock	Blind rivet 3x5-ST/ST	£0.83 £0.69
21	ST4182 716 1920 Out of stock	Sealing ring	£0.00 £0.00
22	STLA03 740 3700 Out of stock	Clamping piece (Contains 20 + 21)	£38.28 £31.90
23	STLA03 710 7300 Out of stock	Sleeve (Contains 24)	£12.88 £10.73
24	ST4182 711 9822 Out of stock	Spacer ring	£10.49 £8.74
25	ST9074 478 4435 In stock	Pan head self-tapping screw IS-P6x19	£0.86 £0.72
26	ST4860 404 0800 Out of stock	Contact plate	£5.47 £4.56
